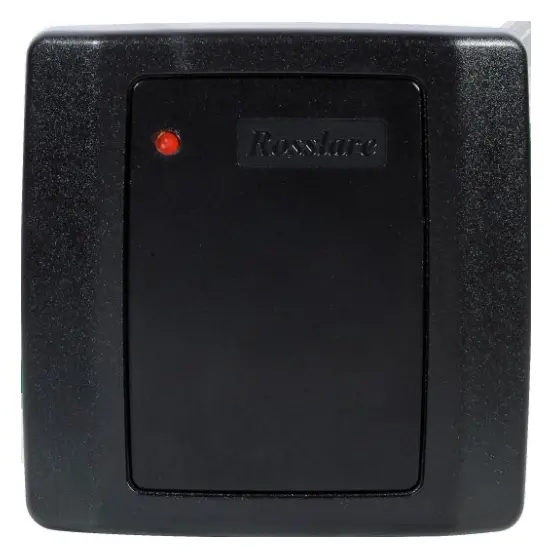

Rosslare AY-M26 MIFARE Classic EV1 Sector Reader Kart Okuyucu

ModelAY-M26

Rosslare AY-M26 kart okuyucu: Advanced, secure, multi-application functionality for intelligent installations contactless reader, ideal for locations that wish to utilize electronic wallets combined with access applications. made of a rigid, UV resistant poly- for outdoor use., Easy to dep.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Advanced, secure, multi-application functionality for intelligent installations contactless reader, ideal for locations that wish to utilize electronic wallets combined with access applications. made of a rigid, UV resis
Easy to deploy in the field with the configuration card (Master card) for secure sector reading of data from the sectors
Configurable multi-output format, supports multiple formats including Wiegand 26-bit
Compatible with CP-R25 or CP-R26 USB Desktop Card Programmers
PC software for Master and User Card configuration (AS-B01)
® Reads MIFARE Classic EV1 ISO14443 Type A, standard cards
Dedicated LED and buzzer control inputs
Optical tamper sensor for case and wall tamper detection

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 9 satır

Çalışma Gerilimi Aralığı	6.5–16 VDC
Bekleme Akımı	110 mA
Maksimum Giriş Akımı	165 mA
Tamper Çıkışı	Open collector, active low, max sink current 30 mA
Girişler	Programmable LED control/buzzer control input, N.O., Dry Contact
Indicators	Tri-colored LED indicator
Çıkış Formatı	Wiegand 26-Bit, Clock & Data, Wiegand 32-Bit, Wiegand 34-Bit, Wiegand 40-Bit
Built-In Proximity Reader	Operating Frequency: 13.56 MHz MIFARE Classic EV1 Compatible ISO-14443A-3
Max. Proximity Read Range	70 mm (2.8 in.)

Çevresel Özellikler 3 satır

Kullanım Ortamı	Water resistant, suitable for outdoor use (meets IP65)
Çalışma Sıcaklığı	-31°C to 63°C (-25°F to 145°F)
Çalışma Nemi	0% to 95% (non-condensing)

Fiziksel Özellikler 2 satır

Boyutlar (Y x G x D)	89 x 89 x 15 mm (3.5 x 3.5 x 0.6 in.)
Ağırlık	116 g (0.3 lb)

Genel 2 satır

Sistem Bileşenleri	The Read-Sector Readers are compatible with Rosslare’s CP-R25 & CP-R26 USB Desktop card programmer and its associated AS-B01 Card Programming Software. The readers are compatible with a variety of Rosslare's controllers as well as with many third party systems
Garanti	5-year limited product warranty

Genel bakış

Rosslare AY-M26 kullanım alanları ve özellikleri.

The sector reader is a fully-featured smartcard contactless reader, ideal for highly secured facilities, as well as other locations that wish to utilize smartcard-based applications such as electronic wallets combined with access control or intrusion, time & attendance applications. The AY-M26 is fully potted, sealed, and made of a rigid, UV resistant poly- carbonate, which makes it highly suitable for outdoor use.

Programming of the reader is performed by presenting a programmable Configuration Card, created using Rosslare’s Smartcard programmers (CP-R25 or CP-R26).

A reader scans the information stored in a specific protected sector within a MIFARE Classic ® EV1 smartcard, sends the data to a connected access control system, and allows the integrator to set secret keys for different sectors within the card.

This establishes a unique network with proprietary cards, where no card can possibly have the same ID on the same location and with the same reader key.

The readers meet IP65 and are suitable for both indoor and outdoor use. The 10-wire interface allows easy connection of the unit to a control panel and includes LED control and buzzer control.

These products can be customized for most major projects.

Main Features

Advanced, secure, multi-application functionality for intelligent installations contactless reader, ideal for locations that wish to utilize electronic wallets combined with access applications. made of a rigid, UV resistant poly- for outdoor use.
Easy to deploy in the field with the configuration card (Master card) for secure sector reading of data from the sectors
Configurable multi-output format, supports multiple formats including Wiegand 26-bit
Compatible with CP-R25 or CP-R26 USB Desktop Card Programmers
PC software for Master and User Card configuration (AS-B01)
® Reads MIFARE Classic EV1 ISO14443 Type A, standard cards
Dedicated LED and buzzer control inputs
Optical tamper sensor for case and wall tamper detection
® Fully compatible with MIFARE Classic EV1 1K and 4K
Reads card’s serial number with MIFARE Classic ® EV1 Ultralight and MIFARE ® DESFire ®

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

Advanced, secure, multi-application functionality for intelligent installations contactless reader, ideal for locations that wish to utilize electronic wallets combined with access applications. made of a rigid, UV resis
Easy to deploy in the field with the configuration card (Master card) for secure sector reading of data from the sectors
Configurable multi-output format, supports multiple formats including Wiegand 26-bit
Compatible with CP-R25 or CP-R26 USB Desktop Card Programmers
PC software for Master and User Card configuration (AS-B01)
® Reads MIFARE Classic EV1 ISO14443 Type A, standard cards
Dedicated LED and buzzer control inputs
Optical tamper sensor for case and wall tamper detection
® Fully compatible with MIFARE Classic EV1 1K and 4K
Reads card’s serial number with MIFARE Classic ® EV1 Ultralight and MIFARE ® DESFire ®

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AY-M26

Sık sorulanlar

AY-M26 hakkında kısa yanıtlar.

AY-M26 fiyatı ne kadar?

AY-M26 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
