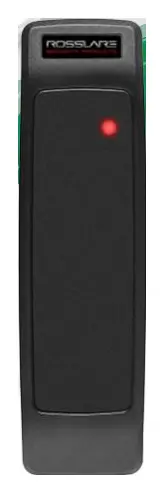

Rosslare AY-H5B MIFARE Classic EV1 Contactless 13.56 MHz Smart Card Reader Kart Okuyucu

ModelAY-H5B

Rosslare AY-H5B kart okuyucu: Incorporates the ISO-14443A (MIFARE Classic EV1) ID format protocol, Read range of up to 65 mm (2.6 in.) depending on the card type, Supports standard Wiegand 26-40 Bit, Made of tough polycarbonate plastic for improved performance in all indoor weather conditi.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Incorporates the ISO-14443A (MIFARE Classic EV1) ID format protocol
Read range of up to 65 mm (2.6 in.) depending on the card type
Supports standard Wiegand 26-40 Bit
Made of tough polycarbonate plastic for improved performance in all indoor weather conditions
Developed for cost-effective market
Bi-colored LED and LED control input
Internal buzzer

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 2 satır

Çalışma Gerilimi Aralığı	5–16 VDC from a regulated power supply
Giriş Akımı	Standby: 45 mA @ 12 VDC Max: 100 mA @ 12 VDC

Çalışma Özellikleri 5 satır

Indicators	Bi-colored LED indicator
Girişler	Input for LED control
Çıkış Formatı	Selectable transmission formats: Wiegand 26-Bit w/site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data

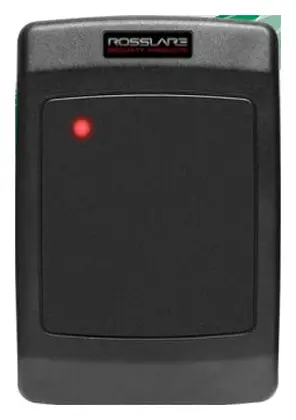

Maksimum Okuma Mesafesi	AY-M5B: 6.5 cm (2.6 in.) AY-H5B/AY-L5B: 7 cm (2.8 in.) AY-K5B: 6 cm (2.4 in.)
Built-In Proximity Reader	Operating frequency: 13.56 MHz Compatible cards: MIFARE Classic EV1 compatible ISO-14443A

Çevresel Özellikler 3 satır

Kullanım Ortamı	Suitable for Indoor Use, IP-54
Çalışma Sıcaklığı	-31°C to 63°C (-25°F to 145°F)
Çalışma Nemi	0% to 95% (non-condensing)

Fiziksel Özellikler 3 satır

Boyutlar (Y x G x D)	89 x 89 x 15 mm 110 x 75 x 15 mm 145 x 43 x 20 mm 80 x 40 x 12.8 mm (3.5 x 3.5 x 0.6 in.) (4.3 x 3.0 x 0.6 in.) (5.7 x 1.7 x 0.8 in.) (3.2 x 1.6 x 0.5 in.)
Ağırlık	75.0 g (2.6 oz.) 74.8 g (2.6 oz) 7O.6 g (2.5 oz) 34.3 g (1.2 oz) The AY-x5B series is compatible with a variety of Rosslare's controllers, as well as with many third-party systems, and is compatible with Rosslare's
Sistem Bileşenleri	MIFARE Classic EV1 credentials, and third party MIFARE Classic EV1 credentials.

Genel 1 satır

Garanti	2-Year Limited Product Warranty

Genel bakış

Rosslare AY-H5B kullanım alanları ve özellikleri.

The AY-x5B series is a 13.56 MHz reader capable of reading ID cards, tags, and credentials based on the MIFARE Classic EV1 contactless card technology. It reads the unique ID (UID) of the credential and transfers it via Wiegand 26-40 Bit data to the access control panel. The AY-x5B series comes with a wall mounting screw kit and top cover, and the board is coated with conformal coating to protect it from the elements and provide a long service life. It is a very simple, reliable, and cost-effective way to upgrade your system to the smart card standard.

This AY-x5B series is a high quality MIFARE Classic® EV1 credential reader for indoor applications. An affordably priced indoor reader for business and commercial applications, this reader delivers UID to Wiegand 26-40 Bit operation.

The reader reads MIFARE Classic EV1 ID format protocol via the 13.56 MHz cards and tags, with a variety of form factors.

The reader is ideal for organizations with many readers, where cost is an important factor of the project.

The reader features a 5-wire cable output, which can be wired (+) and (-) and D0, D1 interface, and green LED control to almost any access control panel.

Made of tough polycarbonate UV plastic the durable reader has conformal board coating to provide additional protection from humidity and moisture, for a long service lifetime.

Main Features

Incorporates the ISO-14443A (MIFARE Classic EV1) ID format protocol
Read range of up to 65 mm (2.6 in.) depending on the card type
Supports standard Wiegand 26-40 Bit
Made of tough polycarbonate plastic for improved performance in all indoor weather conditions
Developed for cost-effective market
Bi-colored LED and LED control input
Internal buzzer

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AY-H5B

Sık sorulanlar

AY-H5B hakkında kısa yanıtlar.

AY-H5B fiyatı ne kadar?

AY-H5B için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
