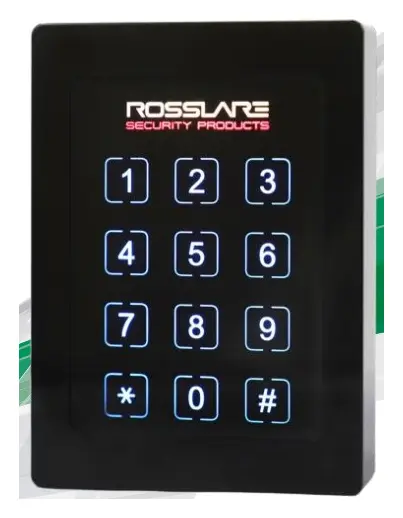

Rosslare AY-T6350 Kart Okuyucu

The AT-T6350 reader is a MIFARE Classic EV1 13.65MHz Smartcard and PIN code reader for access control systems. It features, LED Control, Back Tamper, Capacitive Touch Keys and a new LOGO area that lets OEM order custom logos. AY-T6350 is an advanced model with multi-format outputs for compatibility with wide range of host access controllers. It has a local menu to program facility code as well as Card & PIN credential modes. This fully-potted suitable for all weather use.

The AY-T6350 is the latest addition to Rosslare’s family of MIFARE Classic EV1 card readers.

It can read MIFARE Classic EV1 card serial number (CSN) from all ISO 14443A-3 type cards.

AY-T6350 has locally programmable modes for a 1- to 8-digit PIN code, with a high-security option of “PIN plus card”, as well as a 3-digit facility code. Even with the unit’s strong features, this reader is user- friendly and easy to install with an additional level of security in the form of a password-protected menu.

This reader supports Wiegand 26/32/34/40-Bit or Clock & Data output protocols. It has a 6-wire shielded cable interface to the host controller for power, data, LED/buzzer control input, and tamper status.

Main Features

• Incorporates the MIFARE Classic and MIFARE Ultralight ID Format Protocol
• Read range of up to 70 mm (2.8 in.)
• Backlit 3x4 keypad
• 8 programmable Proximity Card transmission formats, Wiegand 26- to 40-Bit or Clock & Data Keys features, LED Control, Back Tamper, area that lets OEM order custom logos. multi-format outputs for compatibility It has a local menu to program modes. This fully-potted suitable
• Smooth, attractive, and elegant industrial design
• Selectable LED control or buzzer control functions
• Made from tough polycarbonate plastic for improved performance in all weather conditions
• Optical tamper sensor for cover and wall tamper detection
• 8 programmable PIN transmission formats for data and credential entry options
• Card + PIN mode for higher security
• Door bell key feature (from “*” key when interfaced with Rosslare controllers)
• Weather-resistant with epoxy potting
• One tri-colored LED and integral sounder for programming and operation
• Programmable facility code
• Installation kit includes template label, security screw, and tool
• 60 cm (23.6 in.) 6-wire interface cable

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• Incorporates the MIFARE Classic and MIFARE Ultralight ID Format Protocol
• Read range of up to 70 mm (2.8 in.)
• Backlit 3x4 keypad
• 8 programmable Proximity Card transmission formats, Wiegand 26- to 40-Bit or Clock & Data Keys features, LED Control, Back Tamper, area that lets OEM order custom logos. multi-format outputs for compatibility It has a lo
• Smooth, attractive, and elegant industrial design
• Selectable LED control or buzzer control functions
• Made from tough polycarbonate plastic for improved performance in all weather conditions
• Optical tamper sensor for cover and wall tamper detection
• 8 programmable PIN transmission formats for data and credential entry options
• Card + PIN mode for higher security
• Door bell key feature (from “*” key when interfaced with Rosslare controllers)
• Weather-resistant with epoxy potting
• One tri-colored LED and integral sounder for programming and operation
• Programmable facility code
• Installation kit includes template label, security screw, and tool
