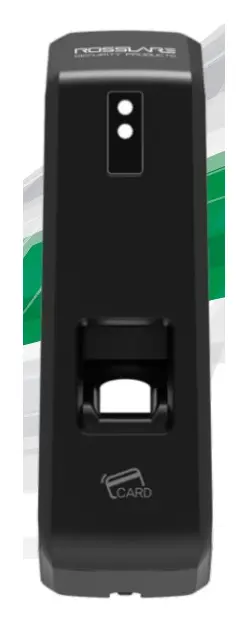

Rosslare AY-B9120BT Professional Fingerprint Biometric Reader Parmak İzi Okuyucu

This professional-grade fingerprint reader has a high-speed optical sensor with a capacity of 20,000 templates featuring powerful algorithms with liveness check and encrypted data storage. AY-B9120BT has a built-in 125 kHz EM RFID card reader and features an integrated Rosslare BLE-ID™ reader. It has RS-485, TCP/IP, and Wiegand 26- or 34-Bit connectivity. The terminal can be set up easily using the AxTraxNG Client software. Alternatively, it is compatible with Rosslare’s standalone RosslareBio 9000 management software that is perfect for interfacing with existing third-party systems.

The AY-B9120BT networked fingerprint reader has a built-in EM (125 kHz ASK) RFID card reader with a capacity for 20,000 fingerprint credential templates with liveness check and high-speed operation. A smartphone interface is built-in with a Bluetooth 4.0 system to read Rosslare BLE-ID™ credentials and work with Rosslare BLE-Admin™ configuration apps for iOS and Android. Up to 2000 terminals may be managed by our AxTraxNG™ version 27.7.x.x and above, and by RosslareBio9000 Client/Server management suite for Windows OS. It supports up to 16 PC clients for enrollment and template distribution, which is ideal for networked fingerprint system operation and deployment. This product features the latest design and engineering to achieve a best-in-class solution when you need “Security that lasts”.

Main Features

• Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing
• Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory
• Built-in output relay for controlling a local device EM 20,000 Templates Reader AY-B9120BT Encrypted Memory high-speed optical sensor with a capacity of with liveness check and encrypted data RFID card reader and features an integrated and Wiegand 26- or 34-Bit connectivity. The Client software. Alternatively, it is 9000 management software that is perfect
• High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second)
• Built-in TCP/IP, RS-485, and Wiegand output connectivity
• Non-volatile event log of up to 100,000 entries
• IP65 rated for indoor and outdoor use
• Support for Rosslare BLE-IDTM smartphone credentials (both iOS and Android)
• Wide thermal operating range (-20°C to 60°C)
• Built-in tamper and buzzer
• Modern design that blends into almost any architectural challenge

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing
• Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory
• Built-in output relay for controlling a local device EM 20,000 Templates Reader AY-B9120BT Encrypted Memory high-speed optical sensor with a capacity of with liveness check and encrypted data RFID card reader and feature
• High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second)
• Built-in TCP/IP, RS-485, and Wiegand output connectivity
• Non-volatile event log of up to 100,000 entries
• IP65 rated for indoor and outdoor use
• Support for Rosslare BLE-IDTM smartphone credentials (both iOS and Android)
• Wide thermal operating range (-20°C to 60°C)
• Built-in tamper and buzzer
• Modern design that blends into almost any architectural challenge
