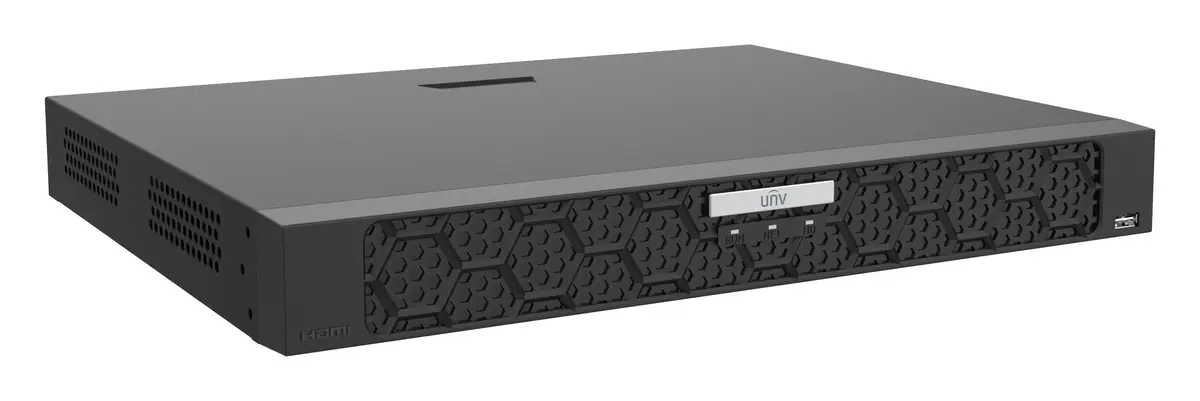

Uniview NVR502-32E-IX-G 32 Kanal 2 HDD NVR Kayıt Cihazı — görsel 3

1 / 3

NVR Kayıt Cihazı Prime

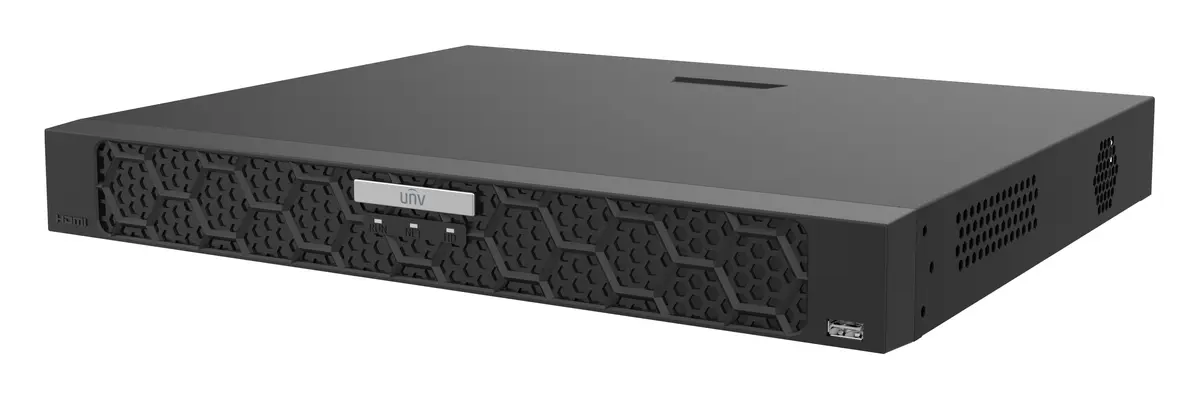

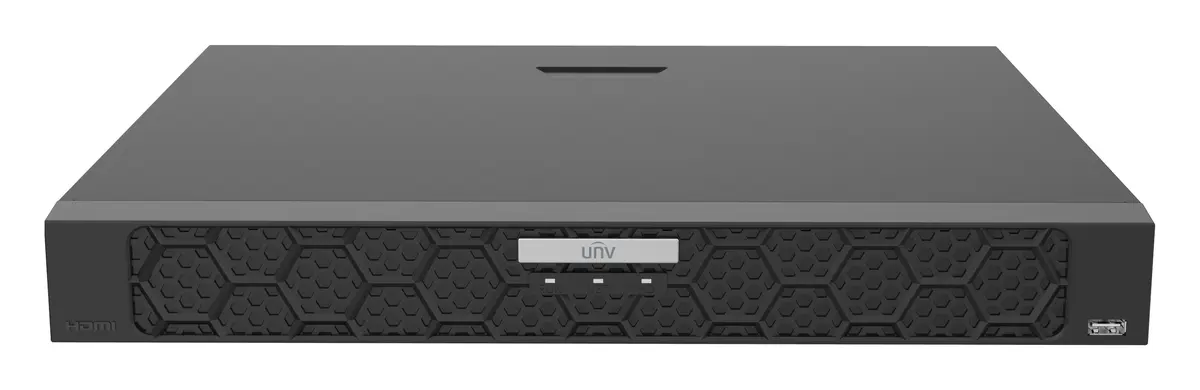

Uniview NVR502-32E-IX-G 32 Kanal 2 HDD NVR Kayıt Cihazı

ModelNVR502-32E-IX-G

Uniview NVR502-32E-IX-G, 32 kanala kadar kamera bağlanabilen bir NVR kayıt cihazıdır. 2 adet SATA disk yuvasıyla kayıt süresi ihtiyaca göre ölçeklenebilir. 32 MP çözünürlüğe kadar kamera kaydını destekler.

Kanal sayısı: 32 kanal
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Support Ultra H.265/H.265/H.264 video formats
Support 32-channel input
Support 2-ch HDMI, 2-ch VGA. HDMI up to 4K (3840x2160) resolution
Support HDMI and VGA independent output
Support up to 16 Megapixels resolution recording
Support ANR technology to enhance the storage reliability when the network is disconnected
Support SeekFree function: up to 16-ch with 3rd party IPC, up to 32-ch with UNV SIP/UMD IPC
Support external USB keyboards

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 3 satır

Model	NVR502-32E-IX-G
Seri	Prime
Ürün Tanımı (Üretici)	2 HDDs 32-Ch Network Video Recorder

Kod Çözme 4 satır

Kod Çözme Formatı	Ultra 265, H.265, H.264
Kod Çözme Kapasitesi	Smart Off:; H265/H264: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30; Smart On:; H265/H264: 1 x 32MP@30, 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 5 x 6MP@30, 12 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
Decoding Capability Description	The resolution of each channel cannot exceed 4096 pixels in length or width
Ses Sıkıştırma	G.711A, G.711U

Ağ 7 satır

Gelen Bant Genişliği	192 Mbps
Giden Bant Genişliği	192 Mbps
Max Users Can Be Added	32
Maks. Uzak Kullanıcı	128
Protokoller	TCP/IP, P2P, SMTP, NFS, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, SNMP, IPv6, IPv4, HTTPS
Web Tarayıcı (Eklentili)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Web Tarayıcı (Eklentisiz)	Chrome 57+, Edge 16+, Firefox 58+, Safari 11+

Video/Ses Girişi 2 satır

IP Video Girişi	32-ch
RCA Ses Girişi	1-ch

Peripheral Input 2 satır

Ip Speaker	32-ch
POS	All channels

Video/Ses Çıkışı 10 satır

Video Çıkışı	Support 2-ch HDMI, 2-ch VGA, HDMI1 and VGA1 simultaneous output, HDMI2 and VGA2 simultaneous output, HDMI1/VGA1 and HDMI2/VGA2 independent output
HDMI Çıkışı	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz
VGA Çıkışı	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz
HDMI Standard	HDMI1.4
RCA Ses Çıkışı	2-ch
Canlı İzleme Ekranı	1/4/6/8/9/16/25/32
Default Num of Live Screen	32
Koridor Modu Ekranı	3/4/5/7/9/10/12/16/32
Playback Screen	1/4/9/16
Corridor Mode Screen of Playback	1/3

Çift Yönlü Ses 1 satır

Çift Yönlü Ses	1-ch, RCA (Using the audio input and output)

Anlık Görüntü 1 satır

FTP/Zamanlı/Olay Anlık Görüntü	16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)

Kayıt 3 satır

Kayıt Çözünürlüğü	32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback	32-ch
Yerel Senkron Oynatma	16-ch

Akıllı Özellikler 4 satır

Kamera Tabanlı Akıllı Analiz	All channels (up to 16 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting
NVR Tabanlı Akıllı Analiz	Face Detection, Face detection, Smart Intrusion Prevention (SIP), analysis, Elevator Entrance Detection, Illegally Parked Motor Vehicle, Evacuation Route Obstruction, People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Plate Comparison
Smart by NVR Analyzer Mode	Mixed Mode (SIP+analysis+People Counting), Mixed Mode (+Mixed-Traffic Dection+AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time.
VCA Arama	Face detection Search, Behavior Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, SmartSearch+, AcuSearch, AcuTrack, SeekFree

AcuSearch 1 satır

Acu Search Performance	All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

AcuTrack 1 satır

Acu Track Performance	All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

SeekFree 2 satır

SeekFree Performance	All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)
SeekFree Language	English

face detection 2 satır

face detection by NVR	All channels with UNV Face Detection Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)
Search by Image	Support

SIP 1 satır

SIP by NVR with normal cameras	Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

analysis 2 satır

analysis with normal cameras	Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)
analysis Type	No Helmet Detection, No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, Smoke and Fire Detection, Calling Detection, No Mask Detection, Rat Detection, Long Stay Detection, Fall Detection, Fight Detection, Absence Detection, Climbing Detection, Sleep on Duty Detection, People Counting, Using Mobile Phone Detection, , People Dispersion, Quick Moving, No Reflective Clothing Detection

analysis with normal cameras

Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

analysis Type

No Helmet Detection, No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, Smoke and Fire Detection, Calling Detection, No Mask Detection, Rat Detection, Long Stay Detection, Fall Detection, Fight Detection, Absence Detection, Climbing Detection, Sleep on Duty Detection, People Counting, Using Mobile Phone Detection, , People Dispersion, Quick Moving, No Reflective Clothing Detection

Video Metadata 2 satır

Video Metadata by NVR with normal cameras	Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)
Video Metadata Type	Motor Vehicle: Vehicle Type, Vehicle Color, Vehicle Brand, Direction, Plate Type, Plate Color, Human Body: Gender, Age, Mask, , Bag Style, Direction, Upper Garment Length, Lower Garment Length, Upper Garment Color, Lower Garment Color, Non-Motor Vehicle: Non-Motor Vehicle Type, Direction, Gender, Age, Upper Garment Length, Upper Garment Color

Plate Comparison 1 satır

Vehicle Number Library	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total

Capacity of Smart Snapshots 1 satır

Capacity of Snapshot Records	2 millions records for face snapshot, 2 millions records for analysis and SIP, 2 millions records for vehicle snapshot

Alarm 2 satır

Genel Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection, Alarm Input
Uyarı Alarmı	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded

Sabit Disk 4 satır

SATA	2 SATA Interfaces
Kapasite	Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)
Disk Grubu	Support
Yedekli Depolama	Support

Harici Arayüz 10 satır

Ağ Arayüzü	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Network Working Mode	Muli-access, load balance, network fault-tolerance
USB	Front panel: 1 × USB2.0, Rear panel: 2 × USB3.0
RS485	1
RS232	1
Alarm Girişi	16-ch
Alarm Çıkışı	4-ch
Güç Çıkışı	12 V
Buzzer	Support
Güç Kaynağı	DC 12 V/5 A

Çalışma Ortamı 4 satır

Çalışma Sıcaklığı	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Çalışma Nemi	≤ 90% RH (non-condensing)
Güç Tüketimi (HDD Hariç)	≤25W
Heat Dissipation	Fan, Radiator

Boyutlar 3 satır

Ağırlık (HDD Hariç)	1.87 KG
Yükseklik	1U
Boyutlar	380mm × 322.4mm × 53mm (15.0" × 12.7" × 2.1" )

GUI Language 1 satır

Arayüz Dili	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Arayüz Dili

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Sertifikalar 3 satır

Sertifikalar	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

Feature Supported 5 satır

Downlink ONVIF	Support (Profile S)
Uplink ONVIF	N/A
NAS	Support
Ucode Basic Mode	Support
Ucode Advanced Mode	Support

Uyumluluk 1 satır

NDAA Uyumlu	Support

Genel bakış

Uniview NVR502-32E-IX-G kullanım alanları ve özellikleri.

Uniview NVR502-32E-IX-G, Prime serisi 32 Kanal 2 HDD NVR Kayıt Cihazı modelidir. Öne çıkanlar: IP kanal girişi 32-ch.

Üretici tanımı: 2 HDDs 32-Ch Network Video Recorder

Öne Çıkan Özellikler

Support Ultra H.265/H.265/H.264 video formats
Support 32-channel input
Support 2-ch HDMI, 2-ch VGA. HDMI up to 4K (3840x2160) resolution
Support HDMI and VGA independent output
Support up to 16 Megapixels resolution recording
Support ANR technology to enhance the storage reliability when the network is disconnected
Support SeekFree function: up to 16-ch with 3rd party IPC, up to 32-ch with UNV SIP/UMD IPC
Support external USB keyboards
Support Video Metadata, Diverse Algorithms by NVR
Support cloud upgrade

Nerelerde kullanılır?

IP kamera sistemlerinin merkezidir; görüntüleri disk üzerinde saklar, mobil uygulama ve bilgisayar üzerinden canlı izleme ile kayıt izleme imkânı verir.

Kurulum ve uyumluluk

Sürekli kayıt için gözetim diski (Seagate SkyHawk veya WD Purple) önerilir.

Tüm özellikler

Support Ultra H.265/H.265/H.264 video formats
Support 32-channel input
Support 2-ch HDMI, 2-ch VGA. HDMI up to 4K (3840x2160) resolution
Support HDMI and VGA independent output
Support up to 16 Megapixels resolution recording
Support ANR technology to enhance the storage reliability when the network is disconnected
Support SeekFree function: up to 16-ch with 3rd party IPC, up to 32-ch with UNV SIP/UMD IPC
Support external USB keyboards
Support Video Metadata, Diverse Algorithms by NVR
Support cloud upgrade

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NVR502-32E-IX-G Network Video Recorder.pdfPDF · NVR502-32E-IX-G Kullanım Kılavuzu - UNV-Network Video Recorders User Manual(Old UI).pdfPDF · NVR502-32E-IX-G Kullanım Kılavuzu - UNV-Network Video Recorders User Manual(New UI).pdfPDF · NVR502-32E-IX-G Hızlı Kurulum Kılavuzu - Quick Guide.pdfPDF · NVR502-32E-IX-G

Sık sorulanlar

NVR502-32E-IX-G hakkında kısa yanıtlar.

NVR502-32E-IX-G kaç kamera destekler?

NVR502-32E-IX-G 32 kanallıdır; 32 kameraya kadar kayıt yapabilir.

NVR502-32E-IX-G kaç disk takılır?

NVR502-32E-IX-G üzerinde 2 adet SATA disk yuvası bulunur. 7/24 kayıt için gözetim diskleri önerilir.

NVR502-32E-IX-G için hangi disk önerilir?

Sürekli yazma yüküne göre tasarlanmış Seagate SkyHawk veya WD Purple gözetim diskleri önerilir. Kapasite; kamera sayısı, çözünürlük ve istenen kayıt gün sayısına göre hesaplanmalıdır.

NVR502-32E-IX-G fiyatı ne kadar?

NVR502-32E-IX-G için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
