Uniview

Uniview NVR808-32-IX-G 32 Kanal 8 HDD NVR Kayıt Cihazı — görsel 3

1 / 3

NVR Kayıt Cihazı Pro

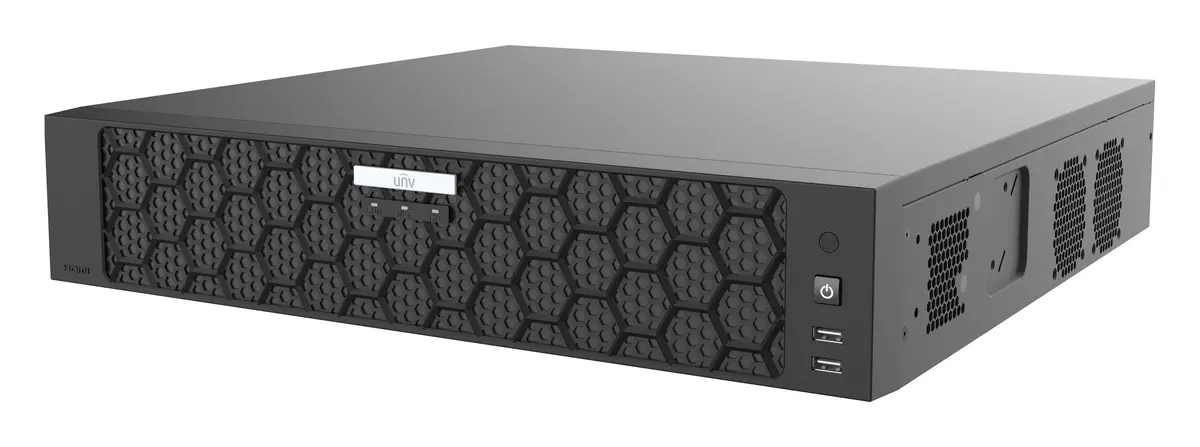

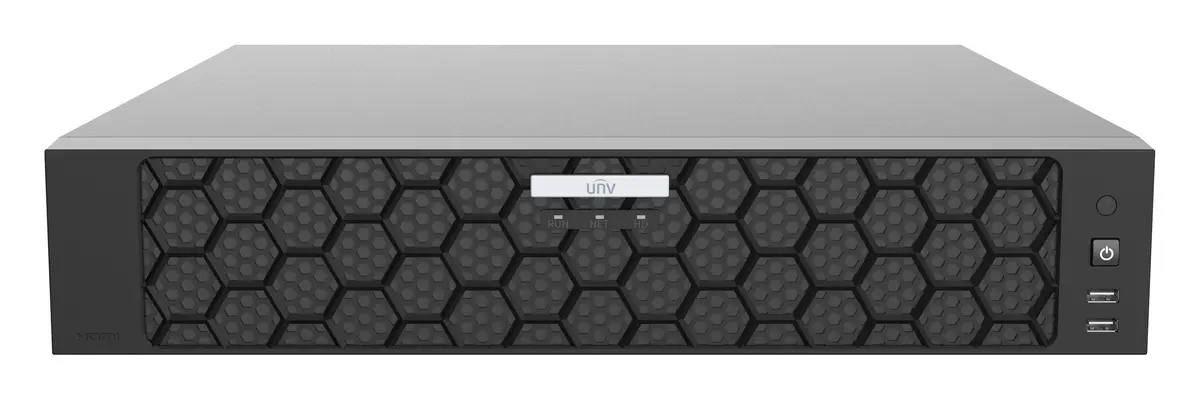

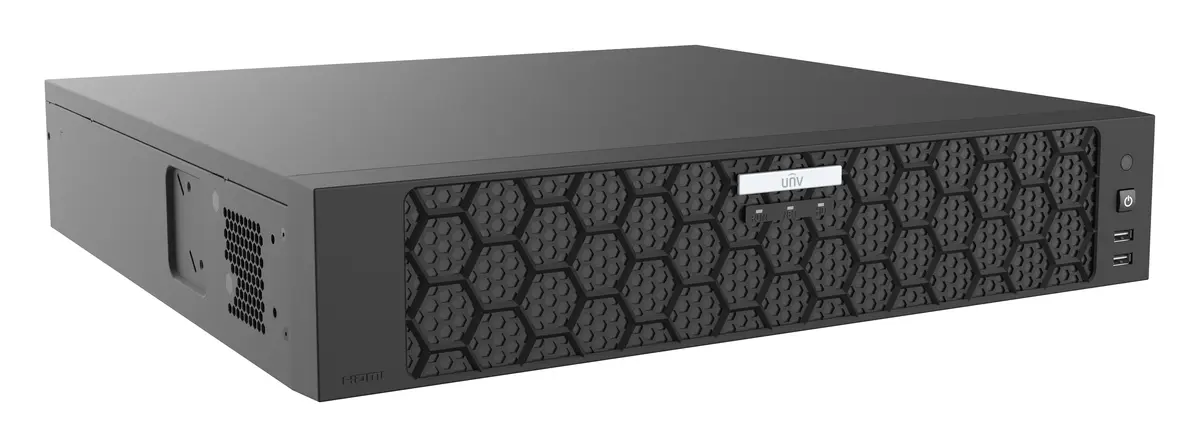

Uniview NVR808-32-IX-G 32 Kanal 8 HDD NVR Kayıt Cihazı

ModelNVR808-32-IX-G

Uniview NVR808-32-IX-G, 32 kanala kadar kamera bağlanabilen bir NVR kayıt cihazıdır. 8 adet SATA disk yuvasıyla kayıt süresi ihtiyaca göre ölçeklenebilir. 6 MP çözünürlüğe kadar kamera kaydını destekler.

Kanal sayısı: 32 kanal
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Support Ultra H.265/H.265/H.264 video formats
Support 32/64-channel input
Support 3-ch HDMI, 1-ch VGA, HDMI1 and VGA simultaneous output, HDMI1 /VGA and HDMI2 and HDMI3 independent output.
Support up to 4K resolution recording
Support ANR technology to enhance the storage reliability when the network is disconnected
Support SeekFree: up to 16-ch with 3rd party and UNV normal IPC, up to all channels with UNV SIP/UMD/etc. Smart IPC
Support external USB keyboards
Support SIP, UMD, Video Metadata, analysis, Plate Comparison, People Counting, Face Detection and face detection by NVR

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 3 satır

Model	NVR808-32-IX-G
Seri	Pro
Ürün Tanımı (Üretici)	8 Hard Disks 32-Channel Network Video Recorder

Kod Çözme 4 satır

Kod Çözme Formatı	Ultra 265, H.265, H.264
Kod Çözme Kapasitesi	Smart Off:; H265: 6 x 4K@30, 8 x 6MP@30, 10 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 25 x 1080P@30, 32 x 720P@30; H264: 6 x 4K@30, 8 x 6MP@30, 10 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 25 x 1080P@30, 32 x 720P@30; Smart On: When Smart by NVR on, the decoding capacity is same as Smart off.
Decoding Capability Description	The resolution of each channel cannot exceed 4096 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Ses Sıkıştırma	G.711A, G.711U

Ağ 7 satır

Gelen Bant Genişliği	512 Mbps
Giden Bant Genişliği	512 Mbps
Max Users Can Be Added	128
Maks. Uzak Kullanıcı	128
Protokoller	TCP/IP, P2P, SMTP, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, IPv6, IPv4, HTTPS, SNMP
Web Tarayıcı (Eklentili)	Chrome 45+, Edge 79+, Firefox 52+
Web Tarayıcı (Eklentisiz)	Chrome 57+, Edge 16+, Firefox 58+, Safari 11+

Video/Ses Girişi 4 satır

IP Video Girişi	32-ch
BNC Ses Girişi	N/A
RCA Ses Girişi	1-ch
3.5mm Audio Input	N/A

Peripheral Input 2 satır

POS	All channels
Ip Speaker	32-ch

Video/Ses Çıkışı 12 satır

Video Çıkışı	Support 3-ch HDMI, 1-ch VGA, HDMI1 and VGA simultaneous output, HDMI1 /VGA and HDMI2 and HDMI3 independent output.
HDMI Çıkışı	4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz
VGA Çıkışı	1920 × 1080/60 Hz, 1280 × 720/60 Hz
HDMI Standard	HDMI1.4
BNC Ses Çıkışı	N/A
RCA Ses Çıkışı	3-ch
Canlı İzleme Ekranı	HDMI1 and VGA/HDMI2/HDMI3: 1/4/6/8/9/16/25/32
Default Num of Live Screen	32
Koridor Modu Ekranı	3/4/5/7/9/10/12/16/32
3.5mm Audio Output	N/A
Playback Screen	1/4/9/16
Corridor Mode Screen of Playback	1/3

Çift Yönlü Ses 1 satır

Çift Yönlü Ses	1-ch, RCA (Using the audio input and output)

Kayıt 3 satır

Kayıt Çözünürlüğü	8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback	32-ch
Yerel Senkron Oynatma	16-ch

Akıllı Özellikler 4 satır

Kamera Tabanlı Akıllı Analiz	All channels (up to 16 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting
NVR Tabanlı Akıllı Analiz	Face Detection, Face detection, People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Smart Intrusion Prevention (SIP), analysis, Evacuation Route Obstruction, Plate Comparison, Elevator Entrance Detection, Illegally Parked Motor Vehicle
Smart by NVR Analyzer Mode	Mixed Mode (SIP+analysis+People Counting), Mixed Mode (+Mixed-Traffic Dection+AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time.
VCA Arama	Face detection Search, Behavior Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch, AcuTrack, SeekFree

AcuSearch 1 satır

Acu Search Performance	All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

AcuTrack 1 satır

Acu Track Performance	All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

SeekFree 2 satır

SeekFree Performance	All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)
SeekFree Language	English

face detection 2 satır

face detection by NVR	Up to 32-ch with UNV Face Detection Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)
Search by Image	Support

Plate Comparison 1 satır

Vehicle Number Library	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total

SIP 1 satır

SIP by NVR with normal cameras	Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

UMD 1 satır

UMD by NVR with normal cameras	N/A

analysis 2 satır

analysis with normal cameras	Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)
analysis Type	No Helmet Detection, No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, Smoke and Fire Detection, Calling Detection, No Mask Detection, Rat Detection, Long Stay Detection, Fall Detection, Fight Detection, Absence Detection, Quick Moving, People Dispersion, , Using Mobile Phone Detection, No Reflective Clothing Detection, Sleep on Duty Detection, Climbing Detection, Knife/Stick in Hand Detection

analysis with normal cameras

Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

analysis Type

No Helmet Detection, No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, Smoke and Fire Detection, Calling Detection, No Mask Detection, Rat Detection, Long Stay Detection, Fall Detection, Fight Detection, Absence Detection, Quick Moving, People Dispersion, , Using Mobile Phone Detection, No Reflective Clothing Detection, Sleep on Duty Detection, Climbing Detection, Knife/Stick in Hand Detection

Video Metadata 2 satır

Video Metadata by NVR with normal cameras	Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)
Video Metadata Type	Motor Vehicle: Vehicle Type, Vehicle Color, Vehicle Brand, Direction, Plate Type, Plate Color, Human Body: Gender, Age, Mask, , Bag Style, Direction, Upper Garment Length, Lower Garment Length, Upper Garment Color, Lower Garment Color, Non-Motor Vehicle: Non-Motor Vehicle Type, Direction, Gender, Age, Upper Garment Length, Upper Garment Color

Capacity of Smart Snapshots 1 satır

Capacity of Snapshot Records	2 millions records for SIP, 2 millions records for vehicle snapshot, 3 millions records for face snapshot

Alarm 2 satır

Genel Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection, Alarm Input
Uyarı Alarmı	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded

Sabit Disk 5 satır

SATA	8 SATA Interfaces
Kapasite	Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)
Disk Grubu	Support
Yedekli Depolama	Support
Disk Dizisi (RAID) Tipi	RAID 0, 1, 5, 6, 10

Harici Arayüz 16 satır

Ağ Arayüzü	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Network Working Mode	Muli-access, load balance, network fault-tolerance
USB	Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485	1
RS232	1
Alarm Girişi	16-ch
Alarm Çıkışı	10-ch
eSATA	1
miniSAS HD	N/A
miniSAS	N/A
Güç Çıkışı	12 V
Extension Board	1
Buzzer	Support
Güç Kaynağı	AC 100 to 240 V
Power Switch	Support
Redundant Power Supply	N/A

PoE 3 satır

PoE Arayüzü	N/A
Maks. Güç	N/A
Desteklenen Standart	N/A

Çalışma Ortamı 4 satır

Çalışma Sıcaklığı	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Çalışma Nemi	≤ 90% RH (non-condensing)
Güç Tüketimi (HDD Hariç)	≤50W
Heat Dissipation	Fan, Radiator

GUI Language 1 satır

Arayüz Dili	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Arayüz Dili

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Sertifikalar 3 satır

Sertifikalar	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130
FCC	Part15 Subpart B

Feature Supported 15 satır

Cruise Lines Num of Each Camera	4
Preset Num	32
N+1 Hot Spare	Support
Fisheye Dewarping by IPC	Support
ANR	Support
Dual-lens Cameras	Support
Downlink ONVIF	Support (Profile S)
Box-Dome Linkage	Support
Uplink ONVIF	N/A
Video Image Database (Uplink)	Support
UCS (Web socket)	Support
NAS	Support
Ucode Basic Mode	Support
Ucode Advanced Mode	Support
Output Mode	N/A

Uyumluluk 1 satır

NDAA Uyumlu	Support

Genel bakış

Uniview NVR808-32-IX-G kullanım alanları ve özellikleri.

Uniview NVR808-32-IX-G, Pro serisi 32 Kanal 8 HDD NVR Kayıt Cihazı modelidir. Öne çıkanlar: IP kanal girişi 32-ch.

Üretici tanımı: 8 Hard Disks 32-Channel Network Video Recorder

Öne Çıkan Özellikler

Support Ultra H.265/H.265/H.264 video formats
Support 32/64-channel input
Support 3-ch HDMI, 1-ch VGA, HDMI1 and VGA simultaneous output, HDMI1 /VGA and HDMI2 and HDMI3 independent output.
Support up to 4K resolution recording
Support ANR technology to enhance the storage reliability when the network is disconnected
Support SeekFree: up to 16-ch with 3rd party and UNV normal IPC, up to all channels with UNV SIP/UMD/etc. Smart IPC
Support external USB keyboards
Support SIP, UMD, Video Metadata, analysis, Plate Comparison, People Counting, Face Detection and face detection by NVR
Support cloud upgrade

Nerelerde kullanılır?

IP kamera sistemlerinin merkezidir; görüntüleri disk üzerinde saklar, mobil uygulama ve bilgisayar üzerinden canlı izleme ile kayıt izleme imkânı verir.

Kurulum ve uyumluluk

Sürekli kayıt için gözetim diski (Seagate SkyHawk veya WD Purple) önerilir.

Tüm özellikler

Support Ultra H.265/H.265/H.264 video formats
Support 32/64-channel input
Support 3-ch HDMI, 1-ch VGA, HDMI1 and VGA simultaneous output, HDMI1 /VGA and HDMI2 and HDMI3 independent output.
Support up to 4K resolution recording
Support ANR technology to enhance the storage reliability when the network is disconnected
Support SeekFree: up to 16-ch with 3rd party and UNV normal IPC, up to all channels with UNV SIP/UMD/etc. Smart IPC
Support external USB keyboards
Support SIP, UMD, Video Metadata, analysis, Plate Comparison, People Counting, Face Detection and face detection by NVR
Support cloud upgrade

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NVR808-IX-G Series Network Video Recorder.pdfPDF · NVR808-32-IX-G Kullanım Kılavuzu - UNV-Network Video Recorders User Manual(Old UI).pdfPDF · NVR808-32-IX-G Kullanım Kılavuzu - UNV-Network Video Recorders User Manual(New UI).pdfPDF · NVR808-32-IX-G Hızlı Kurulum Kılavuzu - Quick Guide.pdfPDF · NVR808-32-IX-G

Sık sorulanlar

NVR808-32-IX-G hakkında kısa yanıtlar.

NVR808-32-IX-G kaç kamera destekler?

NVR808-32-IX-G 32 kanallıdır; 32 kameraya kadar kayıt yapabilir.

NVR808-32-IX-G kaç disk takılır?

NVR808-32-IX-G üzerinde 8 adet SATA disk yuvası bulunur. 7/24 kayıt için gözetim diskleri önerilir.

NVR808-32-IX-G için hangi disk önerilir?

Sürekli yazma yüküne göre tasarlanmış Seagate SkyHawk veya WD Purple gözetim diskleri önerilir. Kapasite; kamera sayısı, çözünürlük ve istenen kayıt gün sayısına göre hesaplanmalıdır.

NVR808-32-IX-G fiyatı ne kadar?

NVR808-32-IX-G için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
