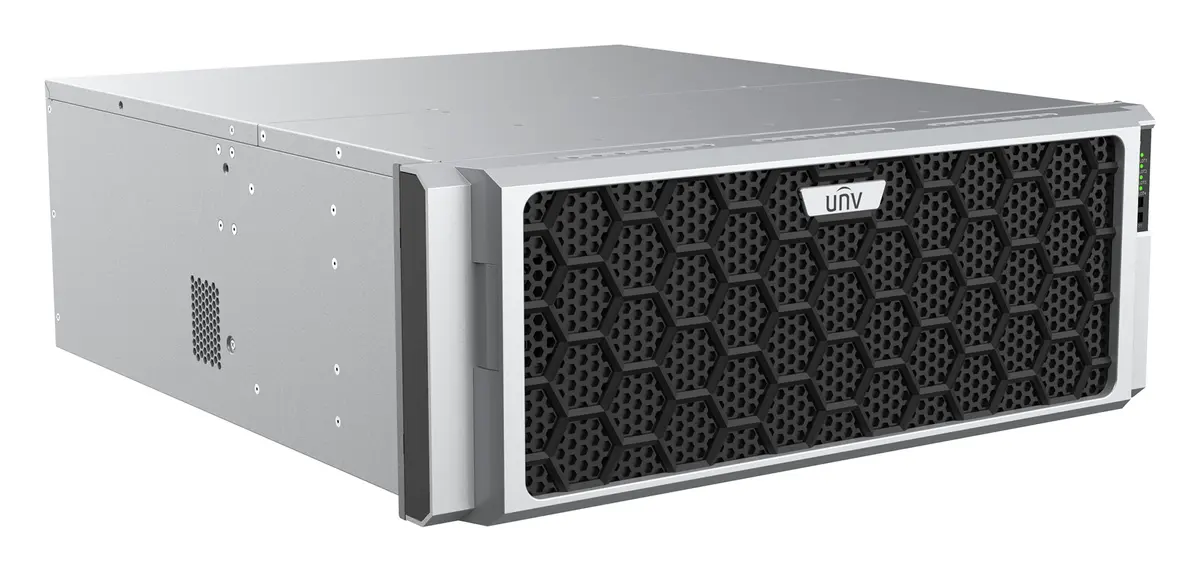

Uniview NVR824-256-R-IX2-16G 256 Kanal 24 HDD NVR Kayıt Cihazı — görsel 3

1 / 3

NVR Kayıt Cihazı Pro

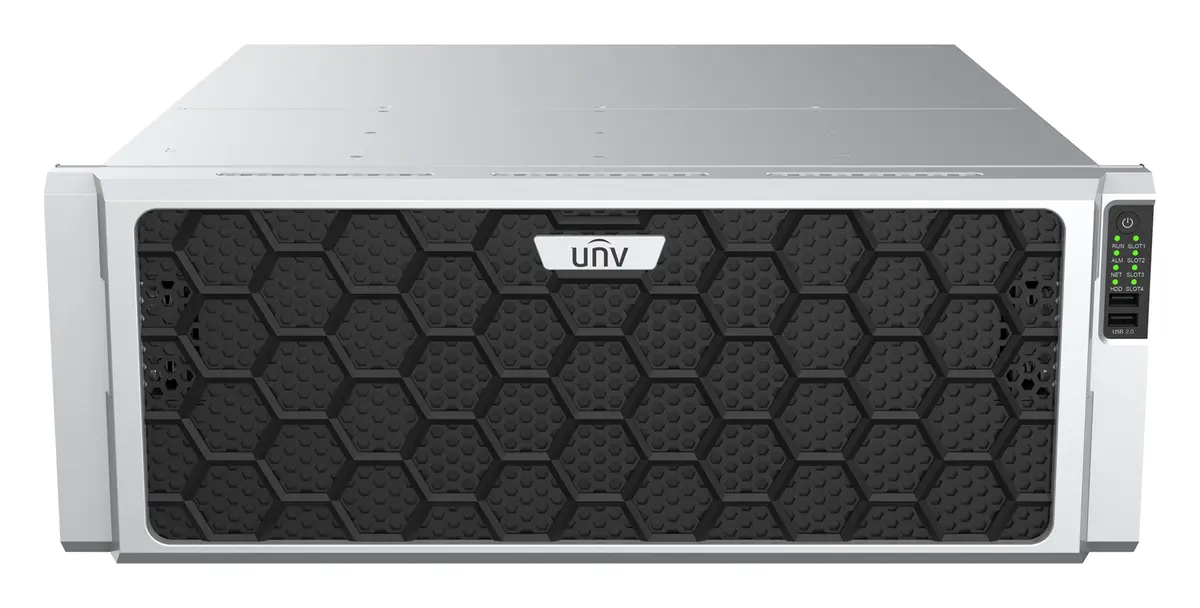

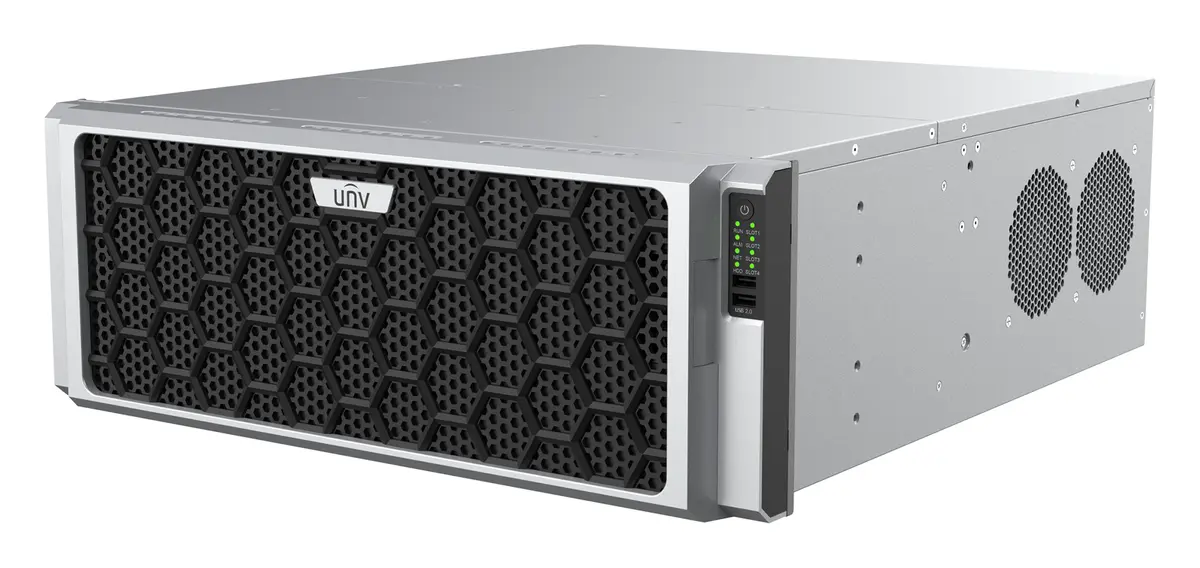

Uniview NVR824-256-R-IX2-16G 256 Kanal 24 HDD NVR Kayıt Cihazı

ModelNVR824-256-R-IX2-16G

Uniview NVR824-256-R-IX2-16G, 256 kanala kadar kamera bağlanabilen bir NVR kayıt cihazıdır. 4 adet SATA disk yuvasıyla kayıt süresi ihtiyaca göre ölçeklenebilir. 5 MP çözünürlüğe kadar kamera kaydını destekler.

Kanal sayısı: 256 kanal
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Support Ultra 265/H.265/H.264 video formats
Support 96/192-channel input
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840x2160) resolution
Support HDMI1, HDMI2 and VGA independent outputs provided
Support up to 8 Megapixels resolution recording
Support redundant power supply optional
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
Support 2 miniSAS Interfaces

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Model	NVR824-256-R-IX2-16G
Seri	Pro

Kod Çözme 4 satır

Kod Çözme Formatı	Ultra 265, H.265, H.264
Kod Çözme Kapasitesi	4 x 4K@30, 6 x 5MP@30, 8 x 4MP@20, 10 x 3MP@20, 16 x 1080P@30, 32 x 720P@30, 64 x D1
Decoding Capability Description	The resolution of each channel cannot exceed 4096 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Ses Sıkıştırma	G.711A, G.711U

Ağ 5 satır

Gelen Bant Genişliği	768 Mbps
Giden Bant Genişliği	768 Mbps
Maks. Uzak Kullanıcı	128
Protokoller	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, 802.1x, IPv6, IPv4
Web Tarayıcı (Eklentili)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Ses Girişi 2 satır

IP Video Girişi	256-ch
RCA Ses Girişi	1-ch

Peripheral Input 2 satır

Ip Speaker	16-ch
POS	All channels

Video/Ses Çıkışı 5 satır

Video Çıkışı	Support 2-ch HDMI, 1-ch VGA, HDMI1 and HDMI2 and VGA independent output
HDMI Çıkışı	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Ses Çıkışı	1-ch
Canlı İzleme Ekranı	VGA: 1/4/6/8/9/16/25/36;; HDMI: 1/4/6/8/9/16/25/36/64
Koridor Modu Ekranı	3/4/5/7/9/10/12/16/32

Çift Yönlü Ses 1 satır

Çift Yönlü Ses	1-ch, RCA (Using the audio input and output)

Anlık Görüntü 1 satır

FTP/Zamanlı/Olay Anlık Görüntü	Full-ch snapshot (max. 4000 × 3000 video resolution, with snapshot resolution same as the video resolution)

Kayıt 2 satır

Kayıt Çözünürlüğü	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Yerel Senkron Oynatma	16-ch

Akıllı Özellikler 4 satır

Kamera Tabanlı Akıllı Analiz	All channels (up to 64 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting
NVR Tabanlı Akıllı Analiz	Face Detection, Face detection, People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Smart Intrusion Prevention (SIP), analysis, Evacuation Route Obstruction, Plate Comparison, Elevator Entrance Detection, Illegally Parked Motor Vehicle
Smart by NVR Analyzer Mode	Mixed Mode (+SIP+analysis+People Counting), Mixed Mode (Mixed-Traffic Dection+AcuSearch/AcuTrack)
VCA Arama	Face detection Search, Behavior Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, SmartSearch+, AcuSearch, AcuTrack, SeekFree

AcuSearch 1 satır

Acu Search Performance	All channels with UNV SIP/UMD Camera, Up to 192-ch with normal camera (UNV and Third-part brand, 192-ch 2MP, 96-ch 4MP, 48-ch 4K)

AcuTrack 1 satır

Acu Track Performance	All channels with UNV SIP/UMD Camera, Up to 192-ch with normal camera (UNV and Third-part brand, 192-ch 2MP, 96-ch 4MP, 48-ch 4K)

SeekFree 2 satır

SeekFree Performance	All channels with UNV SIP/UMD Camera, Up to 192-ch with normal camera (UNV and Third-part brand, 192-ch 2MP, 96-ch 4MP, 48-ch 4K)
SeekFree Language	English

face detection 2 satır

face detection by NVR	All channels with UNV Face Detection Camera, Up to 192-ch with normal camera (UNV and Third-part brand, 192-ch 2MP, 96-ch 4MP, 48-ch 4K)
Search by Image	Support

Plate Comparison 2 satır

Plate Comparion by NVR	All channels with UNV LPR Camera, normal/Third-part brand cameras not supported
Plate Library	Up to 5 plate libraries, with up to 25000 plates in total

SIP 1 satır

SIP by NVR with normal cameras	Up to 192-ch with normal camera (UNV and Third-part brand, 192-ch 2MP, 96-ch 4MP, 48-ch 4K)

UMD 1 satır

UMD by NVR with normal cameras	N/A

analysis 2 satır

analysis with normal cameras	Up to 192-ch with normal camera (UNV and Third-part brand, 192-ch 2MP, 96-ch 4MP, 48-ch 4K)
analysis Type	No Helmet Detection, No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, Smoke and Fire Detection, Calling Detection, No Mask Detection, Rat Detection, Long Stay Detection, Fall Detection, Fight Detection, Absence Detection, Climbing Detection, Sleep on Duty Detection, People Counting, Using Mobile Phone Detection, , People Dispersion, No Reflective Clothing Detection, Quick Moving, Knife/Stick in Hand Detection

analysis with normal cameras

Up to 192-ch with normal camera (UNV and Third-part brand, 192-ch 2MP, 96-ch 4MP, 48-ch 4K)

analysis Type

No Helmet Detection, No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, Smoke and Fire Detection, Calling Detection, No Mask Detection, Rat Detection, Long Stay Detection, Fall Detection, Fight Detection, Absence Detection, Climbing Detection, Sleep on Duty Detection, People Counting, Using Mobile Phone Detection, , People Dispersion, No Reflective Clothing Detection, Quick Moving, Knife/Stick in Hand Detection

Video Metadata 2 satır

Video Metadata by NVR with normal cameras	Up to 192-ch with normal camera (UNV and Third-part brand, 192-ch 2MP, 96-ch 4MP, 48-ch 4K)
Video Metadata Type	Motor Vehicle: Vehicle Type, Vehicle Color, Vehicle Brand, Direction, Plate Type, Plate Color, Non-Motor Vehicle: Non-Motor Vehicle Type, Direction, Gender, Age, Upper Garment Length, Upper Garment Color, Human Body: Gender, Age, Mask, , Bag Style, Direction, Upper Garment Length, Lower Garment Length, Upper Garment Color, Lower Garment Color

Alarm 2 satır

Genel Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection, Alarm Input
Uyarı Alarmı	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded

Sabit Disk 6 satır

SATA	24 SATA Interfaces
Kapasite	Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)
Disk Grubu	Support
Yedekli Depolama	Support
Disk Dizisi (RAID) Tipi	RAID 0, 1, 5, 6, 10, 50, 60
Çalışırken Değiştirme (Hot Swap)	Support

Harici Arayüz 14 satır

Ağ Arayüzü	4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485	1
RS232	1
Alarm Girişi	24-ch
Alarm Çıkışı	8-ch
eSATA	1
miniSAS	2
Güç Çıkışı	12 V
Extension Board	4
Buzzer	Support
Güç Kaynağı	AC 100 to 240 V
Power Switch	Support
Redundant Power Supply	Support

Çalışma Ortamı 3 satır

Çalışma Sıcaklığı	-10 ℃ to 50 ℃ (14 ℉ to 122 ℉)
Çalışma Nemi	≤ 90% RH (non-condensing)
Güç Tüketimi (HDD Hariç)	≤350W

Boyutlar 3 satır

Ağırlık (HDD Hariç)	15KG
Yükseklik	4U
Boyutlar	482mm × 559mm × 175mm (19.0" × 22.0" × 6.9" )

GUI Language 1 satır

Arayüz Dili	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Arayüz Dili

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Sertifikalar 3 satır

Sertifikalar	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

Genel bakış

Uniview NVR824-256-R-IX2-16G kullanım alanları ve özellikleri.

Uniview NVR824-256-R-IX2-16G, Pro serisi 256 Kanal 24 HDD NVR Kayıt Cihazı modelidir. Öne çıkanlar: IP kanal girişi 256-ch.

Öne Çıkan Özellikler

Support Ultra 265/H.265/H.264 video formats
Support 96/192-channel input
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840x2160) resolution
Support HDMI1, HDMI2 and VGA independent outputs provided
Support up to 8 Megapixels resolution recording
Support redundant power supply optional
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
Support 2 miniSAS Interfaces
Support 12V power output
Support ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare

Nerelerde kullanılır?

IP kamera sistemlerinin merkezidir; görüntüleri disk üzerinde saklar, mobil uygulama ve bilgisayar üzerinden canlı izleme ile kayıt izleme imkânı verir.

Kurulum ve uyumluluk

Sürekli kayıt için gözetim diski (Seagate SkyHawk veya WD Purple) önerilir.

Tüm özellikler

Support Ultra 265/H.265/H.264 video formats
Support 96/192-channel input
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840x2160) resolution
Support HDMI1, HDMI2 and VGA independent outputs provided
Support up to 8 Megapixels resolution recording
Support redundant power supply optional
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
Support 2 miniSAS Interfaces
Support 12V power output
Support ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NVR824-R-IX2 Series Network Video Recorder.pdfPDF · NVR824-256-R-IX2-16G Kullanım Kılavuzu - UNV-Network Video Recorders User Manual(Old UI).pdfPDF · NVR824-256-R-IX2-16G Kullanım Kılavuzu - UNV-Network Video Recorders User Manual(New UI).pdfPDF · NVR824-256-R-IX2-16G Hızlı Kurulum Kılavuzu - Quick Guide.pdfPDF · NVR824-256-R-IX2-16G

Sık sorulanlar

NVR824-256-R-IX2-16G hakkında kısa yanıtlar.

NVR824-256-R-IX2-16G kaç kamera destekler?

NVR824-256-R-IX2-16G 256 kanallıdır; 256 kameraya kadar kayıt yapabilir.

NVR824-256-R-IX2-16G kaç disk takılır?

NVR824-256-R-IX2-16G üzerinde 4 adet SATA disk yuvası bulunur. 7/24 kayıt için gözetim diskleri önerilir.

NVR824-256-R-IX2-16G için hangi disk önerilir?

Sürekli yazma yüküne göre tasarlanmış Seagate SkyHawk veya WD Purple gözetim diskleri önerilir. Kapasite; kamera sayısı, çözünürlük ve istenen kayıt gün sayısına göre hesaplanmalıdır.

NVR824-256-R-IX2-16G fiyatı ne kadar?

NVR824-256-R-IX2-16G için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
