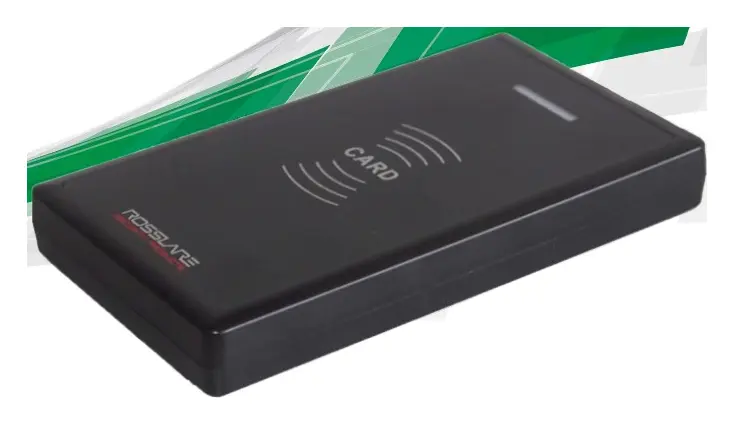

Rosslare DR-6255 CSN SELECT Desktop Enrollment Reader Masaüstü Kart Okuyucu

The DR-6255 is a desktop smart card CSN enrollment reader with a USB interface for use when enrolling user credentials to access control software such as Rosslare’s AxTraxNG™. The reader is part of the CSN SELECT™ series of multi-credential technology contactless smart card (13.56 MHz) readers that support access by an NFC compatible Android smartphone app*. This reader has the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards implementations, perfect for transitioning from one technology to another. CSN SELECT readers are able to read the CSN from many smart card RFID standard implementations. The reader has a sleek and modern design, and is powered by the USB port itself for easy and convenient installation.

The DR-6255 appears as a COM port device and can be used for any application. The standard reader is configured to read the CSN of the most popular smart cards in the security industry as well as NFC compatible Android smartphones, and output the CSN in Wiegand format.

Main Features

• Read the CSN from the following smart cards:
• ISO14443A - MIFARE ® Ultralight ® Nano / Ultralight EV1/ Ultralight C - MIFARE Classic ® / Classic EV1 - MIFARE Plus ® S / SE / X / EV1 - MIFARE DESFire ® EV1 / EV2 - NFC N–TAG / Card Emulation
• ISO14443B – China National ID
• ISO15693 – HID ® iClass ®, PicoPass, iCode, LEGIC
• ISO18092 – SONY ® FeliCa ® (Hong Kong Octopus)
• NFC Android smartphone is supported with the Android App for HCE (Host Card Emulation) Reader (Rev. B) enrollment reader with a USB credentials to access control software is part of the CSN SELECT™ series of smart card (13.56 MHz) readers that smartphone app*. This reader Number (CSN) from many smart card for transitioning from one are able to read the CSN from The reader has a sleek and USB port itself for easy and convenient
• Selectable Wiegand output formats using the CS-HCT Hardware Configuration Tool for the DR-6255 application
• Built-in buzzer
• USB 2.0 compliant and USB powered
• Wiegand output format can be configured using a PC software, including Wiegand 26-Bit, 32-Bit, 32-Bit (reverse), 34-Bit, 40-Bit, 56-Bit, and 64-Bit outputs
• Uses standard drivers that support the following operating systems:
• Windows XP (32-Bit and 64-Bit)
• Windows 7 (32-Bit and 64-Bit)
• Windows 8 (32-Bit and 64-Bit)
• Windows 10 (32-Bit and 64-Bit) * Please refer to NFC App data sheet for further information

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• Read the CSN from the following smart cards:
• ISO14443A - MIFARE ® Ultralight ® Nano / Ultralight EV1/ Ultralight C - MIFARE Classic ® / Classic EV1 - MIFARE Plus ® S / SE / X / EV1 - MIFARE DESFire ® EV1 / EV2 - NFC N–TAG / Card Emulation
• ISO14443B – China National ID
• ISO15693 – HID ® iClass ®, PicoPass, iCode, LEGIC
• ISO18092 – SONY ® FeliCa ® (Hong Kong Octopus)
• NFC Android smartphone is supported with the Android App for HCE (Host Card Emulation) Reader (Rev. B) enrollment reader with a USB credentials to access control software is part of the CSN SELECT™ series of smart card (
• Selectable Wiegand output formats using the CS-HCT Hardware Configuration Tool for the DR-6255 application
• Built-in buzzer
• USB 2.0 compliant and USB powered
• Wiegand output format can be configured using a PC software, including Wiegand 26-Bit, 32-Bit, 32-Bit (reverse), 34-Bit, 40-Bit, 56-Bit, and 64-Bit outputs
• Uses standard drivers that support the following operating systems:
• Windows XP (32-Bit and 64-Bit)
• Windows 7 (32-Bit and 64-Bit)
• Windows 8 (32-Bit and 64-Bit)
• Windows 10 (32-Bit and 64-Bit) * Please refer to NFC App data sheet for further information
