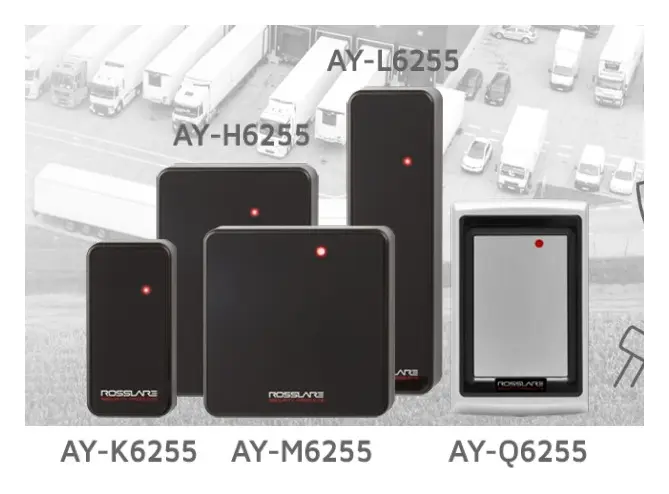

Rosslare AY-K6255 CSN SELECT Smart Card Readers Kart Okuyucu

The CSN SELECT™ AY-x6255 is a series of multi-credential technology contactless smart card (13.56 MHz) readers. The readers have the flexibility to read the CSN from many smart card RFID standards, including MIFARE Classic Sector read, perfect for transitioning from one technology to another. They support access by an NFC compatible Android smartphone app for use in access control system solutions. 1 The readers are UV, water, and dust resistant. The readers have a sleek, modern design and can be used comfortably in any indoor or outdoor installation environment.

The AY-x6255 reader series are built to read the CSN of the most popular smart cards in the security industry, including MIFARE sector read, as well as NFC compatible Android smartphones, and output the CSN in Wiegand or OSDP protocols.

Four individual control lines provide green LED control, red LED control, and buzzer control inputs, as well as an output for the optical wall tamper detector.

AY-x6255 readers support SIA Open Supervised Device Protocol (OSDP V2) including SCP mode (Secured Channel Protocol) to let the reader connect to any controller that supports OSDP.

Rosslare Mobile Credentials SDK for each NFC supported Android smartphone.

www.rosslaresecurity.com 1 Card

Main Features

• The reader settings can be configured with the CS-CCT Configuration Tool
• Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security with extended range, up to 32 addresses
• MIFARE Classic EV1 Sector Read - Compatible with ISO 14443A 1K and 4K credentials
• 1 Supports NFC technology using Rosslare BLE-ID mobile app or SDK.
• Sleek and modern design
• Tri-colored LED operation
• Optical wall tamper detection
• Multiple mounting options including micro-mullion, mullion, US gangbox and UK/Asia gangbox
• Comes with mounting template and installation for easy installation
• Water and dust resistant
• IP68 for models without DIP switches
• IP65 for models with DIP switches
• IK08 vandal resistance (without the bezel)

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• The reader settings can be configured with the CS-CCT Configuration Tool
• Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security with extended range, up to 32 addresses
• MIFARE Classic EV1 Sector Read - Compatible with ISO 14443A 1K and 4K credentials
• 1 Supports NFC technology using Rosslare BLE-ID mobile app or SDK.
• Sleek and modern design
• Tri-colored LED operation
• Optical wall tamper detection
• Multiple mounting options including micro-mullion, mullion, US gangbox and UK/Asia gangbox
• Comes with mounting template and installation for easy installation
• Water and dust resistant
• IP68 for models without DIP switches
• IP65 for models with DIP switches
• IK08 vandal resistance (without the bezel)
