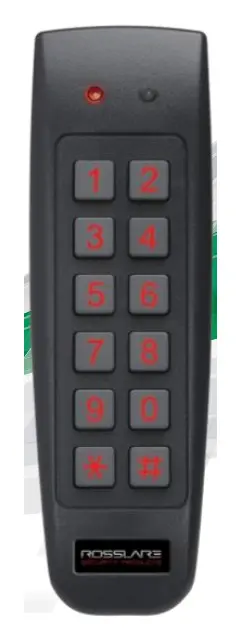

Rosslare AYC-G64 Backlit Proximity & PIN Convertible Reader / Controller Okuyucu / Kontrol Ünitesi

Part of the convertible line of readers/controllers, this unit can be operated as an outdoor backlit keypad & proximity reader that connects to any standard controller, or it can convert into a fully featured, 500-user standalone controller when connected to Rosslare’s PS-x25T family of intelligent power supply/relay units. This unit provides a most effective solution for indoor and outdoor access systems where PIN credentials are required.

For greater peace of mind, this sturdy access control unit provides a rugged keypad with advanced access control features, in an aesthetically-designed housing.

The AYC-G64 offers programmable PIN and proximity transmission formats, LED control and tamper detection, providing extra security and flexibility.

Come rain or shine, this unit can handle the challenge, with its rugged ultraviolet-resistant housing and waterproof enclosure for maximum durability.

The backlit keypad is clearly visible day or night, making this unit ideal for residential and commercial applications.

Main Features

• Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
• Smooth, attractive design, with all-weather indoor and outdoor operation
• Large, highly-visible RED backlit keypad
• 2 tri-colored LEDs and an integral sounder for programming and operation this unit can be operated as an outdoor backlit standard controller, or it can convert into a fully connected to Rosslare’s PS-x25T family of intelligent effective solution for indoor and outdoor access
• User friendly menu, based on keypad, LED and sounder indicators
• Back and cover optical tamper detection and output
• Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data)
• Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays
• 8 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 2x6 Matrix
• Supports Wiegand 26-Bit or Clock & Data transmission formats
• 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
• 60 cm (23.6 in.) shielded interface cable
• Meets IP65

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
• Smooth, attractive design, with all-weather indoor and outdoor operation
• Large, highly-visible RED backlit keypad
• 2 tri-colored LEDs and an integral sounder for programming and operation this unit can be operated as an outdoor backlit standard controller, or it can convert into a fully connected to Rosslare’s PS-x25T family of intel
• User friendly menu, based on keypad, LED and sounder indicators
• Back and cover optical tamper detection and output
• Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data)
• Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays
• 8 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 2x6 Matrix
• Supports Wiegand 26-Bit or Clock & Data transmission formats
• 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
• 60 cm (23.6 in.) shielded interface cable
• Meets IP65
