Rosslare AYC-E60 Backlit goPROX & PIN Reader – Convertible Series Kartlı ve Şifreli Okuyucu

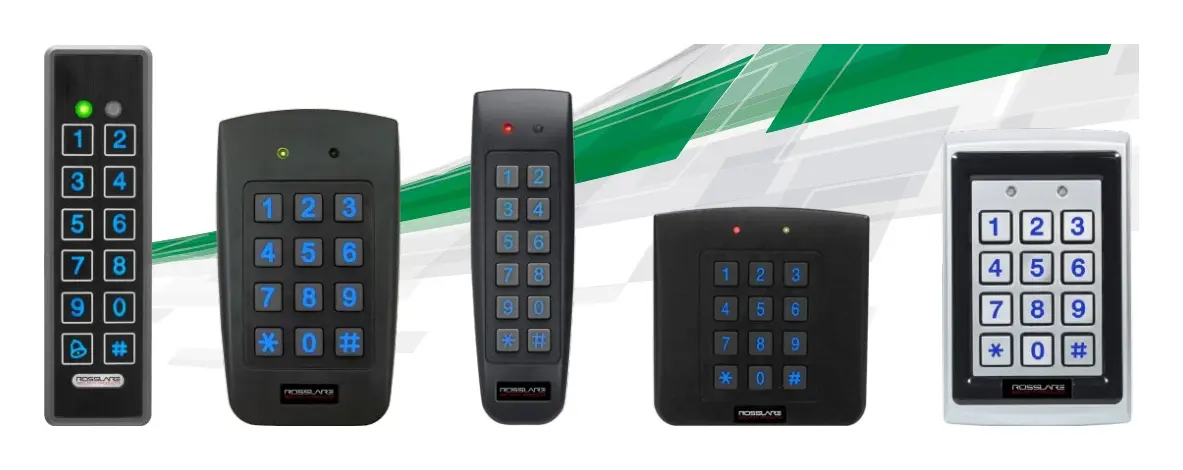

The go PROX AYC family is a series of convertible PIN/Proximity readers. The go

As a reader, the units can read all 125 kHz FSKCards/Tags(125 kHz) and outputs the card data in Wiegand according to the number of bits of data stored on the card. The units also read Rosslare PROX – EM Proximity Cards (125 kHz – EM) and can output EM card data as Wiegand 26-Bit, Clock & Data, and Wiegand + PIN.

As a controller, the units accept up to 500 users, and allow entry via a personal identification number (PIN) and/or by presenting a proximity card. The PIN code length for the controller can vary. The PIN code length can be a set number of 4, 5, or 6 digits or it can be flexible from 4 to 8 digits.

Convertible Series convertible PIN/Proximity readers. The go whether to function as a reader or as is connected to a standard access If the unit is connected to a Rosslare the PS-A25T, PS-C25T, or PS-C25TU, it controller.

Main Features

• Advanced, secure, multi-application functionality for intelligent installations
• Smooth, attractive design, with all-weather indoor and outdoor operation
• 2 tri-colored LEDs and an integral sounder for programming and operation
• Unique backlit piezoelectric keys
• User-friendly menu based on keypad, LED, and sounder indicators
• Back and cover optical tamper detection and output
• Default operation as a multi-format reader (ASK&FSK formats, Wiegand 26-Bit, Clock & Data)
• Automatically recognizes Rosslare’s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays
• 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• Advanced, secure, multi-application functionality for intelligent installations
• Smooth, attractive design, with all-weather indoor and outdoor operation
• 2 tri-colored LEDs and an integral sounder for programming and operation
• Unique backlit piezoelectric keys
• User-friendly menu based on keypad, LED, and sounder indicators
• Back and cover optical tamper detection and output
• Default operation as a multi-format reader (ASK&FSK formats, Wiegand 26-Bit, Clock & Data)
• Automatically recognizes Rosslare’s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays
• 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
