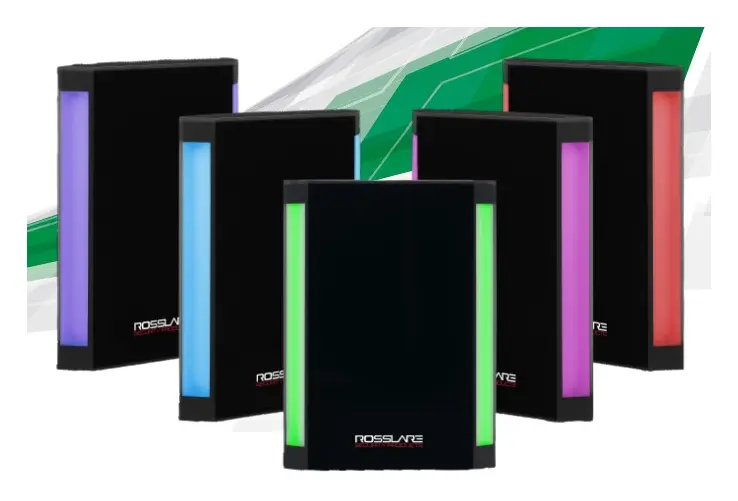

Rosslare AY-R6255 Illuminated CSN SELECT Smart Card Reader Kart Okuyucu

The CSN SELECT™ AY-R6255 is a unique illumination reader of multi-credential technology contactless smart card (13.56 MHz) readers for use in access control system solutions. The readers have the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards, perfect for transitioning from one technology to another. The reader also supports access by an NFC compatible Android smartphone app*. UV-resistant and with an IP65 rated sleek and modern design, the reader can be used comfortably in any installation environment whether indoors or outdoors.

The standard AY-R6255 reader is configured to read the CSN of the most popular smart cards in the security industry, as well as NFC compatible Android smartphones, and outputs the Wiegand CSN data in Wiegand 26-Bit format. Four individual control lines provide green LED control, red LED control, and buzzer control inputs, as well as an output for the optical wall tamper detector. The reader can also communicate with host controllers that support the Open Standard Device Protocol

Main Features

• Read the CSN from the following smart cards:
• ISO14443A - MIFARE ® Ultralight ® Nano / Ultralight EV1/ Ultralight C - MIFARE Classic ® / Classic EV1 - MIFARE Plus ® S / SE / X / EV1 - MIFARE DESFire ® EV1 / EV2 - NFC N–TAG / Card Emulation
• ISO14443B - China National ID
• ISO15693 - HID ® iClass ®, PicoPass™, iCode, LEGIC
• ISO18092 - SONY ® FeliCa ® (Hong Kong Octopus) Card Reader (Rev. B) illumination reader of multi-credential MHz) readers for use in access control flexibility to read the Card Serial RFID standards, perfect for transitioning reader also supports access by an NFC UV-resistant and with an IP65 rated be used comfortably in any or outdoors.
• NFC Android Smartphone is supported with the Android App for HCE (Host Card Emulation)
• Multiple mounting options including micro- mullion, mullion, US gangbox and UK/Asia gangbox
• Supports unique illumination for notifications
• Selectable Wiegand output formats using the CS-CCT Card Configuration Tool
• Sleek and modern design
• Customizable control and status lines available with CS-CCT Card Configuration Tool
• Optical wall tamper detection
• IP65 rated and made of tough polycarbonate UV-resistant plastic
• Comes with mounting template and installation kit for easy installation *Please refer to NFC App data sheet for further information

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• Read the CSN from the following smart cards:
• ISO14443A - MIFARE ® Ultralight ® Nano / Ultralight EV1/ Ultralight C - MIFARE Classic ® / Classic EV1 - MIFARE Plus ® S / SE / X / EV1 - MIFARE DESFire ® EV1 / EV2 - NFC N–TAG / Card Emulation
• ISO14443B - China National ID
• ISO15693 - HID ® iClass ®, PicoPass™, iCode, LEGIC
• ISO18092 - SONY ® FeliCa ® (Hong Kong Octopus) Card Reader (Rev. B) illumination reader of multi-credential MHz) readers for use in access control flexibility to read the Card Serial RFID standards, perfect for transitio
• NFC Android Smartphone is supported with the Android App for HCE (Host Card Emulation)
• Multiple mounting options including micro- mullion, mullion, US gangbox and UK/Asia gangbox
• Supports unique illumination for notifications
• Selectable Wiegand output formats using the CS-CCT Card Configuration Tool
• Sleek and modern design
• Customizable control and status lines available with CS-CCT Card Configuration Tool
• Optical wall tamper detection
• IP65 rated and made of tough polycarbonate UV-resistant plastic
• Comes with mounting template and installation kit for easy installation *Please refer to NFC App data sheet for further information
