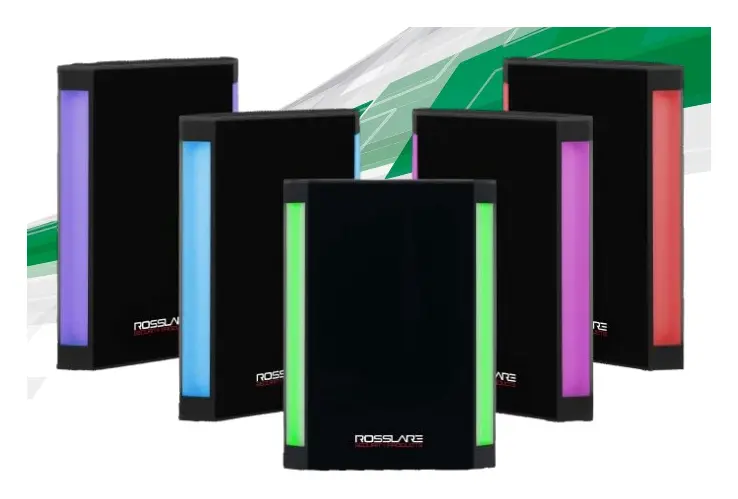

Rosslare AY-R12 Outdoor RGB Illuminated Reader Kart Okuyucu

The AY-R12 RGB Illuminated Reader presents a new concept in the security market where readers display ambiance modes preconfigured by the organization. The reader is wired to the controller and can be controlled by any panel to display colors at specified events via control inputs that connect to the host relay outputs. This advanced reader adds a dramatic effect to any style-conscious environment.

The AY-R12 RGB Illuminated Reader is able to produce red, green, magenta, purple, or blue illumination according to input control managed by the access control system. For example, the reader can project a green light when everything is normal and a red light in case of emergency.

The reader is compatible with any controller that supports the Wiegand 26-Bit protocol. The panel links are used to set various conditions between events and outputs to get the required illumination from the reader.

Main Features

• Stylish and practical application adds color to any environment enabling high quality high-tech atmosphere presents a new concept in the security modes preconfigured by the controller and can be controlled by events via control inputs that connect reader adds a dramatic effect to any
• Seven different colors to create a unique ambience
• 16 pre-programmed color schemes, enabled using 4 wired inputs
• Optical back tamper sends a signal to the control panel when removed from wall or housing opened
• Built-in 125 kHz reader for EM type RFID cards with a read range of up to 8 cm (3.1 in.)

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.
