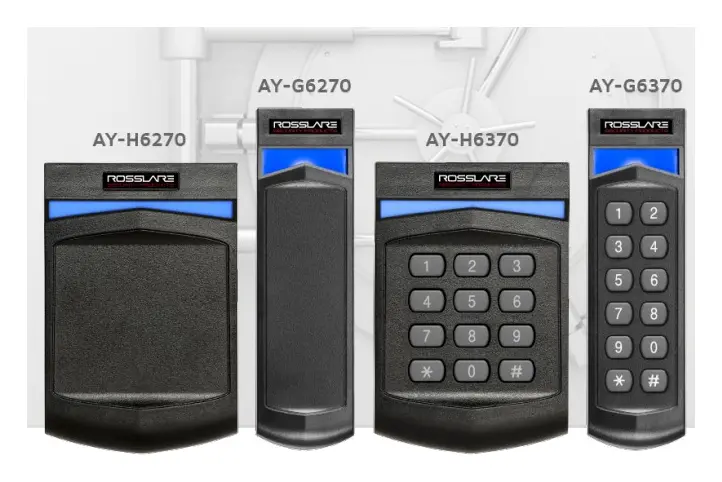

Rosslare AY-H6370 Series Open to Secure (O2S) Readers Kart Okuyucu

ModelAY-H6370

Rosslare AY-H6370 kart okuyucu: Contactless smart card reader (13.56 MHz), Meets ISO14443 Type A Standard, AES 128-bit encryption during transmission, Reads O2S ID data from O2S credentials, Reads CSN of non-O2S credentials.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Contactless smart card reader (13.56 MHz)
Meets ISO14443 Type A Standard
AES 128-bit encryption during transmission
Reads O2S ID data from O2S credentials
Reads CSN of non-O2S credentials
Output formats:
Wiegand (per format on O2S credential)
OSDP via RS-485 (selected models)

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 2 satır

Çalışma Gerilimi Aralığı	6 to 16 VDC
Input Current at 12V	Standby: 85 mA, Maximum: 110 mA

Çalışma Özellikleri 10 satır

Read Range (secure credential memory)	AY-H6xx0 AY-G6xx0
MIFARE Classic EV1	40 to 45 mm (1.5 to 1.8 in.) 40 to 45 mm (1.5 to 1.8 in.)
MIFARE Plus	25 mm (1 in.) 30 mm (1.2 in.)
LED Kontrolü	Two Inputs: Green LED CTL and RED LED CTL – TTL
Auxiliary Input	Buzzer CTL or Hold CTL – TTL
Auxiliary Output	Tamper Output (OC, active low, max. sink current 30 mA)
Supported Protocol	Wiegand OSDP Secure Channel V2
Çıkış Formatı	O2S - Preprogrammed key (per format on O2S credential) Custom - Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available
Kontrolöre Maks. Kablo Mesafesi	Wiegand: 150 m (500 ft) with 18-AWG cable OSDP (RS-485): 1200 m (4,000 ft) with 2x2 18-AWG twisted shielded cable
Compatible Cards	MIFARE Plus X/S (2K, 4K) and MIFARE EV1 Classic (1K, 4K)

Çevresel Özellikler 6 satır

Çalışma Sıcaklığı	-31ºC to 63ºC (-24ºF to 145ºF)
Çalışma Nemi	0% to 95% (non-condensing)
Outdoor Usage	Weather-resistant, epoxy potted, suitable for outdoor use UV-resistant, epoxy-potted, suitable for indoor and outdoor use
Kullanım Ortamı	IP68 water and dust resistant AY-G6270 and AY-H6270 pigtail models IP65 water and dust resistant AY-G6270 and AY-H6270 terminal block models
Darbe Dayanımı (Vandal)	AY-G6370 and AY-H6370 IK08
Antimikrobiyal Etkinlik	Inhibits bacteria proliferation by up to 99.9%

Fiziksel Özellikler 6 satır

Dimensions of Pigtail Models (H x W x D)	AY-G6x70: 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) AY-H6x70: 120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.)
Dimensions of Terminal Block and OSDP Models (H x W x D)	AY-G6x70: 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) AY-H6x70: 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.)
Ağırlık	AY-G6x70: 155 g (5.5 oz) AY-H6x70: 217 g (7.7 oz)
Interoperability:The AY-G/H6x70 readers	are compatible with Rosslare's controllers and many other third-party
Product Warranty: 5-year limited product	warranty
For more information	regarding support, visit https://support.rosslaresecurity.com. 3

Genel bakış

Rosslare AY-H6370 kullanım alanları ve özellikleri.

Introduction General Description Main Features www.rosslaresecurity.com

Rosslare’s Open to Secure (O2S) family of readers are highly flexible smart card readers that redefine ease of use and high security for RFID access control solutions. The readers support reading from and writing to the secure memory of the world’s most accepted RFID technologies –MIFARE Plus and MIFARE Classic EV1.

With MIFARE Plus credentials, you have access to the highest levels of cryptographic security with support for 128-bit AES encrypted communications between reader and credential. With O2S preprogrammed readers and credentials, you can have the highest level of secure access control solutions right out of the box.

The AY-x6x70 and credentials can also come with distinct custom keys and security configuration from the factory.

Choose from a variety of standard configurations to get the functionality that you need – US/UK/Asia or mullion mount, proximity only or proximity & keypad authentication, pigtail or terminal block termination, and multi-format Wiegand or OSDP outputs. You can customize the reader to meet your requirements for maximum configuration flexibility.

www.rosslaresecurity.com 1 The AY-x6x70 readers read secure O2S ID data and CSN from MIFARE Classic EV1 credentials.

Main Features

Contactless smart card reader (13.56 MHz)
Meets ISO14443 Type A Standard
AES 128-bit encryption during transmission
Reads O2S ID data from O2S credentials
Reads CSN of non-O2S credentials
Output formats:
Wiegand (per format on O2S credential)
OSDP via RS-485 (selected models)
RGB multicolor light indicator
Blue backlit tact switch keypad
IP68 water and dust resistant for AY-x6270 pigtail models
IP65 water and dust resistant for AY-x6270 terminal block models and AY-x6370 models
IK08 vandal resistant for all AY-x6x70 models
Optical back tamper sensor
Two LED control and buzzer control inputs
Pigtail or terminal block connectivity
Antimicrobial technology reduces level of microbes on reader by up to 99.99%.

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

Contactless smart card reader (13.56 MHz)
Meets ISO14443 Type A Standard
AES 128-bit encryption during transmission
Reads O2S ID data from O2S credentials
Reads CSN of non-O2S credentials
Output formats:
Wiegand (per format on O2S credential)
OSDP via RS-485 (selected models)
RGB multicolor light indicator
Blue backlit tact switch keypad
IP68 water and dust resistant for AY-x6270 pigtail models
IP65 water and dust resistant for AY-x6270 terminal block models and AY-x6370 models
IK08 vandal resistant for all AY-x6x70 models
Optical back tamper sensor
Two LED control and buzzer control inputs

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AY-H6370

Sık sorulanlar

AY-H6370 hakkında kısa yanıtlar.

AY-H6370 fiyatı ne kadar?

AY-H6370 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
