Rosslare AY-G6380 Series Open to Secure (O2S) Readers Kart Okuyucu

Introduction General Description Main Features www.rosslaresecurity.com

Rosslare’s Open to Secure (O2S) family of readers are highly flexible smart card readers that redefine ease of use and high security for RFID access control solutions. The readers support reading from and writing to the secure memory of the world’s most accepted RFID technologies – MIFARE DESFire EV1 and MIFARE Classic EV1.

With MIFARE DESFire EV1 credentials, you have access to the highest levels of cryptographic security with support for 128-bit AES encrypted communications between reader and credential. With O2S preprogrammed readers and credentials, you can have the highest level of secure access control solutions right out of the box.

The AY-x6x80 can be configured using a configuration card that can be programmed using the CP-R27 desktop programmer.

The AY-x6x80 lets you use custom secured credentials.

These credentials can be programmed at the customer site using the CP-R27 desktop programmer.

The AY-x6x80 supports SIA Open Supervised Device Protocol (OSDP V2) including SCP mode (Secured Channel Protocol).

The AY-x6x80 and credentials can also come with distinct custom keys and security configuration from the factory.

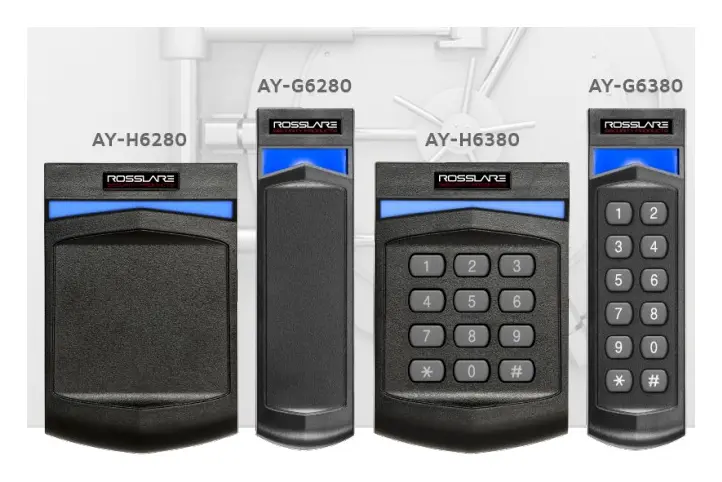

Choose from a variety of standard configurations to get the functionality that you need – US/UK/Asia or mullion mount, proximity only or proximity & keypad authentication, pigtail or terminal block termination, and multi-format Wiegand or OSDP outputs. You can customize the reader to meet your requirements for maximum configuration flexibility.

www.rosslaresecurity.com 1 The AY-x6x80 readers read secure O2S ID data and CSN from MIFARE Classic EV1 credentials.

Main Features

• Contactless smart card reader (13.56 MHz)
• Meets ISO14443 Type A Standard
• AES 128-bit encryption during transmission
• Uses NXP SAM AV2 for identity and communication cryptography
• Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security
• Reads O2S ID data from O2S credentials
• Reads CSN of non-O2S credentials
• Output formats:
• Wiegand (per format on O2S credential)
• OSDP via RS-485 (selected models)
• RGB multicolor light indicator
• Blue backlit tact switch keypad
• IP68 water and dust resistant for AY-x6280 pigtail models
• IP65 water and dust resistant for AY-x6280 terminal block models and AY-x6380 models
• IK08 vandal resistant for all AY-x6x80 models
• Optical back tamper sensor
• Two LED control and buzzer control inputs
• Pigtail or terminal block connectivity
• Antimicrobial technology reduces level of microbes on reader by up to 99.99%.

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• Contactless smart card reader (13.56 MHz)
• Meets ISO14443 Type A Standard
• AES 128-bit encryption during transmission
• Uses NXP SAM AV2 for identity and communication cryptography
• Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security
• Reads O2S ID data from O2S credentials
• Reads CSN of non-O2S credentials
• Output formats:
• Wiegand (per format on O2S credential)
• OSDP via RS-485 (selected models)
• RGB multicolor light indicator
• Blue backlit tact switch keypad
• IP68 water and dust resistant for AY-x6280 pigtail models
• IP65 water and dust resistant for AY-x6280 terminal block models and AY-x6380 models
• IK08 vandal resistant for all AY-x6x80 models
