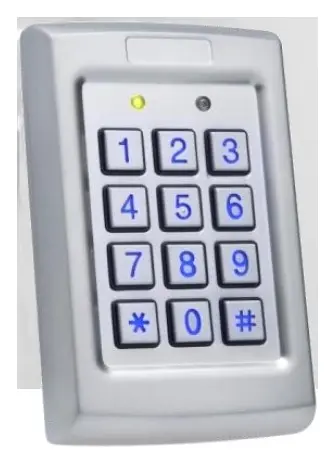

Rosslare AC-Q41 Standalone Controller Bağımsız Geçiş Kontrol Ünitesi
Aksesuar

Rosslare AC-Q41 Standalone Controller Bağımsız Geçiş Kontrol Ünitesi

ModelAC-Q41

Rosslare AC-Q41 bağımsız geçiş kontrol ünitesi: Optical tamper detection, Automatic internal heater prevents key freeze at -20 ˚C (4 ˚F), 10 programmable modes for auxiliary input and output (2 Amp Form C Relay), 2 Amp Form C Lock Strike Relay, for fail-safe and fail-secure, with input for REX, Supports: Do.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Optical tamper detection
  • Automatic internal heater prevents key freeze at -20 ˚C (4 ˚F)
  • 10 programmable modes for auxiliary input and output (2 Amp Form C Relay)
  • 2 Amp Form C Lock Strike Relay, for fail-safe and fail-secure, with input for REX
  • Supports: Door Ajar, Forced, Shunt, Monitor, and Secure mode
  • Doorbell key feature operation (from '*' key), with Rosslare's BL-D40 accessory

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 21 satır
ElectricityAC-Q41HB AC-Q41SB
Çalışma Gerilimi AralığıRegulated power supply: 12 to 24 VDC
Input Current (Heater Off) StandbyTransformer: 16 to 24 VAC Transformer: 12 to 24 VAC 70 mA, Maximum: 130 mA, at 12 VDC
Input Current (Heater On) Standby550 mA, Maximum: 610 mA, at 12 VDC
Relay OutputsLock Strike: 2 A, N.O. and N.C. Auxiliary: 2 A, N.O. and N.C.
TamperOptical back tamper sensor, O.C. active low 32 mA max sink current
GirişlerREX: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact, 10 programmable modes
OperationsAC-Q41HB AC-Q41SB
Kapasite500 users, single / dual code each
Tuş Takımı3x4 Blue illuminated Keys for local programming and 4-to-8-digit PIN codes entry
Kullanıcı SeviyeleriNormal, Secure, Master
Güvenlik ModlarıNormal, Bypass, Secure
Sesli / Görsel GöstergeInterface for BL-D40 (bell, chime, and siren annunciator) Two tri-color LED indicators, built-in sounder
TasarımSuitable for extremely harsh environments. Rugged metal enclosure, highly Epoxy potted, fully sealed in a rugged strong construction, metallic metal enclosure, highly strong keys. construction, blue backlit metallic keys.
EnvironmentAC-Q41HB AC-Q41SB
Kullanım OrtamıIP54 IP65
Çalışma SıcaklığıBuilt-in heater to prevent key freezing: -20 °C to 60 °C (-4 °F to 140 °F)
Çalışma Nemi0 to 95 % (non-condensing)
HardwareAC-Q41HB AC-Q41SB
Boyutlar (Y x G x D)120 x 76 x 27 mm 120 x 76 x 22 mm (4.72 x 3 x 1.06 in.) (4.72 x 3 x 0.85 in.)
Ağırlık440 g (1 lb) 521 g (1.18 lb)
Genel 1 satır
Garanti2 yıl sınırlı garanti

Genel bakış

Rosslare AC-Q41 kullanım alanları ve özellikleri.

The AC-Q41 series represents advanced anti-vandal standalone access control technology designed for demanding environments. These controllers support up to 500 users and feature illuminated blue metal keys for PIN code entry. Both models in the series offer all-weather operation, flexible programming capabilities including a unique code search function for simplified user management, and non-volatile memory that protects the storage of the user database, modes, and parameters.

The series combines large backlit metal keys with built-in heaters, providing enhanced accessibility in low-light conditions and cold temperatures. The controllers are robust, reliable and durable and are available in two models.

The AC-Q41HB features a rugged metal body ideal for installation in high-traffic environments. This model includes removable terminal blocks for quick installation and utilizes advanced programming options.

The controller has an attractive profile, free from sharp edges, making it ideal for installations where style and functionality are highly important.

The AC-Q41SB features a slim metal construction designed for space-conscious installations. This model is epoxy-filled, designed to withstand the rigors of the outdoor environment, and supports advanced programming options.

The controller offers enhanced user accessibility in low-light areas through its combination of large backlit metal keys and built-in heater.

Main Features

  • Optical tamper detection
  • Automatic internal heater prevents key freeze at -20 ˚C (4 ˚F)
  • 10 programmable modes for auxiliary input and output (2 Amp Form C Relay)
  • 2 Amp Form C Lock Strike Relay, for fail-safe and fail-secure, with input for REX
  • Supports: Door Ajar, Forced, Shunt, Monitor, and Secure mode
  • Doorbell key feature operation (from '*' key), with Rosslare's BL-D40 accessory

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AC-Q41
