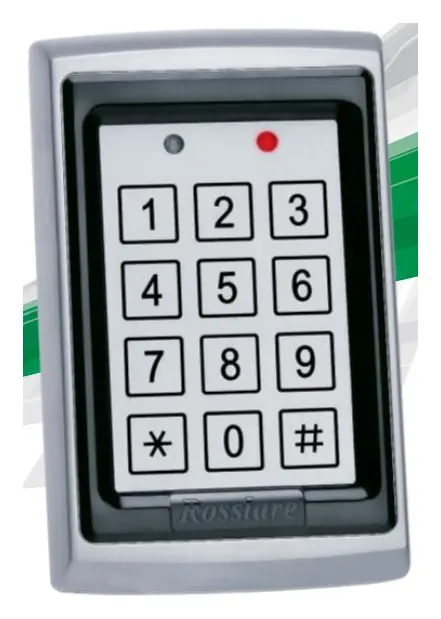

Rosslare AC-Q44 Anti-Vandal Piezo PIN & Prox Standalone Controller Bağımsız Geçiş Kontrol Ünitesi
Aksesuar

Rosslare AC-Q44 Anti-Vandal Piezo PIN & Prox Standalone Controller Bağımsız Geçiş Kontrol Ünitesi

ModelAC-Q44

Rosslare AC-Q44 bağımsız geçiş kontrol ünitesi: Built-in 125 kHz RFID card reader, 500 users can have PIN and / or RFID user credentials for granting access, Highly-sensitive Piezo metal keys, Smooth attractive design, with anti-vandal construction, Optical tamper detection.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Built-in 125 kHz RFID card reader
  • 500 users can have PIN and / or RFID user credentials for granting access
  • Highly-sensitive Piezo metal keys
  • Smooth attractive design, with anti-vandal construction
  • Optical tamper detection
  • 10 programmable modes for auxiliary input and output (2 Amp Form C Relay)
  • 2 Amp Form C Lock Strike Relay, for fail-safe and fail-secure, with input for REX
  • Supports: Door Ajar, Forced, Shunt, Monitor, and Secure mode

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 6 satır
Çalışma Gerilimi Aralığı12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer
Giriş AkımıStandby: 65 mA, at 12 VDC Maximum: 125 mA, at 12 VDC
Relay OutputsLock Strike: 2A, N.O. and N.C. Auxiliary: 2A, N.O. and N.C.
TamperOptical back tamper sensor, O.C. active low 32 mA max sink current
GirişlerREX: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact, 10 programmable modes
Proximity Kart OkuyucuMaximum read range*: 65 mm (2.5 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM Cards * Measured using Rosslare Prox Card AT-R14 or equivalent. Range also depends on electrical environment and proximity to metal.
Çalışma Özellikleri 6 satır
Kapasite500 users, single/dual code each
Tuş Takımı3x4 keys for local programming and 4- to 8-digit PIN codes entry
Kullanıcı SeviyeleriNormal, Secure, Master
Güvenlik ModlarıNormal, Bypass, Secure
Sesli / Görsel GöstergeInterface for BL-D40 (bell, chime, and siren enunciator) Two tri-color LED indicators, built-in sounder
TasarımEpoxy potted, fully sealed in a rugged metal slim enclosure, super strong construction, High-sensitive Piezo metal keys. Highly suitable for extremely harsh environments
Çevresel Özellikler 3 satır
Kullanım OrtamıWater resistant, suitable for outdoor use, IP65 rated
Çalışma Sıcaklığı-20 C to 60 C (-4 F to 140 F)
Çalışma Nemi0 to 95% (non-condensing)
Fiziksel Özellikler 2 satır
Boyutlar120 x 76 x 22 mm (4.72 x 3 x 0.85 in.)
Ağırlık521 g (1.18 lbs)
Genel 2 satır
Sistem BileşenleriA variety of Rosslare's proximity cards and tags is available for use with this unit. The AC-Q44 compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the EX-01 Push to Exit button.
Garanti5-year Limited Product Warranty

Genel bakış

Rosslare AC-Q44 kullanım alanları ve özellikleri.

The AC-Q44 anti-vandal controller has a unique combination of metallic construction with large PIEZO metal keys, and an integral 125 KHz proximity card reader.

AC-Q44 has two form C 3Amp relay outputs and 2 inputs, within a SLIM profiled potted metal housing, it is free from sharp edges ideal for installations where style, strength and performance are highly important.

This feature-rich unit offers all weather operation, with flexible programming capabilities including a unique “code search” for simple user management.

Non-volatile memory protects the storage of user database, modes and parameters.

Main Features

  • Built-in 125 kHz RFID card reader
  • 500 users can have PIN and / or RFID user credentials for granting access
  • Highly-sensitive Piezo metal keys
  • Smooth attractive design, with anti-vandal construction
  • Optical tamper detection
  • 10 programmable modes for auxiliary input and output (2 Amp Form C Relay)
  • 2 Amp Form C Lock Strike Relay, for fail-safe and fail-secure, with input for REX
  • Supports: Door Ajar, Forced, Shunt, Monitor, and Secure mode
  • Door bell key feature operation (from '*' key), with Rosslare's BL-D40 accessory

Tüm özellikler

  • Built-in 125 kHz RFID card reader
  • 500 users can have PIN and / or RFID user credentials for granting access
  • Highly-sensitive Piezo metal keys
  • Smooth attractive design, with anti-vandal construction
  • Optical tamper detection
  • 10 programmable modes for auxiliary input and output (2 Amp Form C Relay)
  • 2 Amp Form C Lock Strike Relay, for fail-safe and fail-secure, with input for REX
  • Supports: Door Ajar, Forced, Shunt, Monitor, and Secure mode
  • Door bell key feature operation (from '*' key), with Rosslare's BL-D40 accessory

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AC-Q44
