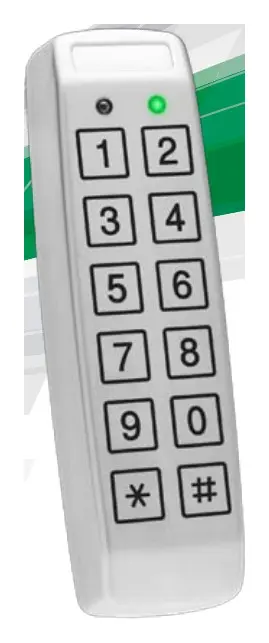

Rosslare AC-S43 Anti-Vandal Mullion Piezoelectric PIN Standalone Controller Bağımsız Geçiş Kontrol Ünitesi

This advanced anti-vandal, 500-user standalone controller is an exceptionally robust metallic unit with a highly sensitive piezoelectric keypad, suitable for PIN codes access requirements. This mullion model, with its rugged metal body and no moving parts, is ideal for high traffic and extremely harsh environments. The model is fully-sealed, epoxy-filled, and has advanced programming options, as well as flexible operation modes.

The AC-S43 is a stylish, cost effective single door PIN access control unit. It is the ideal solution for outdoor residential, commercial, and industrial applications.

The controller is standalone (no PC is required), and each user can be assigned one or two codes, effectively creating three different security levels.

Housed in a sturdy metal vandal-resistant casing and completely epoxy potted, the AC-S43 is built for indoor or outdoor use in all weather conditions.

This feature-rich unit offers flexible and easy programming capabilities including a unique “code search” for simple user management.

Main Features

• 500 PIN users
• Smooth attractive design, with anti-vandal casing
• Highly-sensitive piezoelectric metal keys
• 3 operational security levels can be selected with special PIN codes
• Supports up to 8-digit PIN codes, with timed wrong code lockout after 3 wrong attempts Standalone Controller controller is an exceptionally piezoelectric keypad, suitable for model, with its rugged metal body traffic and extremely harsh epoxy-filled, and has advanced operation modes.
• 2 tri-colored LEDs and integral sounder for programming and operation
• Wide range of low voltage AC/DC power input
• 10 programmable modes for auxiliary input and output (3 A Form C Relay)
• 3 A Form C Lock Strike Relay for fail-safe and fail- secure
• Two inputs: REX and Auxiliary
• Supports: Door Ajar, Forced, Shunt, Monitor, and Secure modes
• Doorbell key feature operation (with '*' bell key), with Rosslare's BL-D40 accessory
• Meets IP68 for outdoor use

Tüm özellikler

• 500 PIN users
• Smooth attractive design, with anti-vandal casing
• Highly-sensitive piezoelectric metal keys
• 3 operational security levels can be selected with special PIN codes
• Supports up to 8-digit PIN codes, with timed wrong code lockout after 3 wrong attempts Standalone Controller controller is an exceptionally piezoelectric keypad, suitable for model, with its rugged metal body traffic and
• 2 tri-colored LEDs and integral sounder for programming and operation
• Wide range of low voltage AC/DC power input
• 10 programmable modes for auxiliary input and output (3 A Form C Relay)
• 3 A Form C Lock Strike Relay for fail-safe and fail- secure
• Two inputs: REX and Auxiliary
• Supports: Door Ajar, Forced, Shunt, Monitor, and Secure modes
• Doorbell key feature operation (with '*' bell key), with Rosslare's BL-D40 accessory
• Meets IP68 for outdoor use
