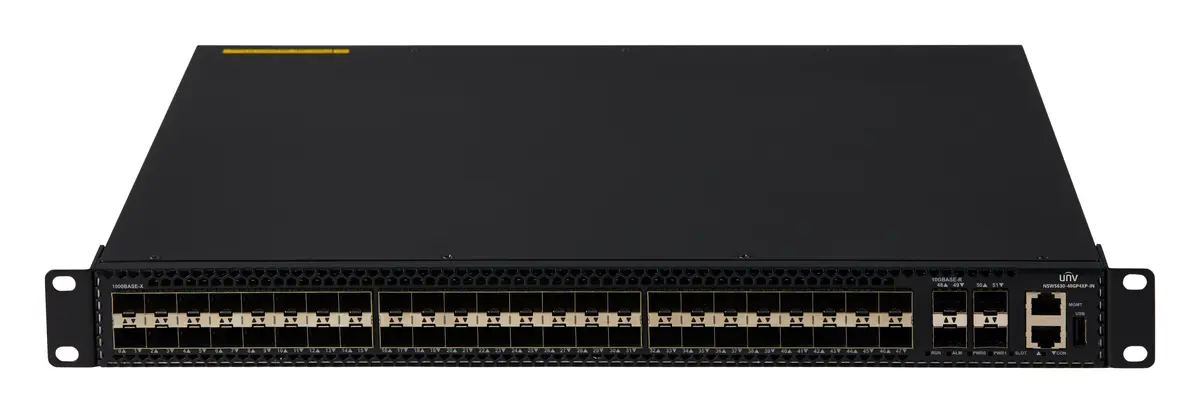

Uniview NSW5630-48GP4XP-IN 48 Port L3 Omurga (Core) Switch

ModelNSW5630-48GP4XP-IN

Uniview NSW5630-48GP4XP-IN, 48 portlu gigabit bir yönetilebilir switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High performance port density scalability. With maximum of Nx10-Gigabit optical interfaces and flexibly scalable Gigabit interfaces, the 5630 series is a full wire-speed interconnection solution with the highest cost-eff
Virtual Switching Matrix (VSM). The 5630 series adopts Virtual Switching Matrix (VSM) technology, which performs virtualization of multiple physical devices into a single logical device for unified configuration and mana
Multiple services. The 5630 series supports multiple protocols such as IGMP, IGMP Snooping, GMRP, and PIM. It supports large-scale multicast entries to fully satisfy the requirements of IP HD video surveillance and other
Sound security control policy. The 5630 series provides multiple centralized authentication modes based on MAC address, 802.1x. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN,
Guaranteed high reliability. Compatible with fast ring network recovery protocol (FRRP) and fast link recovery protocol (FLRP), the 5630 series provides a self-recovery performance of less than 20 milliseconds.
Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, the 5630 series provides CLI command lines and a Web management interface.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Model	NSW5630-48GP4XP-IN
Ürün Tanımı (Üretici)	48 Port Full Optical Layer 3 Switch

Donanım Özellikleri 13 satır

Port Tipi	481Gbps SFP + 410Gbps SFP+
Anahtarlama Kapasitesi	176Gbps
İletim Performansı	130.944Mpps
MAC Adres Tablosu	32K
Jumbo Frame	9216
Gösterge	RUN, ALM, PWR0, PWR1, LINK/ACT
Güç Kaynağı	AC: 100V to 240V AC, 50/60Hz, 2A.; Dual Power Supply with Hot Swap function
Maks. Güç	100W
Soğutma Fanı	1
Çalışma Sıcaklığı	0℃ to 45℃
Boyutlar (G×D×Y)	440×400×44 mm
Ağırlık	4.7kg
Çalışma Nemi	5% to 95%, non-condensing

Yazılım Özellikleri 12 satır

MAC Adres Tablosu	Supports 32K MAC entries; Support static MAC, dynamic MAC, black hole MAC, source MAC address filtering
Ethernet	Support port aggregation, port mirroring, port isolation, port traffic identification, RSPAN, unknown unicast suppression, multicast storm suppression, broadcast storm suppression
Virtualization	Support VSM virtualization
VLAN	Supports 4K VLAN; Supports VLAN based on MAC/IP subnet/authentication policy/port/protocol; Support Guest VLAN, PVLAN; Support QinQ, flexible QinQ, VLAN MAPPING, GVRP
IP Route	IPv4: Static routing, RIP v1/2, OSPF, ISIS, policy-go-together, etc.; IPv6: IPv6 static routing, RIPng, OSPFv3, BGP4+, ISISv6, transition tunnel technology from IPv4 to IPv6, etc.
Maintenance	Support RMON; Support OAM; Support NTP; Support power supply, fan, temperature alarm; Support ULDP (Unidirectional Link Detection Protocol) Unidirectional Link Detection Protocol; Support SNMP, CLI, Web network management; Support local and remote output such as system log, operation log, debugging information, etc.; Support interface and static route configuration description function; Support command line to switch the working mode of Layer 2/Layer 3 interface (any interface)
Güvenlik	Support local and centralized authentication based on MAC address; Support local and centralized authentication based on 802.1x; Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection;; Supports CPU load protection, enhances the device's anti-attack capability, and ensures stable network operation; Support port isolation, Static Port Access Control; Support broadcast storm suppression; Support SSH2.0
QoS	Support traffic classification based on 802.1p/DSCP/TOS; Support speed limit on ports and streams; Support SP, WRR, SP + WRR queue scheduling
ACL	Support ACL based on VLAN, MAC address, IP address, TCP/UDP port number, etc.
Reliability	Support STP, RSTP, MSTP, FRRP, FLRP, ERPS Ethernet ring protection protocol (G.8032)
DHCP	Support DHCP Client, DHCP Server, DHCP Relay, DHCP Snooping
Multicast	Support GMRP v1/v2/v3, IGMP Proxy; Support IGMP Snooping v1/v2/v3, MLD v1/v2, MLD Snooping v1/v2; Support PIM-SM, PIM-SSM, PIM-DM

Genel bakış

Uniview NSW5630-48GP4XP-IN kullanım alanları ve özellikleri.

Uniview NSW5630-48GP4XP-IN, 48 Port L3 omurga (core) switch modelidir. Öne çıkanlar: portlar 48*1Gbps SFP + 4*10Gbps SFP+.

Üretici tanımı: 48 Port Full Optical Layer 3 Switch

Öne Çıkan Özellikler

High performance port density scalability. With maximum of Nx10-Gigabit optical interfaces and flexibly scalable Gigabit interfaces, the 5630 series is a full wire-speed interconnection solution with the highest cost-effectiveness.
Virtual Switching Matrix (VSM). The 5630 series adopts Virtual Switching Matrix (VSM) technology, which performs virtualization of multiple physical devices into a single logical device for unified configuration and management.
Multiple services. The 5630 series supports multiple protocols such as IGMP, IGMP Snooping, GMRP, and PIM. It supports large-scale multicast entries to fully satisfy the requirements of IP HD video surveillance and other multicast services.
Sound security control policy. The 5630 series provides multiple centralized authentication modes based on MAC address, 802.1x. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN, and interface.
Guaranteed high reliability. Compatible with fast ring network recovery protocol (FRRP) and fast link recovery protocol (FLRP), the 5630 series provides a self-recovery performance of less than 20 milliseconds.
Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, the 5630 series provides CLI command lines and a Web management interface.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NSW5630-48GP4XP-IN Managed Ethernet Switch.pdfPDF · NSW5630-48GP4XP-IN

Sık sorulanlar

NSW5630-48GP4XP-IN hakkında kısa yanıtlar.

NSW5630-48GP4XP-IN kaç portlu?

NSW5630-48GP4XP-IN 48 porta sahiptir.

NSW5630-48GP4XP-IN fiyatı ne kadar?

NSW5630-48GP4XP-IN için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
