Uniview

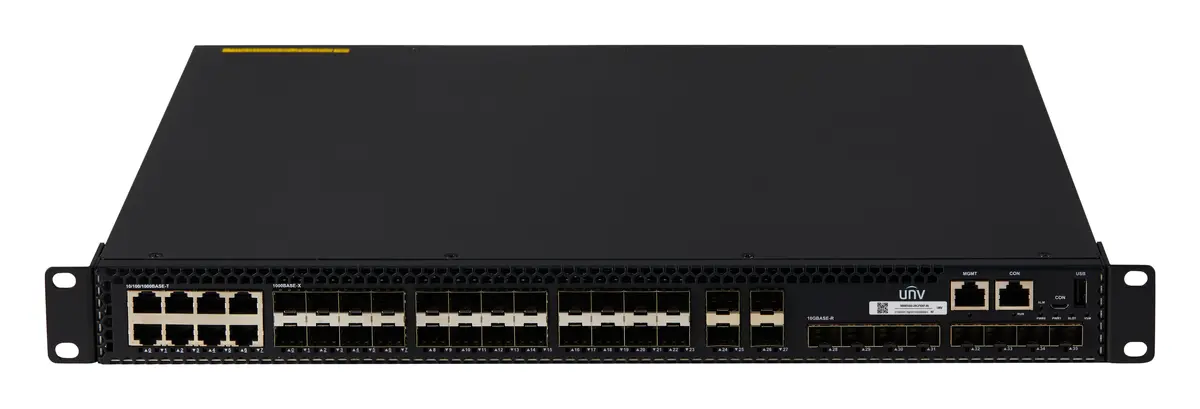

Uniview NSW5660-28GP8XP-IN 28 Port Gigabit Yönetilebilir Switch

ModelNSW5660-28GP8XP-IN

Uniview NSW5660-28GP8XP-IN, 28 portlu gigabit bir yönetilebilir switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 28 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High performance port density scalability. With maximum of 8x10-Gigabit optical interfaces and flexibly scalable Gigabit interfaces, NSW5660 Series is a full wire-speed interconnection solution with the highest cost-effe
Virtual Switching Matrix (VSM). The NSW5660 series adopts Virtual Switching Matrix (VSM) technology, which performs virtualization of multiple physical devices into a single logical device for unified configuration and m
Multiple services. The NSW5660 series supports multiple protocols such as IGMP, IGMP Snooping, GMRP, and PIM. It supports large-scale multicast entries to fully satisfy the requirements of IP HD video surveillance and ot
Sound security control policy. The NSW5660 series provides multiple centralized authentication modes based on MAC address, 802.1x. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VL
Guaranteed high reliability. Compatible with fast ring network recovery protocol (FRRP) and fast link recovery protocol (FLRP), the NSW5660 series provides a self-recovery performance of less than 20 milliseconds.
Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, the NSW5660 series provides CLI command lines and a Web management interface.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Model	NSW5660-28GP8XP-IN
Ürün Tanımı (Üretici)	28 Port Gigabit Optical+8 Port 10 Gigabit Optical Switch

Donanım Özellikleri 11 satır

Gösterge	PWR0, PWR1, ALM, RUN, SLOT, VSM, LINK/ACT
Jumbo Frame	9K
Soğutma Fanı	2
Çalışma Sıcaklığı	0℃ to 45℃
Güç Kaynağı	AC：100V to 240V AC，50/60Hz, 1.5A
Maks. Güç	90W
Çalışma Nemi	5 to 95%RH, noncondensing
Port Tipi	20×1000M SFP+8×1000M Combo+8×10G SFP+
Anahtarlama Kapasitesi	216Gbps
İletim Performansı	160.7Mpps
Ağırlık	4.80kg

Yazılım Özellikleri 12 satır

MAC Adres Tablosu	Supports 128K MAC entries; Support static MAC, dynamic MAC, black hole MAC, source MAC address filtering
Ethernet	Support port aggregation, port mirroring, port isolation, port traffic identification, RSPAN, unknown unicast suppression, multicast storm suppression, broadcast storm suppression
Virtualization	Support VSM virtualization
VLAN	Supports 4K VLAN; Supports VLAN based on MAC/IP subnet/authentication policy/port/protocol; Support Guest VLAN, PVLAN; Support QinQ, flexible QinQ, VLAN MAPPING, GVRP
IP Route	IPv4: Static routing, RIP v1/2, OSPF, ISIS, policy-go-together, etc.; IPv6: IPv6 static routing, RIPng, OSPFv3, BGP4+, ISISv6, transition tunnel technology from IPv4 to IPv6, etc.
Maintenance	Support RMON; Support OAM; Support NTP; Support power supply, fan, temperature alarm; Support ULDP (Unidirectional Link Detection Protocol) Unidirectional Link Detection Protocol; Support SNMP, CLI, Web network management; Support local and remote output such as system log, operation log, debugging information, etc.; Support interface and static route configuration description function; Support command line to switch the working mode of Layer 2/Layer 3 interface (any interface)
Güvenlik	Support local and centralized authentication based on MAC address; Support local and centralized authentication based on 802.1x; Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection;; Supports CPU load protection, enhances the device's anti-attack capability, and ensures stable network operation; Support port isolation, Static Port Access Control; Support broadcast storm suppression; Support SSH2.0
QoS	Support traffic classification based on 802.1p/DSCP/TOS; Support speed limit on ports and streams; Support SP, WRR, SP + WRR queue scheduling
ACL	Support ACL based on VLAN, MAC address, IP address, TCP/UDP port number, etc.
Reliability	Support STP, RSTP, MSTP, FRRP, FLRP, ERPS Ethernet ring protection protocol (G.8032)
DHCP	Support DHCP Client, DHCP Server, DHCP Relay, DHCP Snooping
Multicast	Support GMRP v1/v2/v3, IGMP Proxy; Support IGMP Snooping v1/v2/v3, MLD v1/v2, MLD Snooping v1/v2; Support PIM-SM, PIM-SSM, PIM-DM

Genel bakış

Uniview NSW5660-28GP8XP-IN kullanım alanları ve özellikleri.

Uniview NSW5660-28GP8XP-IN, 28 Port Gigabit yönetilebilir switch modelidir. Öne çıkanlar: portlar 20×1000M SFP+8×1000M Combo+8×10G SFP+.

Üretici tanımı: 28 Port Gigabit Optical+8 Port 10 Gigabit Optical Switch

Öne Çıkan Özellikler

High performance port density scalability. With maximum of 8x10-Gigabit optical interfaces and flexibly scalable Gigabit interfaces, NSW5660 Series is a full wire-speed interconnection solution with the highest cost-effectiveness.
Virtual Switching Matrix (VSM). The NSW5660 series adopts Virtual Switching Matrix (VSM) technology, which performs virtualization of multiple physical devices into a single logical device for unified configuration and management.
Multiple services. The NSW5660 series supports multiple protocols such as IGMP, IGMP Snooping, GMRP, and PIM. It supports large-scale multicast entries to fully satisfy the requirements of IP HD video surveillance and other multicast services.
Sound security control policy. The NSW5660 series provides multiple centralized authentication modes based on MAC address, 802.1x. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN, and interface.
Guaranteed high reliability. Compatible with fast ring network recovery protocol (FRRP) and fast link recovery protocol (FLRP), the NSW5660 series provides a self-recovery performance of less than 20 milliseconds.
Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, the NSW5660 series provides CLI command lines and a Web management interface.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NSW5660-28GP8XP-IN Managed Ethernet Switch.pdfPDF · NSW5660-28GP8XP-IN

Sık sorulanlar

NSW5660-28GP8XP-IN hakkında kısa yanıtlar.

NSW5660-28GP8XP-IN kaç portlu?

NSW5660-28GP8XP-IN 28 porta sahiptir.

NSW5660-28GP8XP-IN fiyatı ne kadar?

NSW5660-28GP8XP-IN için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
