Teletek DUCT Detector Adresli Kanal Tipi Duman Dedektörü

Teletek DUCT Detector, adresli kanal tipi duman dedektörüdür.

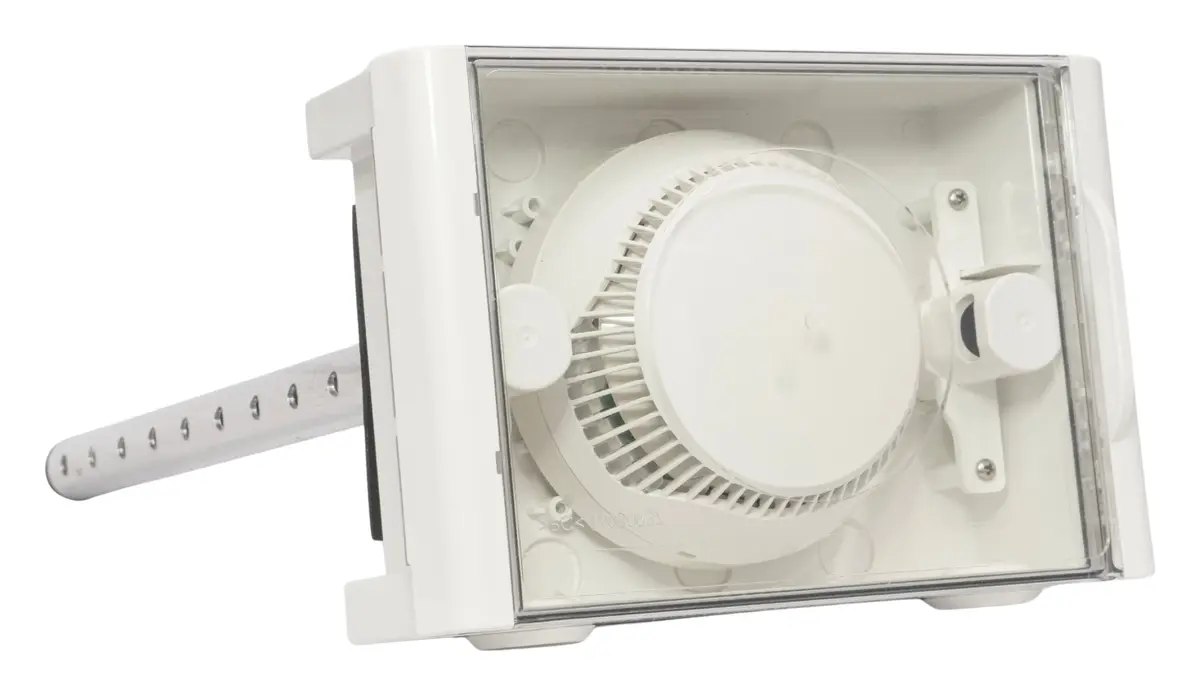

DUCT Detector is a housing designed for smoke detection inside HVAC ductwork. Air from the duct passes through the housing, allowing a compatible optical smoke detector to monitor it for smoke particles.

The same housing can be used in either addressable or conventional fire alarm systems. For addressable installations, it works with the SensoIRIS B124 base and SensoIRIS S130 detector. For conventional systems, it supports the SensoMAG B24 base with the SensoMAG S30 detector.

A transparent lid keeps detector status visible and provides easy access for inspection. The housing is supplied with a 27 cm sampling pipe, 27 cm outlet pipe and mounting gasket.

Why Choose DUCT Detector?

Addressable or Conventional
Use the same housing with compatible SensoIRIS or SensoMAG smoke detection, depending on the fire alarm system architecture.

Detection Inside the Airflow
The housing draws air from the HVAC duct across the installed smoke detector, extending fire detection into ventilation systems.

Accessible for Inspection
The transparent cover provides detector-status visibility, while the housing is designed for straightforward access during inspection and maintenance.

At a Glance

• Smoke detection housing for HVAC ductwork
• Addressable and conventional system options
• Compatible with SensoIRIS S130 and B124
• Compatible with SensoMAG S30 and B24
• Transparent lid for status visibility
• Easy-access housing
• 27 cm sampling and outlet pipes included
• Mounting gasket included

Nerelerde kullanılır?

Yangını duman veya ısı artışıyla en erken aşamada algılayarak yangın alarm paneline bildirir; tahliye için kritik zaman kazandırır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
