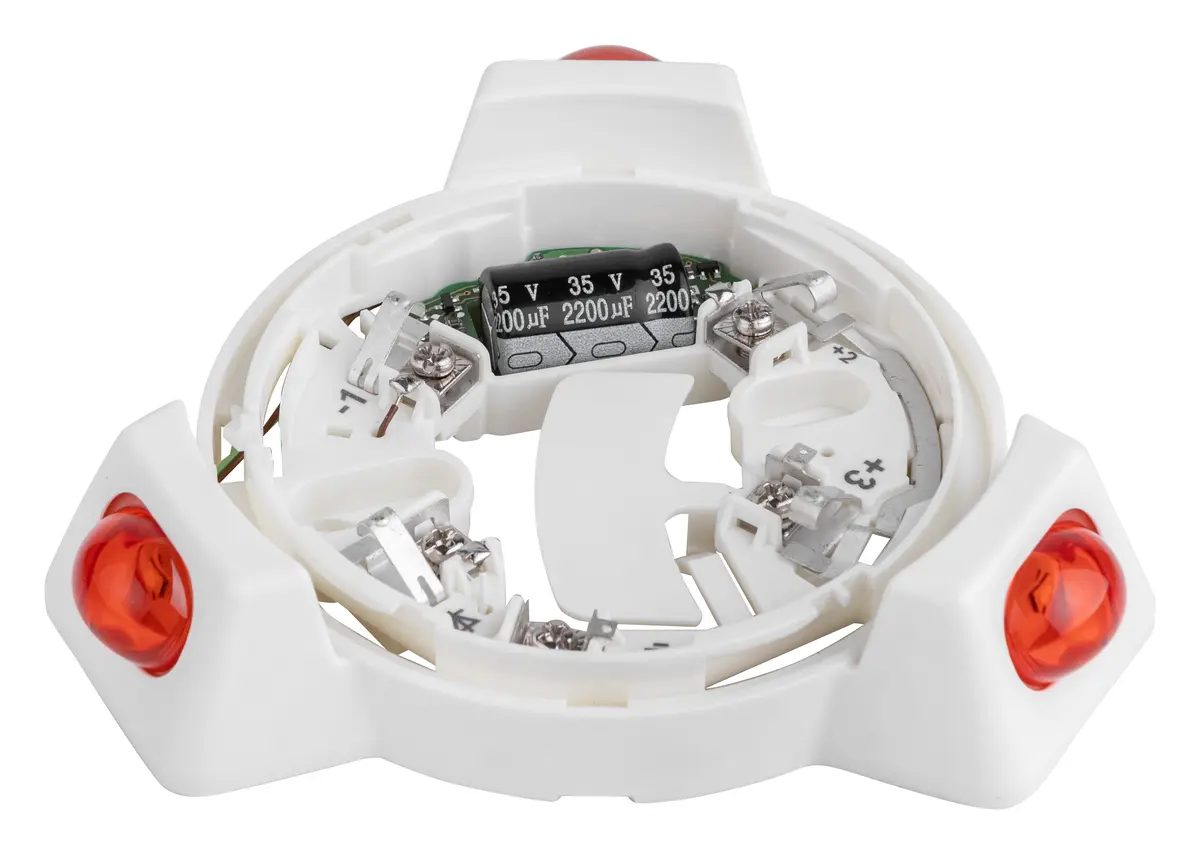

Teletek SensoIRIS VAD RST Adresli Flaşörlü Dedektör Soketi

Teletek SensoIRIS VAD RST, adresli flaşörlü dedektör soketidir. Öne çıkanlar: EN 54-23 uyumlu.

SensoIRIS VAD RST is EN54-23 approved base with with built-in red LED flash beacons.

The base is specially designed for use with analogue-addressable sounders SensoIRIS CSOU and SensoIRIS CSOU IS, as expands their application in fire alarm installations providing additional visual indication in case of fire alarm events.

The activation of LED flashers in case of fire alarm event is automatic and there is no need of any additional connections between the base and sounder.
SensoIRIS VAD RST is equipped with a special info plate for placing an analogue-addressable or write down specific information for the device.

• Compatible with SensoIRIS CSOU / CSOU IS sounders
• Protection Degree – IP21C (with mounted sounder)
• Wire gauge for terminals – 0.4 – 1.5mm²
• Loop powered
• Does not require a separate loop address
• Special info plate (size 45x15mm) for placing a sticker with device address / name

Nerelerde kullanılır?

Yangını duman veya ısı artışıyla en erken aşamada algılayarak yangın alarm paneline bildirir; tahliye için kritik zaman kazandırır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
