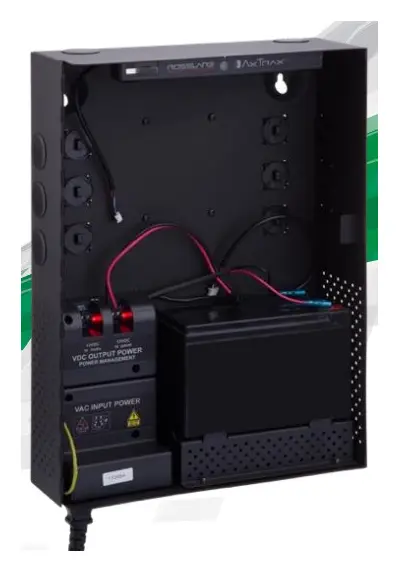

Rosslare ME-1015 Secure Power Management Enclosure for AC-215x, AC-225x, and AC-425x Güç Kaynağı Kabini

ModelME-1015

Rosslare ME-1015 güç kaynağı kabini: Global input voltage – 90 VAC to 265 VAC 50/60Hz auto select. Rosslare can provide versions with C14 power plugs for any country., Delivers two isolated 13.8 VDC power @ 2 A output channels with PTC resettable fuse and LED indications (4 A total), Built-in pow.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Global input voltage – 90 VAC to 265 VAC 50/60Hz auto select. Rosslare can provide versions with C14 power plugs for any country.
Delivers two isolated 13.8 VDC power @ 2 A output channels with PTC resettable fuse and LED indications (4 A total)
Built-in power event generation to let the control panels and the AxTraxNG or AxTraxPro Access Control Management Software receive power supply and UPS events
Built-in Rosslare LightBar™ for lighting the way during maintenance and installation
Full system hinge and key lock unit (including 2 keys), thick high-quality oven baked black matte coating
Silk screen of all the connections on inside of door
Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 7 satır

Switch Mode PS Input Voltage	90 ~ 265 VAC, 50 ~ 60 Hz from main power Maximum input current: 1.5 A
Switch Mode PS Output Voltage	15 VDC, 4 A (60 Watts) to the PM-10 power management board
Power Output from PM-10	Two isolated PTC fused outputs, each provides 13.8 VDC, 2 A Output 1 – 13.8 VDC @ 2 A regulated to ACU and peripheral devices Output 2 – 13.8 VDC @ 2 A for locking hardware
Battery Charger Output	13.8 VDC, 300 mA for 12 VDC, 7 Ah lead acid battery
Built-In Speaker (Audio Indication)	0.5-Watt, 8 Ohm
LED Indicators	2 LED for power outputs 1 and 2 Green LED shows power status visible when case is closed
Light Bar / Tamper Switch	0.3 Watt for LED light bar

Çevresel Özellikler 2 satır

Çalışma Sıcaklığı	0°C to 49°C (32°F to 120°F)
Çalışma Nemi	0 to 85% (non-condensing)

Fiziksel Özellikler 3 satır

Lock Type	Mini-cylinder lock with 2 keys
Enclosure Dimensions	364 x 264 x 97 mm (14.4 x 10.4 x 3.8 in.)
Ağırlık	3.3 kg (7.3 lb)

Genel 2 satır

Sipariş Kodları	The ME-1015 enclosure can be ordered as a standalone enclosure, or pre-mounted with any of the control panels: AC-425IP-B, AC-425-B – Models installed in ME-1015 enclosure AC-225IP-B, AC-225-B – Models installed in ME-1015 enclosure AC-215IP-B, AC-215-B – Models installed in ME-1015 enclosure
Garanti	2-year limited product warranty

Genel bakış

Rosslare ME-1015 kullanım alanları ve özellikleri.

The ME-1015 power management enclosure is a lockable metal cabinet with an innovative 15 V, 4 Amp power supply featuring a UPS circuit designed to fit and power Rosslare’s 425x, 225x, and 215x series of access control panels. The enclosure has a built-in speaker for generating audio alerts from the panels and features the Rosslare PowerLock™ and the Rosslare LightBar™ utility light. The enclosure provides a premium solution to plug-n-play systems ease of setup and provides long-term reliable performance for value and peace of mind when installing Rosslare access controllers.

The ME-1015 power management enclosure is a lockable metal cabinet designed to fit and power-up Rosslare’s 425x, 225x, and 215x series of access control panels. The ME-1015 features a high-capacity switch mode power supply, which produces regulated 15 VDC with up to 4 A (60 Watts) output.

The power management board converts this power to two isolated output power channels with 13.8 VDC @ 2 Amp each, with independent PTC resettable fused outputs and a LED indicator per channel.

The unit features a UPS backup battery charger for a lead acid battery of up 12 V and 7 Ah. Power status events can be seen by Rosslare’s AxTraxNG™ or AxTraxPro™ Access Control Management Software, including mains power status and UPS battery events and restoral. The enclosure has a built-in speaker for generating audio alerts from the panels. The Rosslare PowerLock™ features a lockable C13 power cord socket, which prevents unintentional disconnection of the power cord, and the Rosslare LightBar™ utility light for helping installers in dark working conditions.

ME-1015 ME-1015 Enclosure AC-425IP-DIN (battery not included) lockable metal cabinet with an innovative 15 designed to fit and power Rosslare’s 425x, The enclosure has a built-in speaker for features the Rosslare PowerLock™ and the provides a premium solution to plug-n-play reliable performance for value and peace of

Main Features

Global input voltage – 90 VAC to 265 VAC 50/60Hz auto select. Rosslare can provide versions with C14 power plugs for any country.
Delivers two isolated 13.8 VDC power @ 2 A output channels with PTC resettable fuse and LED indications (4 A total)
Built-in power event generation to let the control panels and the AxTraxNG or AxTraxPro Access Control Management Software receive power supply and UPS events
Built-in Rosslare LightBar™ for lighting the way during maintenance and installation
Full system hinge and key lock unit (including 2 keys), thick high-quality oven baked black matte coating
Silk screen of all the connections on inside of door
Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · ME-1015

Sık sorulanlar

ME-1015 hakkında kısa yanıtlar.

ME-1015 fiyatı ne kadar?

ME-1015 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
