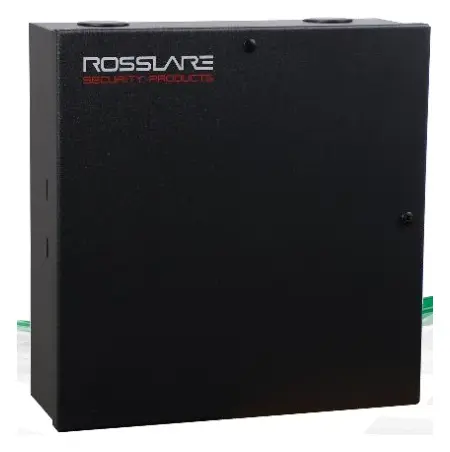

Rosslare ME-0515M Power Management Enclosure Güç Kaynağı Kabini

ModelME-0515M

Rosslare ME-0515M güç kaynağı kabini: Global input voltage – 100 VAC to 240 VAC 50/60Hz auto select. Rosslare can provide versions with C13 power plugs for any country, Delivers two isolated 12 VDC power @ 2 Amp output channels with PTC resettable fuse (4 A total), Wall mountable with external con.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Global input voltage – 100 VAC to 240 VAC 50/60Hz auto select. Rosslare can provide versions with C13 power plugs for any country
Delivers two isolated 12 VDC power @ 2 Amp output channels with PTC resettable fuse (4 A total)
Wall mountable with external connection for AC power input, and internal charger connected to battery backup
Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 5 satır

Switch Mode PS Input Voltage	100 – 240 VAC, 50/60 Hz from main power Maximum input current: 1.5 A
Switch Mode PS Output Voltage	15 VDC, 4 A (60 Watts) to the PM-05
Power Output from PM-05	12 VDC @ 2 A
Battery Charger Output	13.8 VDC, 300 mA for 12 VDC, 7 Ah lead acid battery
Light Bar	10 white LEDs, 10 mA, 0.3 W

Çevresel Özellikler 3 satır

Kullanım Ortamı	Indoor
Çalışma Sıcaklığı	-10°C - 50°C (14°F - 122°F)
Çalışma Nemi	0 to 85% (non-condensing)

Fiziksel Özellikler 3 satır

Enclosure Dimensions	228 x 224 x 84 mm (9.0 x 8.8 x 3.3 in.)
Ağırlık	2.1 kg (4.6 lb)
Compatabile Devices	The ME-0515M is a compatible device for the MD-25TB. ME-0515M-A with Type I plug power cable ME-0515M-B with Type G plug power cable

Genel 2 satır

Ordering Models	ME-0515M-E with Type F plug power cable ME-0515M-U with Type B plug power cable
Garanti	2-year limited product warranty

Genel bakış

Rosslare ME-0515M kullanım alanları ve özellikleri.

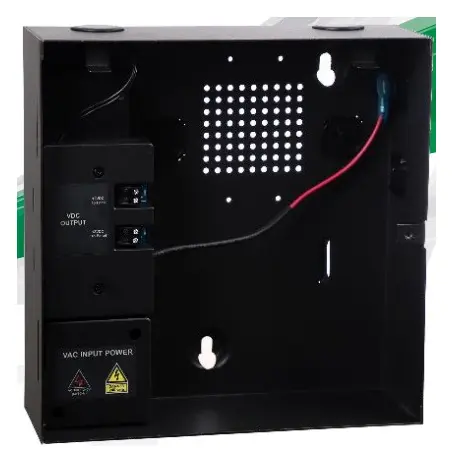

The ME-0515M is a multipurpose wall-mountable power management enclosure that contains a switch- mode power supply and a PM-05 power management module.

The switch mode power supply has a universal power input range of 100 – 240 VAC, 50/60 Hz, 1.5A AC input, and supplies a 15V DC, 4A output to the PM-05 power management module.

The PM-05 has two independent power output channels each with an isolated PTC (self-resetting fuse) that can be connected to any device of your choice.

Battery backup is available and upon AC power failure, the PM-05 module instantaneously (UPS) switches power to a standby 7AH sealed lead acid battery (not included).

Main Features

Global input voltage – 100 VAC to 240 VAC 50/60Hz auto select. Rosslare can provide versions with C13 power plugs for any country
Delivers two isolated 12 VDC power @ 2 Amp output channels with PTC resettable fuse (4 A total)
Wall mountable with external connection for AC power input, and internal charger connected to battery backup
Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · ME-0515M

Sık sorulanlar

ME-0515M hakkında kısa yanıtlar.

ME-0515M fiyatı ne kadar?

ME-0515M için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
