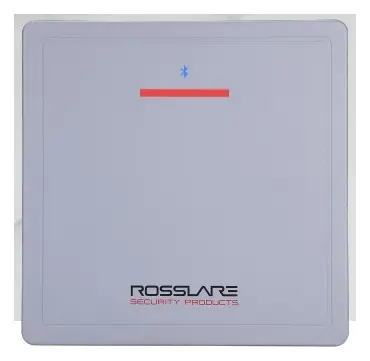

Rosslare AY-U920BT UHF SMART Extended Long-Range Reader Uzun Mesafe Okuyucu

The AY-U920BT is a unique UHF-RFID credential reader with Rosslare BLE-ID™ credential read capability (for both iOS and Android). Installers can configure a wide range of operating parameters using our Rosslare BLE- Admin™ app. AY-U920BT brings a new level of convenience and productivity. The UHF read mode is ISO18000-6C (EPC GEN2) compliant. The reader is suitable for outdoor use in a wide range of RFID applications such as access control, transport management, vehicle management, car parking, and production process control, and works with almost every third-party controller. Choose Rosslare for professional “security that lasts”.

By reading both UHF and Bluetooth (BLE-ID), the reader enables system integrators to develop new solutions, such as multi-factor authentication. The AY-U920BT can be configured to read up to 70 credentials within the read range, and to buffer the output to the host controller in Wiegand 26-bit to 128-bit or SIA Open Supervised Device Protocol (OSDP V2) including SCP mode (Secured Channel Protocol) to let the reader connect to any controller that supports OSDP.

The reader comes with an installation bracket kit for pole mounting, a 5-m-long 10-wire cable, and a switching power supply. The RS-485 OSDP wiring allows a maximum cable distance of 1000 m (3280 ft), and the Wiegand wiring allows a maximum cable distance to the host controller of 150 m (492 ft).

www.rosslaresecurity.com 1

Main Features

• MD-81 functionality built-in
• Wide range of UHF credential form factors available
• UHF read range up to 12 m (39 ft) UHF credential cannot be installed in RF-proof vehicles.
• Supports Bluetooth communication for Rosslare BLE-ID™ smartphone apps for Android and iOS
• Can read up to 10 credentials per second or down 1 credential per second (programmable)
• IP67 water and dust resistant, IK10 vandal resistant
• RGB LED used for operational indication
• Supports OSDP V2 including secure channel using AES 128-bit encryption for improved security with extended range, up to 32 addresses
• Supports mobile BLE Admin app for parameter configuration capability

Nerelerde kullanılır?

Kapı ve turnike geçişlerinde kart, şifre veya parmak iziyle yetkilendirme sağlar.

Tüm özellikler

• MD-81 functionality built-in
• Wide range of UHF credential form factors available
• UHF read range up to 12 m (39 ft) UHF credential cannot be installed in RF-proof vehicles.
• Supports Bluetooth communication for Rosslare BLE-ID™ smartphone apps for Android and iOS
• Can read up to 10 credentials per second or down 1 credential per second (programmable)
• IP67 water and dust resistant, IK10 vandal resistant
• RGB LED used for operational indication
• Supports OSDP V2 including secure channel using AES 128-bit encryption for improved security with extended range, up to 32 addresses
• Supports mobile BLE Admin app for parameter configuration capability
