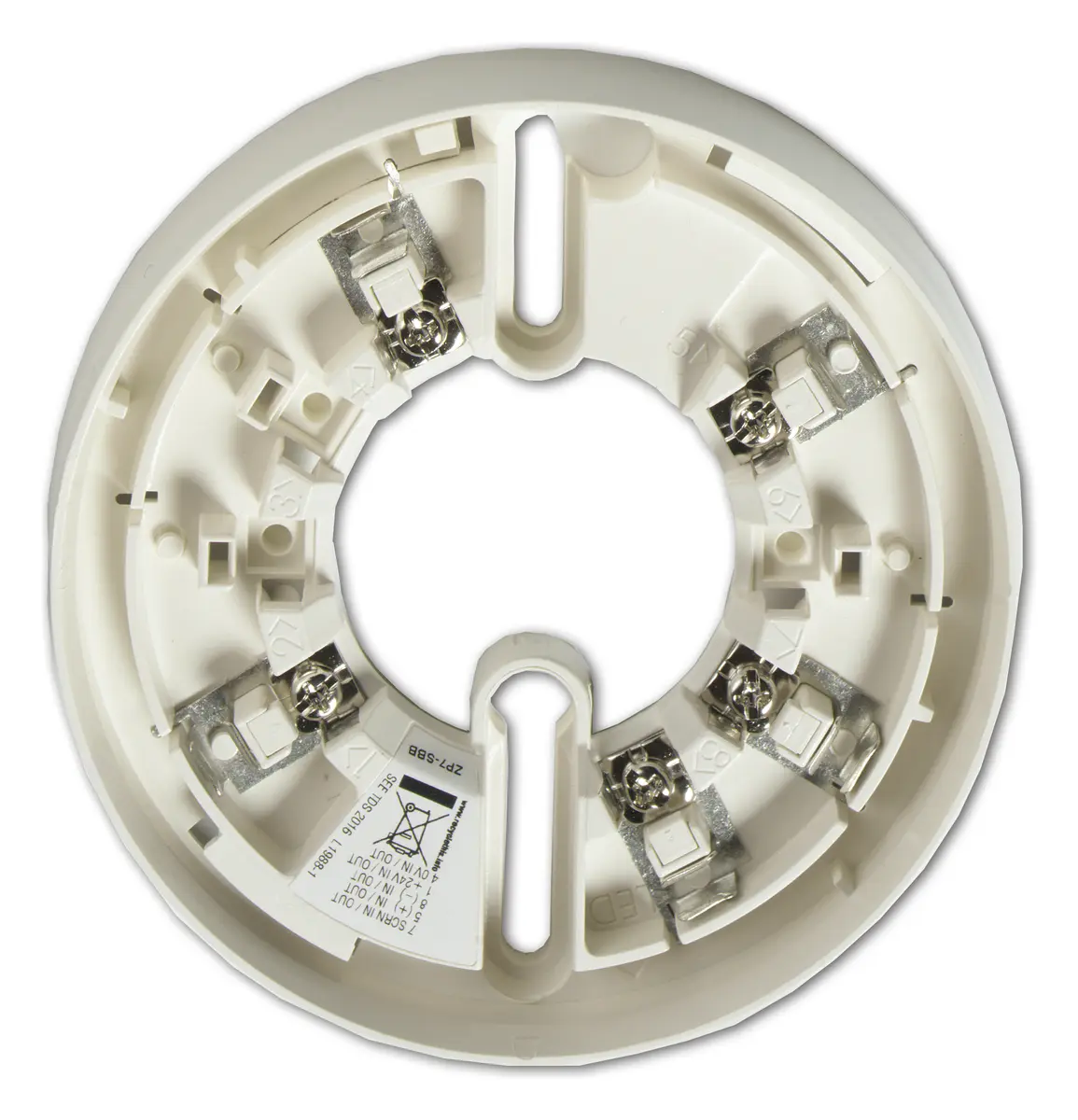

Ziton ZP7-SBB-P Yangın Alarm Aksesuarı

Ziton ZP7-SBB-P, yangın alarm aksesuarı ürünüdür.

General

The ZP7-SBB-P is a POLAR WHITE, surface mount ZP7 series visual indicator base compatible with the Z700 series detectors. It supports the ZP755V-P addressable visual indicator when used with an external power supply. Automatic locking is provided for use with a device enabled for head locking.

Installation

ZP7-SBB bases provide slots for screw fixing to either surface wiring plates or conduit boxes with screw fixing centres between 50 mm and 90 mm.

Terminals

ZP7-SBB bases feature robust wiring terminals with captive clamping washers to ensure secure wiring termination. The bases are of shallow design with ample space to accommodate cables of all types. Terminals are provided inside the moulding for loop connections and the termination of cable screening.

Öne Çıkan Özellikler

• Supports external power connection for the ZP755V-P
• Common to all Z700 series detectors
• Automatic locking option
• Address identification label
• Ease of installation

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
