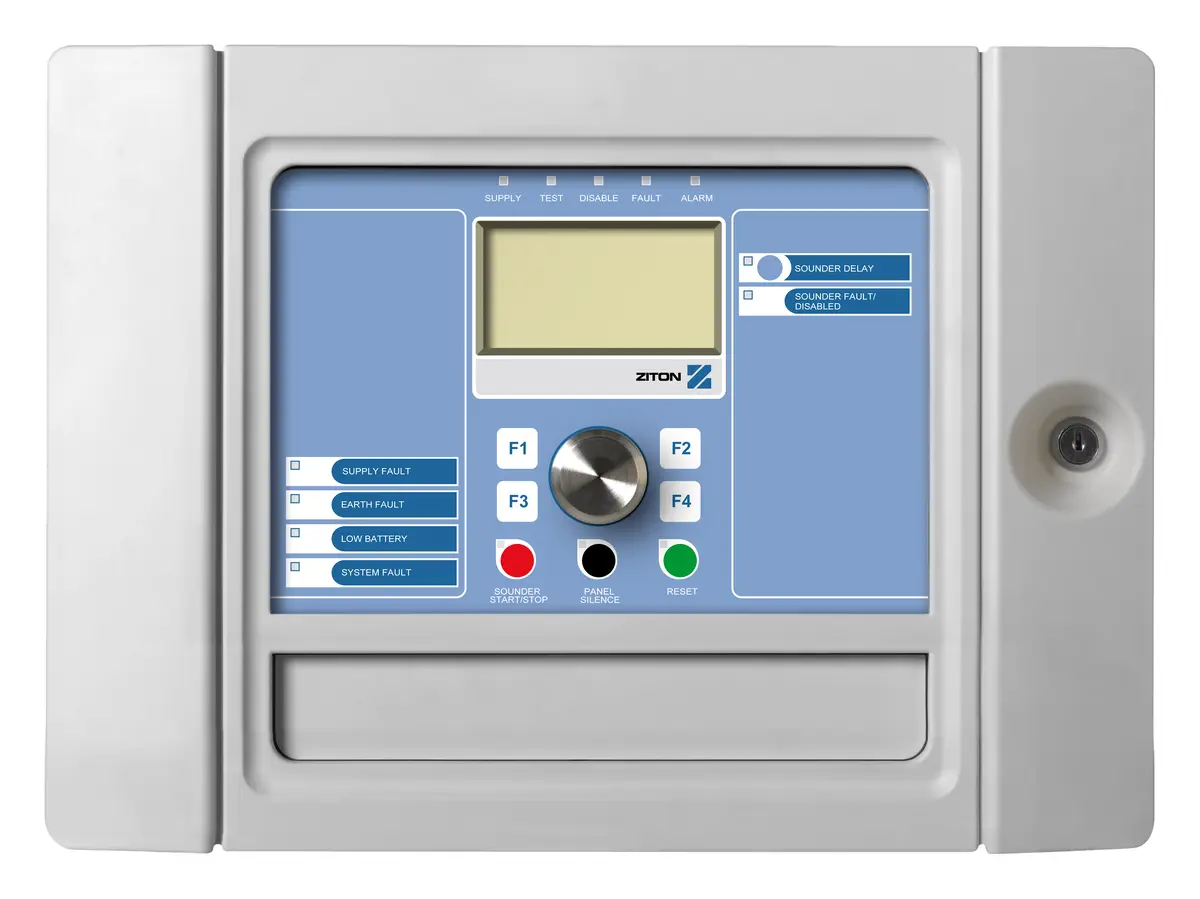

Ziton ZP2-F2-S Adresli 2 Loop Panel Kabini / Montaj Aksesuarı
Model
ZP2-F2-SZiton ZP2-F2-S (ZP2 - Panels - Small ailesi), adresli panel kabini / montaj aksesuarı ürünüdür. EN54-13, EN54-2, EN54-21, EN54-4, VdS standart/onaylarına uygundur. Öne çıkan özellikleri: EN 54 uyumluluğu.
- Sertifika
- EN 54
- Sistem tipi
- Adresli
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Addressable Fire Panel - 2 Loop small cabinet
- 2 loops with up to 512 zones and 300 output groups
- Up to 24 LED Zone indicators for Fire and Fault with space for a 4 digit number
- Auto configuration and default EN54 setup modes
- Ethernet port with TCP/IP for remote maintenance and programming
- EN54 compliant graphical LCD with icons and symbols for easy recognition of events
- Jog Dial with 4 soft buttons for simple and intuitive user control
- Aesthetic pleasing design with special paintable synthetic door
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 2 satır
| Maximum system capacity (device count) | up to 16256 |
|---|---|
| Network size (nodes) | up to 64 |
Elektriksel 3 satır
| Power supply type | VAC |
|---|---|
| Çalışma Gerilimi | 110 /230 VAC (+10%/-15%), 50 / 60 Hz (±5%); Cable type: 3 x 1.5 mm² (live, neutral, earth) |
| Akım Tüketimi | Nom. 0.6 / 1.3 A, Max. 1.5 / 3.15 A; 2 / 4 A (Fuse rating) |
Loop 3 satır
| Maximum loop capacity | 2 |
|---|---|
| Cable rating | Max. 75 ohm, 700 nF, max. 2 km w(ith 2 mm² and 127 detectors), Cable type: Recommended 2 core 1.5 mm² twisted pair |
| Çıkışlar | 2, 300 mA @11 VDC (peak 500 mA @ 20 V) |
Zone 1 satır
| Maximum zone capacity | up to 512 |
|---|
Giriş 3 satır
| Input type and rating | 150 mA (max. Load), able type: Recommended 2 core 1.5 mm² twisted pair |
|---|---|
| Programmable | 2 |
| Termination | 15 kohm |
Çıkış 6 satır
| Output type and rating | Cable type: Recommended 2 core 1.5 mm² twisted pair |
|---|---|
| Termination | 15 kohm |
| Programmable supervised | 4, 750 mA, 19.5 to 28 VDC (24 VDC nominal) |
| General Fire + Fault supervised | 2, 350 mA, 19.5 to 28 VDC (24 VDC nominal) |
| General Fire + Fault relay | 2 |
| Aux | 1 resetable, 500 mA, 19.5 to 28 VDC (24 VDC nominal) |
Standby battery 1 satır
| Kapasite | Max. 2 x 12 V, 7.2 Ah (use supplied cables) |
|---|
Fiziksel 7 satır
| Form Faktörü | Small |
|---|---|

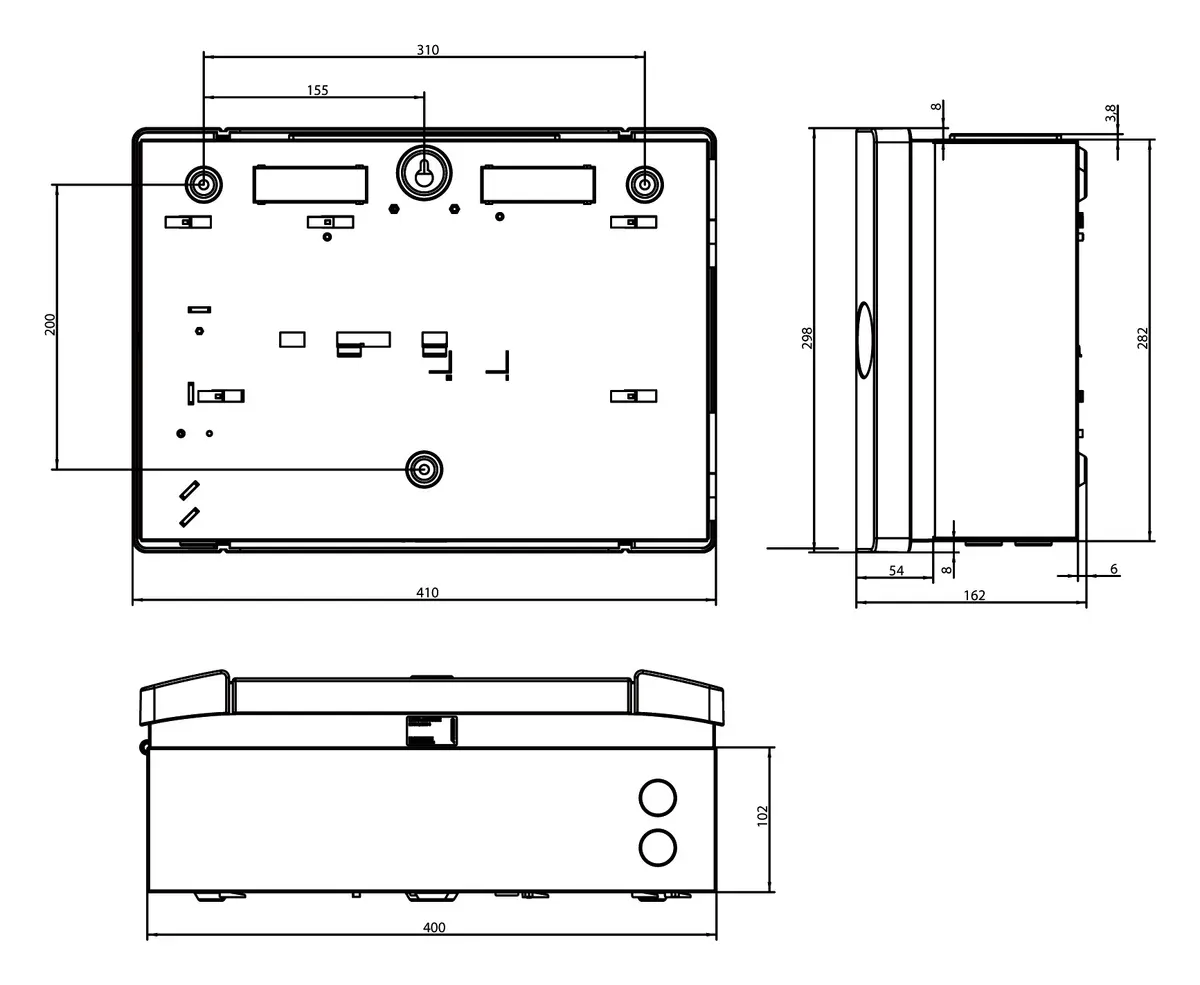

| Boyutlar | 410 x 298 x 162 mm (W x H x D) |
| Net Ağırlık | 5.2 kg (without battery) |
| Shipping weight | 6.6 kg |
| Renk | Grey (RAL 7035) |
| Montaj Tipi | Surface mount |
| Kablo Girişleri | 9 (20 mm) / 2 (20 mm) / 2 removable plates (Top/Bottom/Back) |
Çevresel 5 satır
| Çalışma Sıcaklığı | -5 to +40°C |
|---|---|
| Depolama Sıcaklığı | -10 to +50°C |
| Bağıl Nem | 95% max. noncondensing |
| Ortam | Indoor |
| IP Koruma Sınıfı | IP30: for indoor use only |
Sertifikalar ve Uyumluluk 2 satır
| Uyumluluk Belgeleri | BS5839-1, CPD, LPCB, NBNS21-100, NEN2535, RoHS, WEEE |
|---|---|
| Sertifikalar | EN54-13, EN54-2, EN54-21, EN54-4, VdS |
Genel bakış
Ziton ZP2-F2-S kullanım alanları ve özellikleri.
Ziton ZP2-F2-S (ZP2 - Panels - Small ailesi), adresli panel kabini / montaj aksesuarı ürünüdür. EN54-13, EN54-2, EN54-21, EN54-4, VdS standart/onaylarına uygundur.
Overview
The ZP2 Series life safety control systems are bringing the speed and functionality of high-end intelligent processing to small to mid-sized addressable applications. They feature an attractive contemporary design that fits with any decor. Special plastics allows for painting in any color and the easy to remove electronics will support in this matter. The gently lined door with the intuitive light blue inset user interface and EN54 compliant graphical LCD offers a distinctive flair. The main controls are clearly, but discreetly highlighted with the focus on the central located Jog Dial.
With the addressable detection and a full line of easily configured option cards and modules, USB and Ethernet® connectivity, these quick-to-configure systems offer versatility that benefits building owners and life safety system installers alike.
The Panel
The fire panels supplied in local language, with user interface, with 2 loops that supports up to 254 devices each (127 addresses) in 512 zones, have standard 4 supervised sounder/fire-routing outputs, which can be used as freely programmable outputs as well. In addition 2 conventional relay outputs and 2 supervised outputs, working in pair and dedicated to common fire and fault conditions, as well as 2 user configurable inputs for monitoring and control are available.
Options
The panel supports an extra 2 loop board that brings the panel to up to 512 zones with 4 additional programmable outputs.Add a network board to create a maximum of 32 nodes / 32 loops network of fire panels, fire panel repeaters (including conventional fire panels and fire panel repeaters up to a maximum of 64 conventional zones). Last but not least, in case seperate zone indications are required, a 24 zone fire/fault LED indicator board can be mounted in the panel or repeater with space for a 4 digit number.
Approvals & Compliance
• CE / CPD / EN54-2 / EN54-4 • NEN2535 / NBNS21-100 compliant • BS5839-1 compliant • VdS and LPCB certified • WEEE / RoHS compliant
Öne Çıkan Özellikler
- 2 loops with up to 512 zones and 300 output groups
- Up to 24 LED Zone indicators for Fire and Fault with space for a 4 digit number
- Auto configuration and default EN54 setup modes
- Ethernet port with TCP/IP for remote maintenance and programming
- EN54 compliant graphical LCD with icons and symbols for easy recognition of events
- Jog Dial with 4 soft buttons for simple and intuitive user control
- Aesthetic pleasing design with special paintable synthetic door
- Easy removable door and chassis for quick and clean installation
- All pluggable connectors
- 3 USB ports with memory stick support and RS232 for printer support
- Email notification for events directly from the panel (4 user accounts)
- Auxiliary 24VDC supply output with reset support
- 3 operator level menu structure (20 user names and passwords)
- History log memory for 9999 events
- Compatible with the Ziton loop powered sounders/beacons and base sounders and Ziton series detectors
Nerelerde kullanılır?
Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.
Kurulum ve uyumluluk
Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
Tüm özellikler
- Addressable Fire Panel - 2 Loop small cabinet
- 2 loops with up to 512 zones and 300 output groups
- Up to 24 LED Zone indicators for Fire and Fault with space for a 4 digit number
- Auto configuration and default EN54 setup modes
- Ethernet port with TCP/IP for remote maintenance and programming
- EN54 compliant graphical LCD with icons and symbols for easy recognition of events
- Jog Dial with 4 soft buttons for simple and intuitive user control
- Aesthetic pleasing design with special paintable synthetic door
- Easy removable door and chassis for quick and clean installation
- All pluggable connectors
- 3 USB ports with memory stick support and RS232 for printer support
- Email notification for events directly from the panel (4 user accounts)
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
ZP2-F2-S hakkında kısa yanıtlar.
ZP2-F2-S EN 54 sertifikalı mı?
Ürün dokümanlarında EN 54 standardına uygunluk belirtilmektedir. Proje teslimi için güncel sertifika belgesi talep edilebilir.
