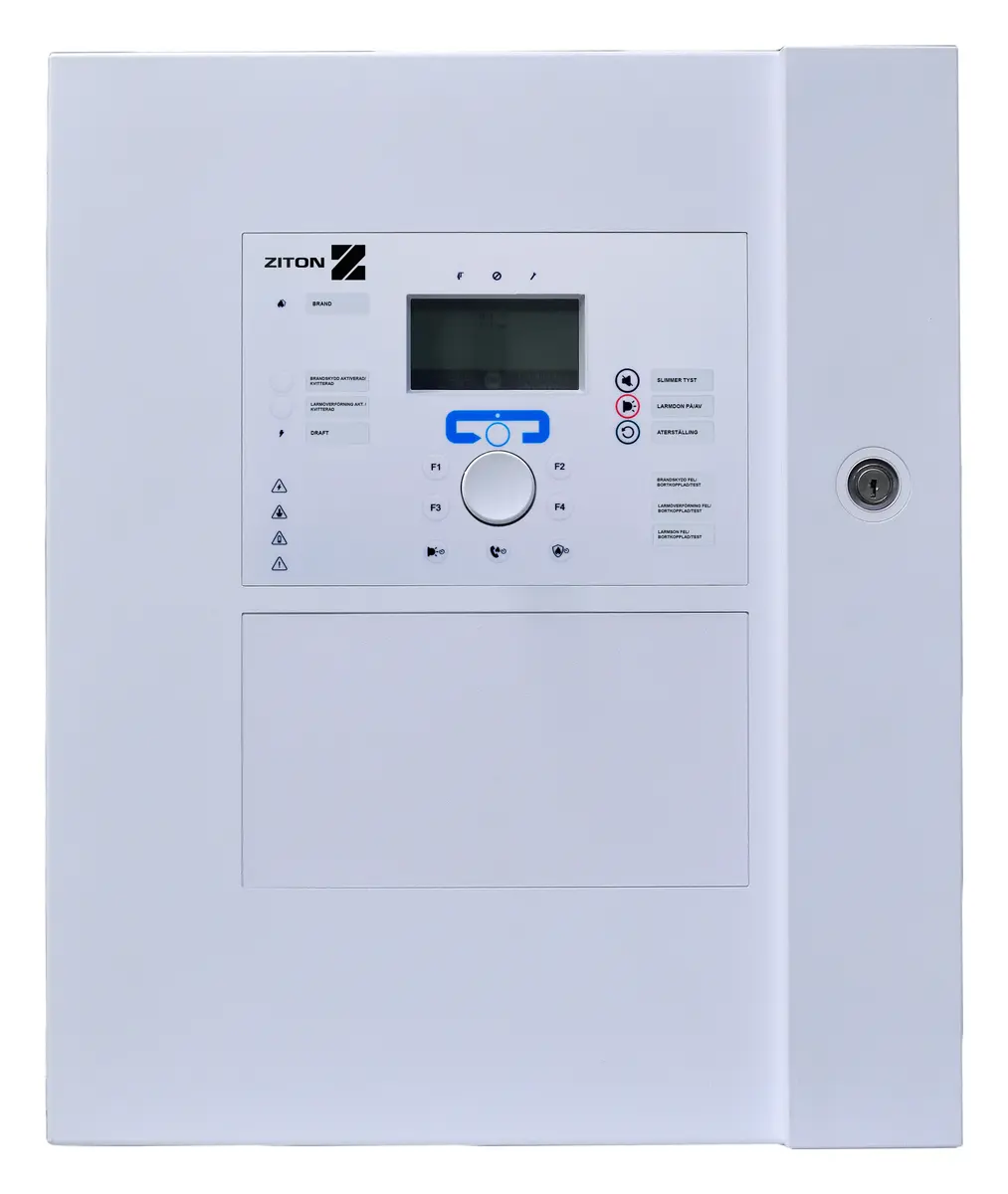

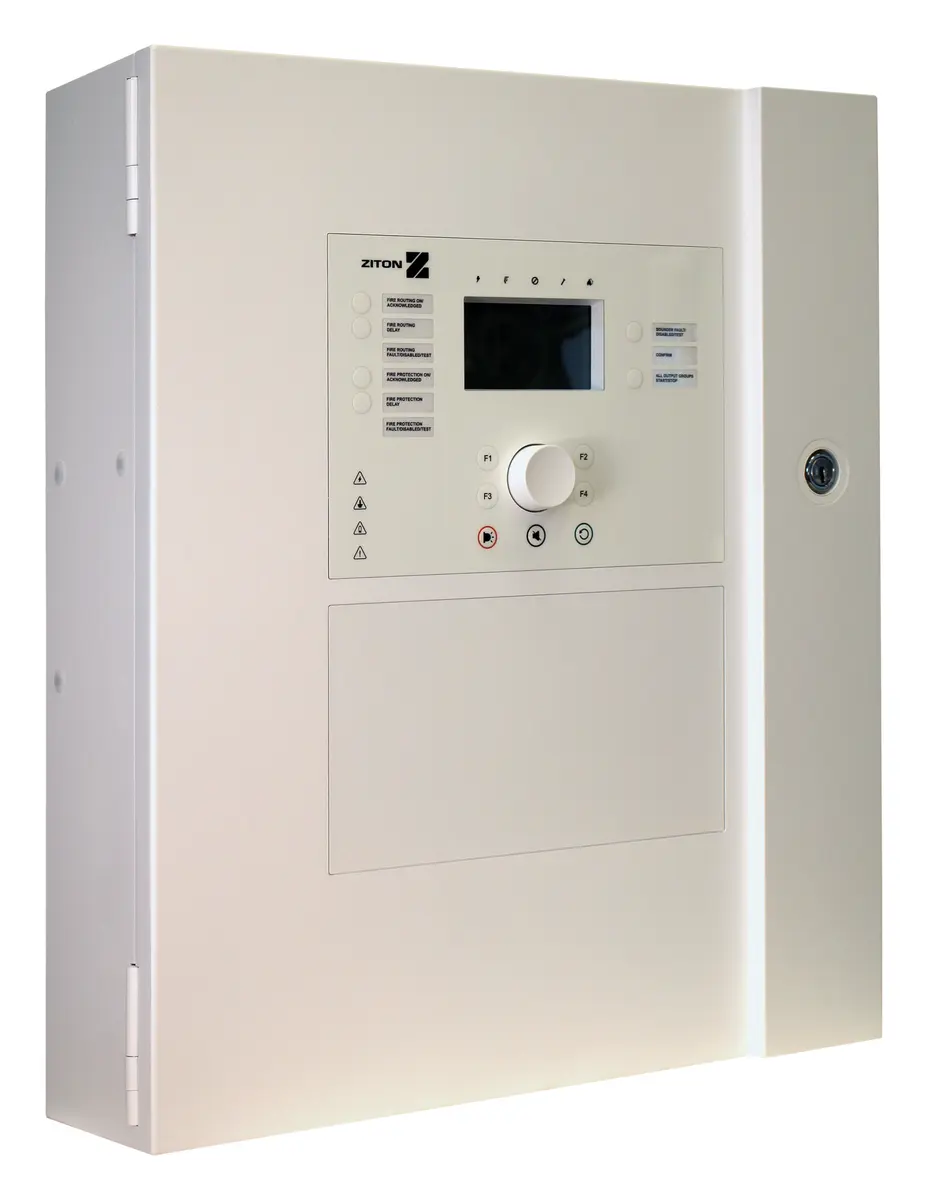

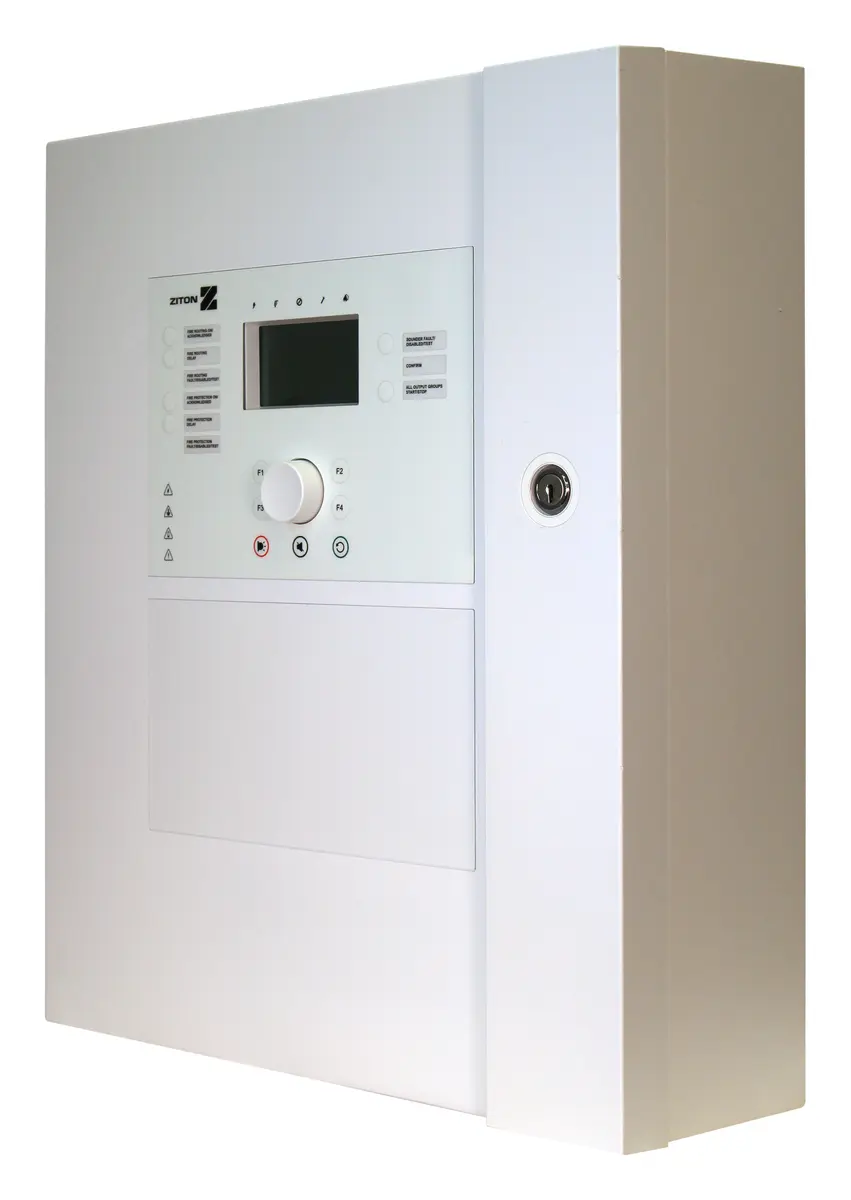

Ziton ZP2-AE2 Adresli 2 Loop Acil Anons / Tahliye Paneli

Ziton ZP2-AE2 (ZP2-A Series ailesi), adresli acil anons / tahliye paneli ürünüdür. BOSEC, CPR standart/onaylarına uygundur.

Overview

The new ZP2-A series life safety control systems bring the speed and functionality of high-end intelligent processing to small to mid-sized addressable applications. Based on ZP2 series learned experience and with complete backwards compatibility, the new ZP2-A features an attractive contemporary design that fits with any decor. With improved robustness, manufactured in metal, special plastics and easy electronics removal, it allows painting in any colour. The main controls are easily located using an improved and robust jog dial.

With high power loop addressable detection, a full line of easily configured option cards and modules, as well as USB and Ethernet® connectivity, these quick-to configure systems offer versatility that benefits building owners and life safety system installers alike.

The Panel

The fire panels supplied in local language, with user interface, with fire routing and evacuation controls, with 1 loop that supports up to 254 devices (127 addresses) in 512 zones, have standard 2 supervised sounder/fire-routing outputs, which can be used as freely programmable outputs as well. In addition 2 conventional relay outputs and 2 supervised outputs, working in pair and dedicated to common fire and fault conditions, as well as 2 user configurable inputs for monitoring and control are available.

Options

The panels supports one network board to create a maximum of 64 nodes / 256 loops network of fire panels, fire panel repeaters (including conventional fire panels and fire panel repeaters up to a maximum of 64 conventional zones). Last but not least, in case seperate zone indications are required, a 20 or 40 zone fire/fault LED indicator board can be mounted in the panel or repeater with ample space for text.

Compatible with existing loop devices and network compatible with existing panels, repeaters (existing and new) and conventional panels.

Approvals & compliance

• CE / CPD / EN54-2 / EN54-4 / EN54-21 • WEEE / RoHS compliant

Öne Çıkan Özellikler

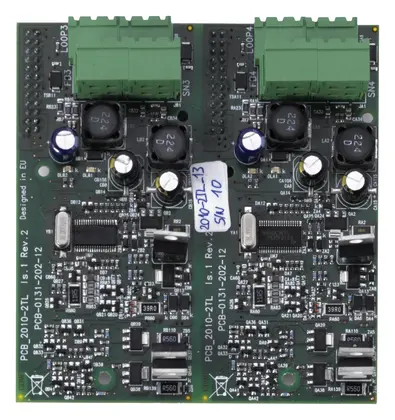

• 2 High Power Loop with 800 mA per loop expandable to 4
• Up to 512 zones with fire brigade & fire protection & evacuation controls with 7 programable evacuation groups and 300 output groups
• Up to 40 LED Zone indicators for Fire and Fault with ample text space
• Auto configuration, setup wizards and default regional setup modes
• Ethernet port with TCP/IP for remote diagnostics, maintenance and programming
• EN54 compliant graphical LCD with icons and up to 256 zones
• Improved Jog Dial with 4 soft buttons for simple and intuitive user control
• Aesthetic pleasing design with robust painted steel door

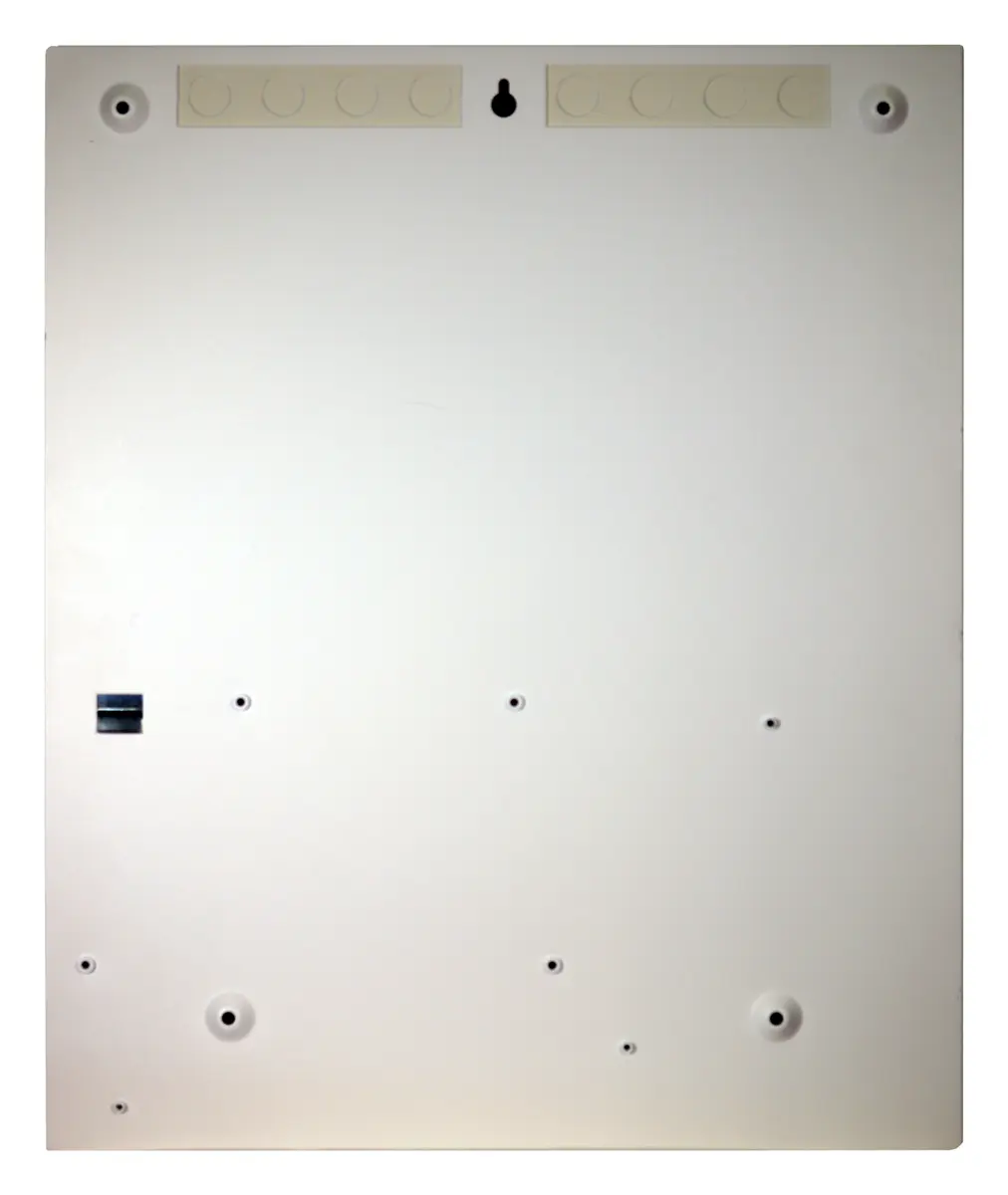

• Easy removable door and chassis for quick and clean installation
• All pluggable connectors
• Auxiliary 24 VDC supply output with reset support
• 3 USB ports with memory stick support and RS232 for printer support
• Communication via UltraSync cloud, using EN 54-21 UC240 UltraSync communicator
• Integration in management software ATS8600, allowing integration with security systems and CMS
• 3 operator level menu structure (20 usernames and passwords)
• Email notification for events directly from the panel (4 user accounts)
• History log memory for 9999 events
• Backwards compatible, supporting site retrofit/upgrades, expansions, replacement
• Compatible with the Ziton loop powered sounders/beacons and base sounders and Ziton series detectors

Nerelerde kullanılır?

Binadaki dedektör, buton ve sirenleri yöneten yangın algılama sisteminin merkezidir; alarmın yerini gösterir, tahliye uyarısını başlatır ve diğer sistemlerle (asansör, havalandırma, kapılar) entegre çalışır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• ZITON Addressable fire and evacuation panel w/ fire brigade controls, 2 loop
• 2 High Power Loop with 800 mA per loop expandable to 4
• Up to 512 zones with fire brigade & fire protection & evacuation controls with 7 programable evacuation groups and 300 output groups
• Up to 40 LED Zone indicators for Fire and Fault with ample text space
• Auto configuration, setup wizards and default regional setup modes
• Ethernet port with TCP/IP for remote diagnostics, maintenance and programming
• EN54 compliant graphical LCD with icons and up to 256 zones
• Improved Jog Dial with 4 soft buttons for simple and intuitive user control
• Aesthetic pleasing design with robust painted steel door
• Easy removable door and chassis for quick and clean installation
• All pluggable connectors
• Auxiliary 24 VDC supply output with reset support
