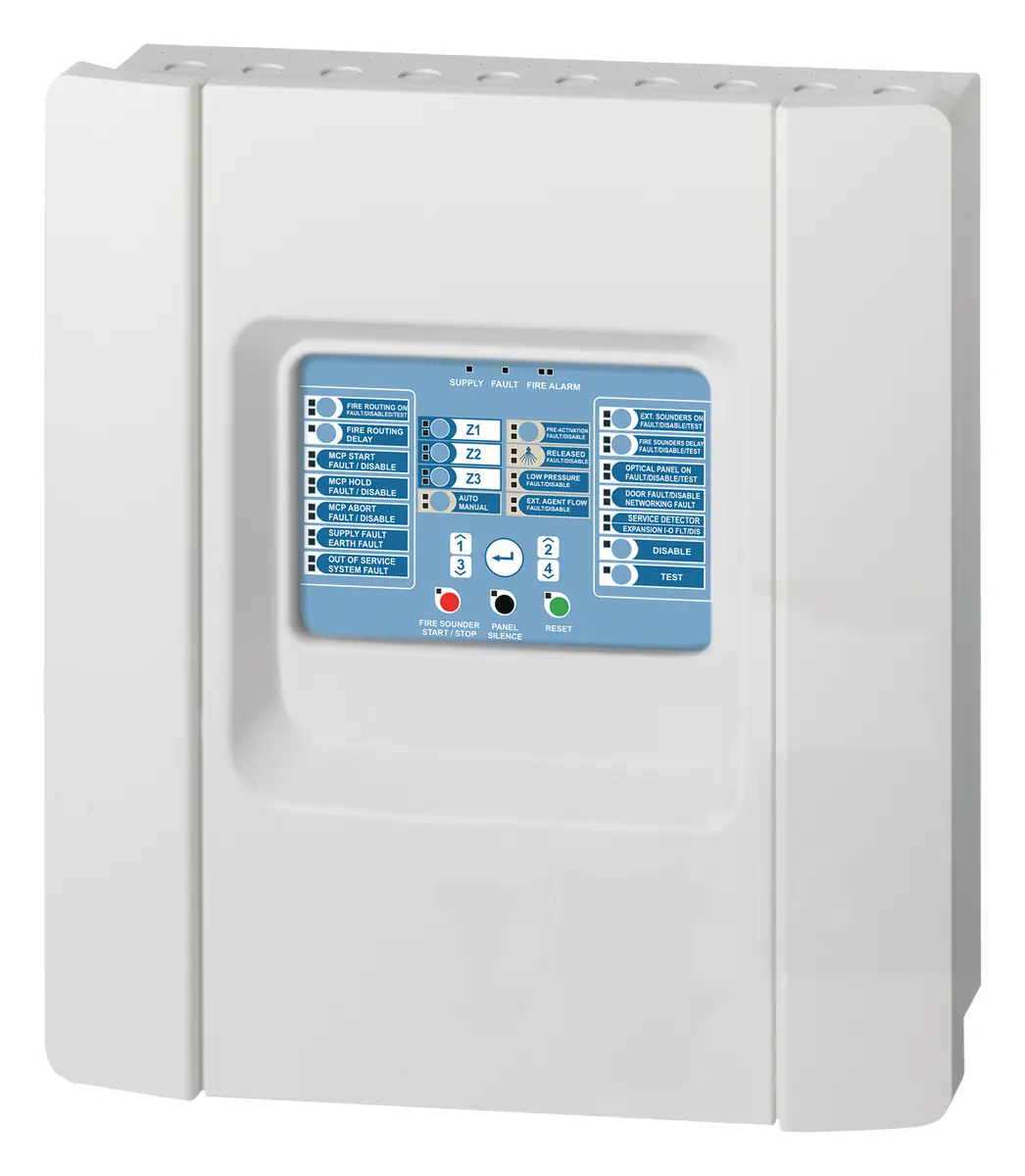

Ziton ZP1-X3E Konvansiyonel 3 Bölge Söndürme Kontrol Paneli

Ziton ZP1-X3E (ZP1 - Ext. Panels ailesi), konvansiyonel söndürme kontrol paneli ürünüdür. EN12094-1, EN54-2, EN54-4 standart/onaylarına uygundur.

Overview

ZP1 fire control panels offer state of the art architecture in configurations that deliver an uncomplicated solution for small to mid-sized conventional applications. They feature an attractive contemporary design that fits with any decor. The gently curved door front offers a distinctive flair. Operator controls are inset in a striking blue lexan.

With support for multiple lines of conventional detectors and accessories, these quick-to-configure systems offer versatility that benefits building owners and installation/maintenance companies alike.

The Panel

The ZP1-X3E is a networkable, enhanced conventional fire alarm and extinguishing control panel. It is supplied in local language with 3 fire zones that support up to 32 devices per zone. These zones may be configured for extinguishing in single zone or double zone configuration in any combination of zones. In addition the panel offers supervised outputs for first stage notification, second stage notification as well as optical warning indicators and actuator activation. Standard relay outputs are provided for EN54 compliance and system status notification, as well as multiple inputs for system control.

Options

The panels support 2 types of auxiliary relay boards, one with 4 standard relays, and one with 4 supervised relays. With these boards the panel outputs may be expanded with up to 16 additional outputs.

The ZP1-X3E supports class A (redundant ring) and B (standard bus) networking with up to 32 nodes including conventional and addressable panels and repeaters via an optional network interface. This allows full remote control and inputs to and from other nodes in the system, providing superior flexibility in system organisation and planning.

Approvals & Compliance

The product line carries the following accreditations:

• EN54:2, EN54:4 and CE approved • CPR certified • EN12094-1 certified

• WEEE compliant • RoHS compliant

Öne Çıkan Özellikler

• Modern, elegant design
• Easy removable parts for quick and easy installation
• Normal & head-out supervision support per zone
• Three detection zones
• Single zone, double zone or any combination of zones configurable for release
• 6 Pre-configured relays and 8 supervised inputs for extinguishing control
• Configurable fire routing, sounder, extinguishing, reset and door monitoring delays
• Configurable "Hold Mode" type-A or type-B
• Sounders configurable for pulsing or continuous operation
• Extinguishing agent flow confirmation
• Continuous or resetable 24 VDC auxiliary supply
• Auxiliary standard & supervised relay output support
• Default support for special functions such as: - EN54 compliant user access levels - Basic & Advanced level configuration - mixed zones - front panel diagnostics with test & disable control - one-man walk test
• Redundant networking to ZP1 conventional and ZP2 addressable nodes
• Instrinsically safe and EN54-13 zone support

Nerelerde kullanılır?

Binadaki dedektör, buton ve sirenleri yöneten yangın algılama sisteminin merkezidir; alarmın yerini gösterir, tahliye uyarısını başlatır ve diğer sistemlerle (asansör, havalandırma, kapılar) entegre çalışır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Enhanced Conventional Fire and Extinguishing Panel - 3 Zone
• Modern, elegant design
• Easy removable parts for quick and easy installation
• Normal & head-out supervision support per zone
• Three detection zones
• Single zone, double zone or any combination of zones configurable for release
• 6 Pre-configured relays and 8 supervised inputs for extinguishing control
• Configurable fire routing, sounder, extinguishing, reset and door monitoring delays
• Configurable "Hold Mode" type-A or type-B
• Sounders configurable for pulsing or continuous operation
• Extinguishing agent flow confirmation
• Continuous or resetable 24 VDC auxiliary supply
