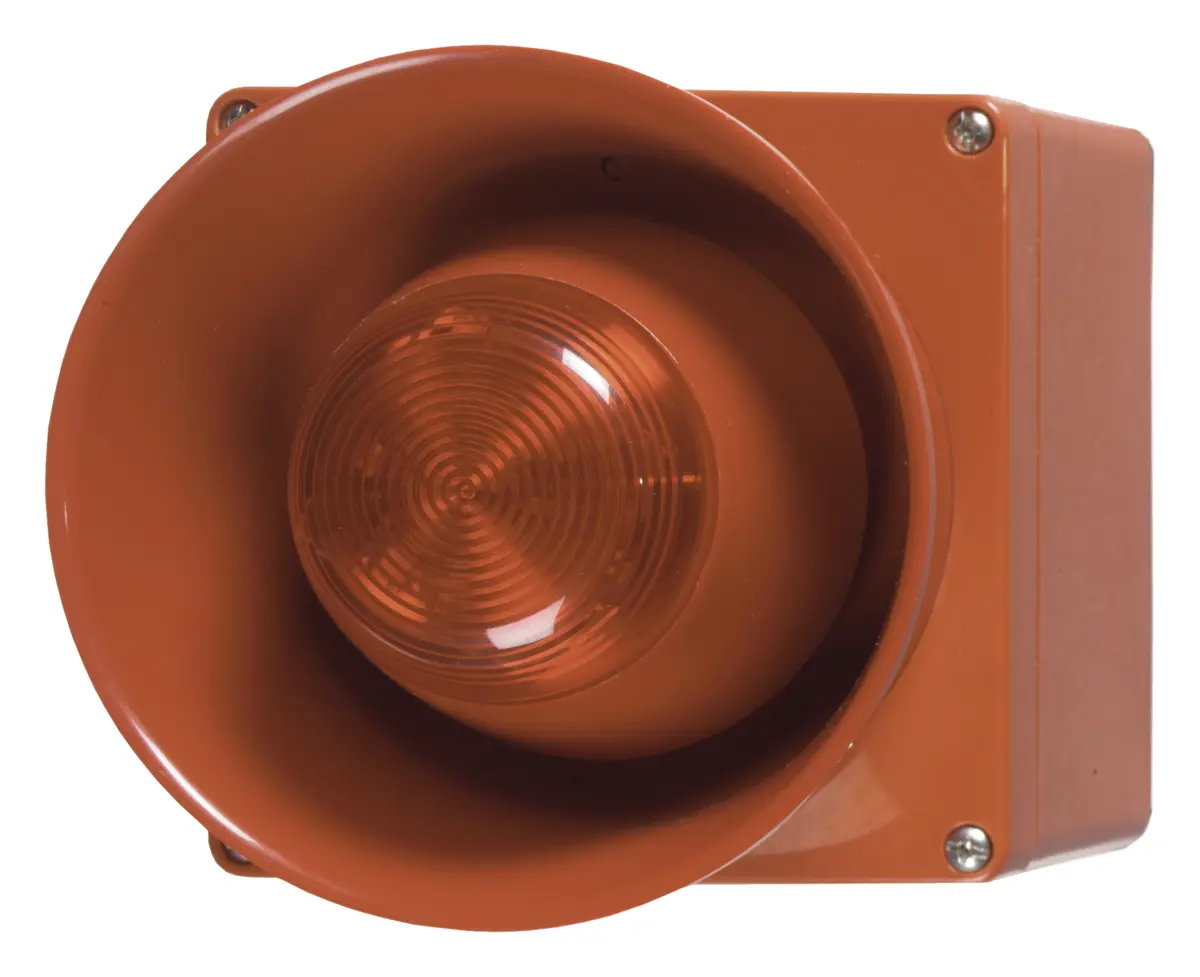

Ziton 178701 Dış Ortam Kırmızı Yangın Sireni / Flaşör

Ziton 178701 (Ziton Addr. Notification ailesi), dış ortam kırmızı yangın sireni / flaşör ürünüdür. CPR standart/onaylarına uygundur.

General

The ZP755WV-2R is an addressable, weatherproof sounder/beacon, designed for use on ZP addressable fire detection and alarm systems. The device is developed for outdoor applications.

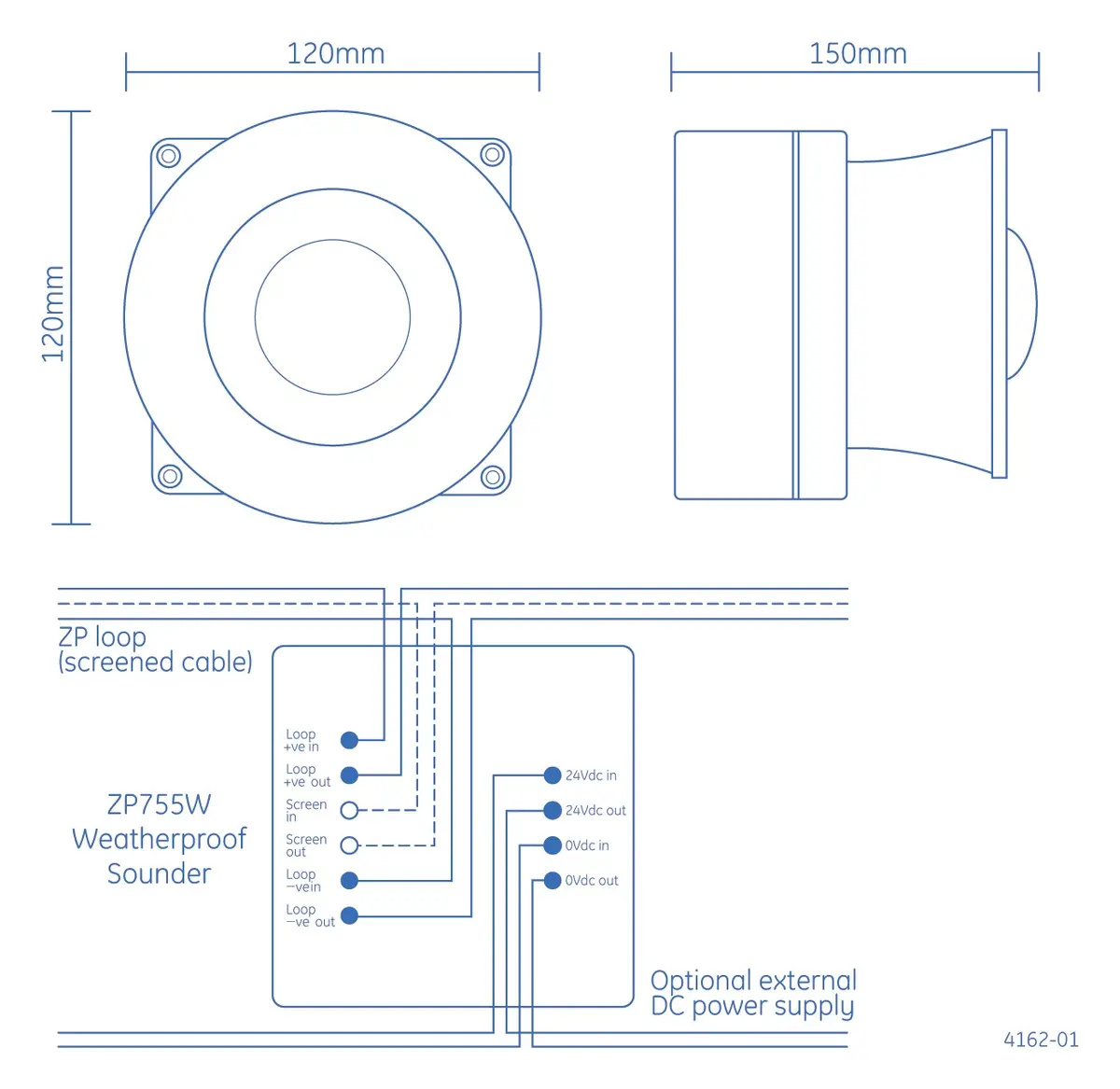

Installed directly onto and powered by the ZP wiring loop, the ZP755 range enables the system designer to offer a complete ZP addressable system on a single pair of wires. Installation costs are greatly reduced, whilst system integrity, sounder options and programmed alarm organisation are significantly increased.

High efficiency, low energy design

High efficiency acoustic design, low energy sound gun transducer and low current Light Emitting Diode (LED) visual element, enables up to 24 sounder beacons to be connected to a one kilometer loop of 1.5 mm² cable, with a wiring run of 50 m to the first device.

In systems where loop lengths or current requirements are excessive, ZP755WV-2R sounder beacons can be powered directly from an external power supply.

Range of sound outputs

Continuous, intermittent and two-tone audible outputs are available from which any combination can be chosen to provide alert and evacuate, two stage alarms. All sound types comply with most local codes (for example BS 5839 Part 1 recommended frequencies in the UK). The ZP755WV-2R produces a sound output of 95 dBA, measured at 1 m. A volume control is included for areas where a reduced sound output is required.

Molded in high impact red thermoplastic, the sounder beacon features a red lens.

Öne Çıkan Özellikler

• Weatherproof
• Sounder with visual indicator in a single unit
• High sound output
• Low current LED based visual element
• High efficiency sound gun transducer
• Up to 30 devices powered directly from loop wiring
• EN54:3 approved and CPR certified

Nerelerde kullanılır?

Yangın anında manuel ihbar ve binadaki kişilerin sesli/ışıklı uyarılması için kaçış yolları ve kat koridorlarında kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
