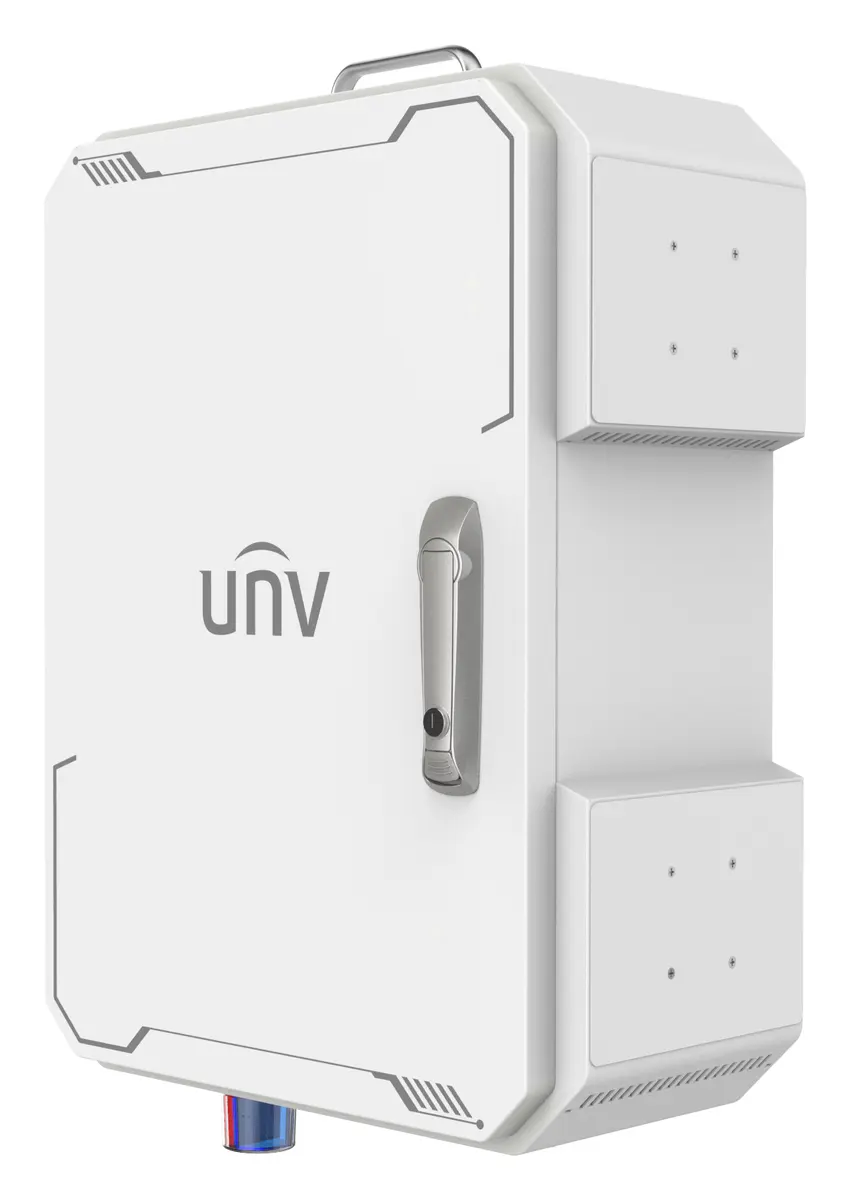

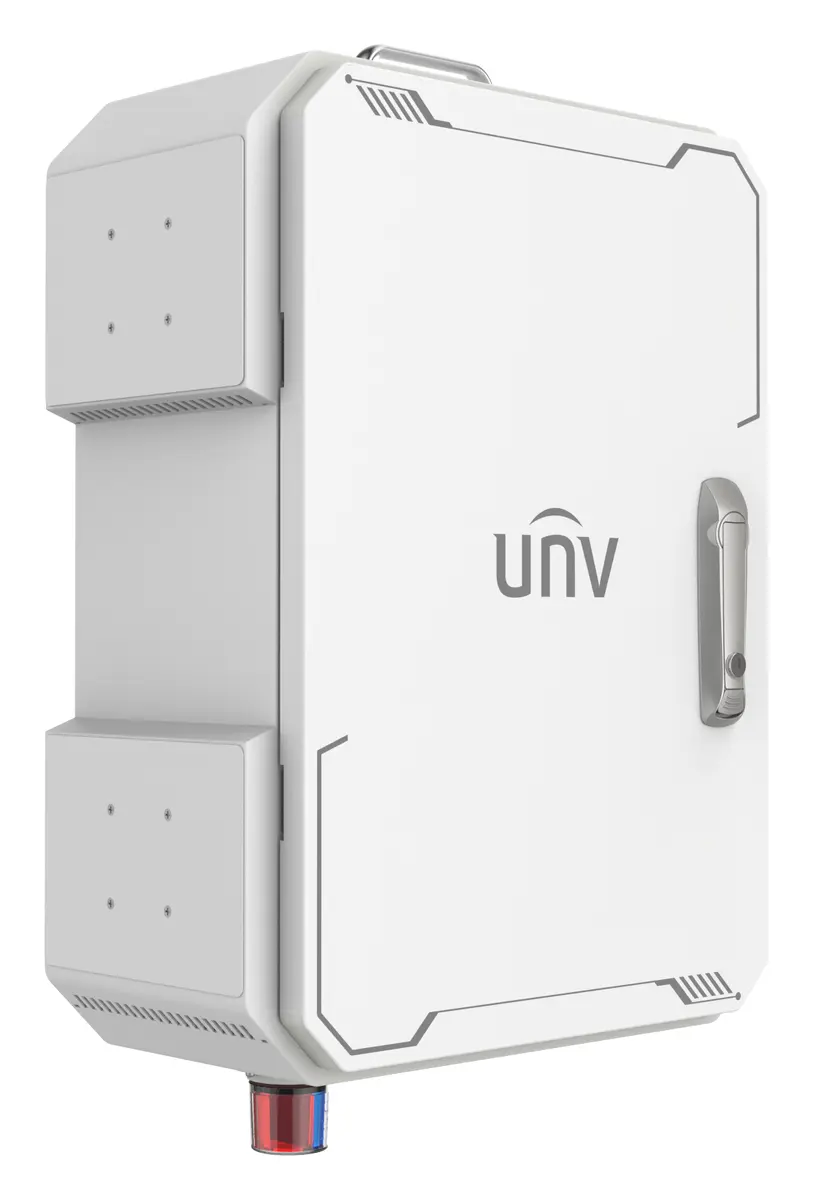

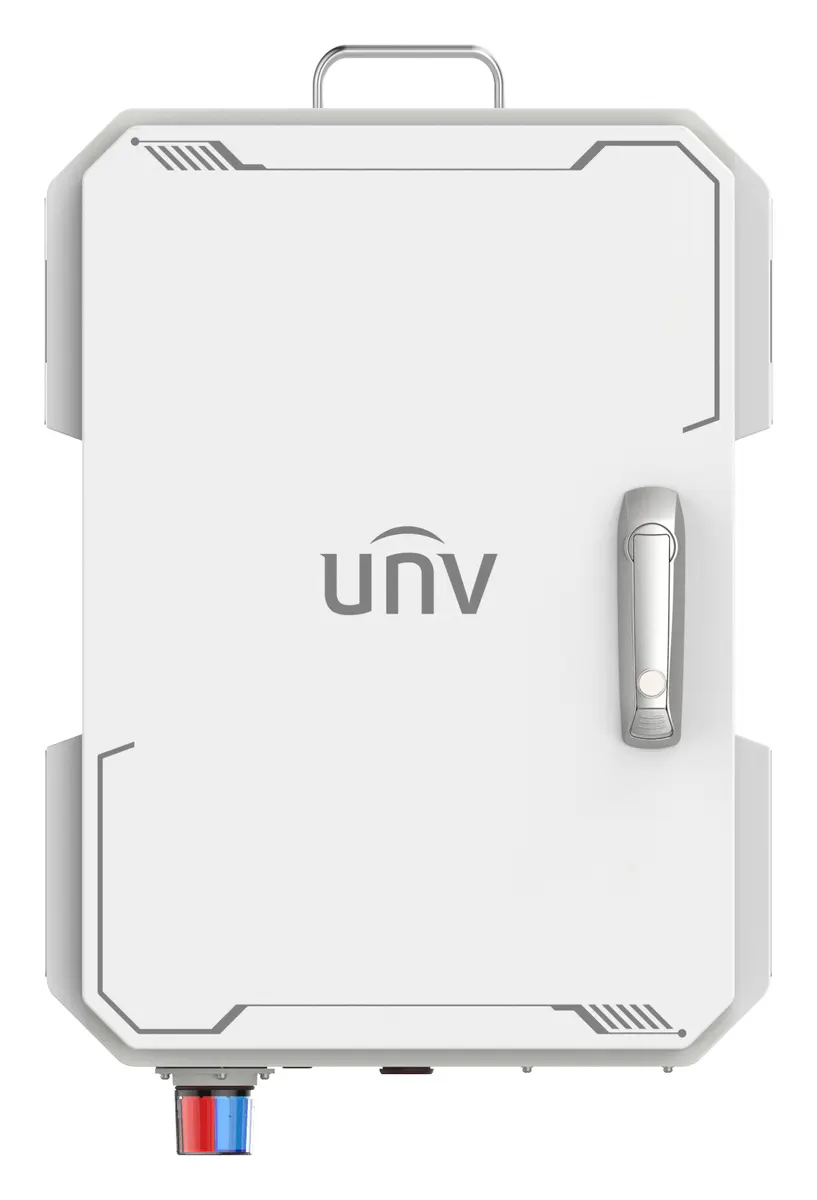

Uniview SMBOX02-R Solar Güç Sistemi
Model
SMBOX02-RUniview SMBOX02-R solar güç sistemi: Integrated design, combining the SMSERVER, smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box., Users can remotely monitor the working status.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Integrated design, combining the SMSERVER, smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box.
- Users can remotely monitor the working status of the smart management box and its loaded devices and receive alarm notifications via mobile app and EZCloud.
- Supports automatic restart of power port for network devices. When the smart management box detects a network disconnection, it will automatically power off the network devices and restart them.
- Supports manual restart of PoE port. If devices such as IPC or IP Speaker are faulty, users can manually restart the PoE power output port of the cloud management server via mobile app and EZCloud.
- Equipped with surge protector, circuit breaker, and software protection function, forming a three-layer protection mechanism to effectively resist risks such as lightning, short circuit, overvoltage, and overcurrent.
- Integrated design eliminates the need for manual wiring, simplifying installation for users.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 10 satır
| Model | SMBOX02-R |
|---|---|
| Ürün Tanımı (Üretici) | Overseas Intelligent Operation&Maintenance Box |
| Aşırı Gerilim Koruması | 6 kV |
| Çalışma Sıcaklığı | When using HDDs: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉); When using SSDs: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Çalışma Nemi | ≤ 90% RH (non condensing) |
| Weight (Without Camera) | ≤ 15 kg (33.07 lb) |
| Boyutlar | 650 (H) × 424 (W) × 230 (D) mm |
| Slot dimensions | The space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 3 LAN ports. |
| Rating | IP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements. |
| Sertifikalar | CE-EMC, FCC |
Power Input 2 satır
| Input Type | DC 10.8 V to DC 14.4 V, 12A |
|---|---|
| Input Port | 3-pin Connector |
Power Output 5 satır
| Socket | N/A |
|---|---|
| DC 12V | 1-ch 2.5A, DC5521, Used for powering the router |
| PoE | 8 RJ45 10M/100M self adaptive Ethernet Interface |
| PoE Power | Max 30 W for single port, Max 75 W in total |
| PoE Standardı | IEEE 802.3at, IEEE 802.3af |
Dedicated Power Interface (Pre-Wired Internal Cabling) 3 satır
| NVR Power Interface | DC 10.8 ~ 14.4V to DC 48V, 2.5A |
|---|---|
| Router Power Interface | DC12V, 2.5A |
| Warning Light Power Interface | DC12V, 2.5A |
Fonksiyonlar 1 satır
| System Functional Description | Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis |
|---|
SMSERVER 24 satır
| Kod Çözme Formatı | Ultra 265, H.265, H.264 |
|---|---|
| Kod Çözme Kapasitesi | Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30; Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30 |
| Ses Sıkıştırma | G.711A, G.711U |
| Bandwidth | 80 Mbps |
| Protokoller | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| IP Video Girişi | 8-ch |
| FTP/Zamanlı/Olay Anlık Görüntü | 4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
| Kayıt Çözünürlüğü | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Kamera Tabanlı Akıllı Analiz | Face Detection,Vehicle Detection,SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area),Ultra Motion Detection (UMD),Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection),People Counting (People Flow Counting, Crowd Density Monitoring),Video Metadata,Traffic Monitoring |
| Smart by SMBOX | Face Detection,Ultra Motion Detection (UMD),Smart Intrusion Prevention (SIP) |
| VCA Arama | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch |
| by SMBOX with face detection cameras | 8-ch |
| by SMBOX with normal cameras | 2-ch |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by SMBOX | 4-ch |
| UMD by SMBOX | 8-ch |
| Capacity of Snapshot Records | 500 thousand records for face snapshot, One and a half millions records for SIP and vehicle |
| Genel Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion; Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Uyarı Alarmı | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk; Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
| Ağ Arayüzü | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | 1 × USB2.0, 1 × USB3.0 |
| Alarm Girişi | 4-ch |
| Alarm Çıkışı | 2-ch |
| ONVIF | Support |
Sabit Disk 1 satır
| Hard Disk | 1 x SATA interface, up to 16TB HDD (2.5" or 3.5"), or up to 4TB SSD (2.5") |
|---|
Power Lightning Protector 3 satır
| Maximum discharge current | 40 kA |
|---|---|
| Rated discharge current | 20 kA |
| Response time | L-PE ≤ 25 ns, N-PE ≤ 25 ns |
Consumption 3 satır
| No-load power consumption | At ambient temperature of 25°C: 12.6 W (No HDD, No HDD Heating, No Fan, No Alarm Light) |
|---|---|
| Full-load power consumption | At ambient temperature of 25°C: 134.8 W (16T HDD, HDD Heating, Full POE Output (75W), Fan, Alarm Light) |
| SMSERVER power consumption | At ambient temperature of 25°C:; ≤8W (No HDD+ No POE Output); 96.5W (Full POE Output + 16T HDD); 122.2W (Full POE Output + 16T HDD + Heating Film) |
Adaptable Mounting Bracket 4 satır
| Left side | Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
|---|---|
| Right side | Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2 |
| Bottom | Up to 1 unit can be installed, which cannot be installed simultaneously with the IP Speaker and supports TR-UF45-A-IN (Only 4-inch PTZ) |
| Top | Support the installation of an IP speaker, no mounting bracket required. |
Example 1 satır
| Operating Time | At ambient temperature of 25°C and under No-load conditions, the device operates for 203 hours when powered solely by battery (SLR-B2560-H) .; At ambient temperature of 25°C and under Full-load conditions, the device operates for 19 hours when powered solely by battery (SLR-B2560-H) .; Note: The above operating Time is tested under laboratory conditions. Actual operating time may vary depending on load power consumption and ambient temperature. This is for reference only. |
|---|
Genel bakış
Uniview SMBOX02-R kullanım alanları ve özellikleri.
Uniview SMBOX02-R, solar güç sistemi modelidir. Öne çıkanlar: IP kanal girişi 8-ch.
Üretici tanımı: Overseas Intelligent Operation&Maintenance Box
Öne Çıkan Özellikler
- Integrated design, combining the SMSERVER, smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box.
- Users can remotely monitor the working status of the smart management box and its loaded devices and receive alarm notifications via mobile app and EZCloud.
- Supports automatic restart of power port for network devices. When the smart management box detects a network disconnection, it will automatically power off the network devices and restart them.
- Supports manual restart of PoE port. If devices such as IPC or IP Speaker are faulty, users can manually restart the PoE power output port of the cloud management server via mobile app and EZCloud.
- Equipped with surge protector, circuit breaker, and software protection function, forming a three-layer protection mechanism to effectively resist risks such as lightning, short circuit, overvoltage, and overcurrent.
- Integrated design eliminates the need for manual wiring, simplifying installation for users.
Sık sorulanlar
SMBOX02-R hakkında kısa yanıtlar.
SMBOX02-R fiyatı ne kadar?
SMBOX02-R için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
