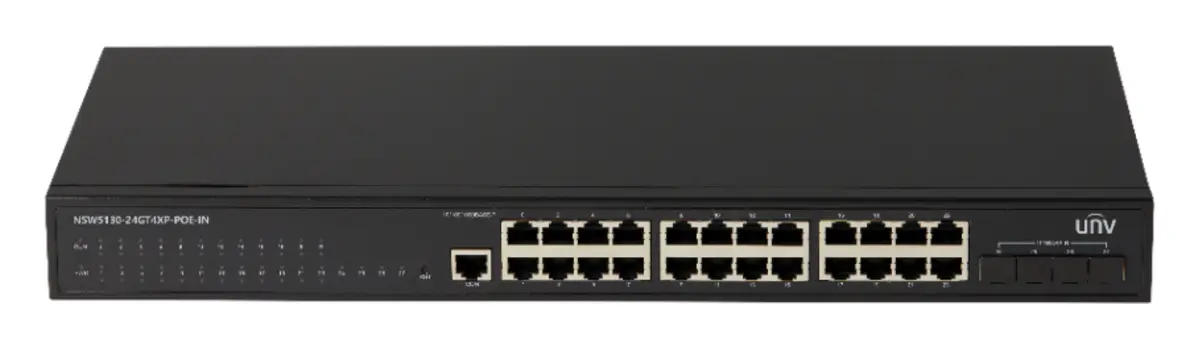

Uniview NSW5130-24GT4XP-POE-IN PoE Switch

ModelNSW5130-24GT4XP-POE-IN

Uniview NSW5130-24GT4XP-POE-IN gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 370 W.

Port hızı: Gigabit
PoE: PoE

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Flexible Gigabit access. With flexible 8/24/48 Gigabit interface access, NSW5130 Series is compatible with non-multiplexed SFP interfaces to enable high density Gigabit access and protect users’ investment.
Multiple services. NSW5130 Series supports multicast protocols such as IGMP, IGMP Snooping , FRRP (fast ring network recovery) protocol and FLRP (fast link recovery protocol).
Sound security control policy. NSW5130 Series provides multiple authentication modes based on MAC address, 802.1x, and Portal. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN,
Rich QoS policy. NSW5130 Series supports traffic identification on interfaces. It provides multiple stream classifications based on source MAC address, destination MAC address, source IP address, destination IP address,
Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, NSW5130 Series provides CLI command lines and a Web management interface.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Model	NSW5130-24GT4XP-POE-IN
Ürün Tanımı (Üretici)	24GE Ethernet Switch(PoE)

Donanım Özellikleri 15 satır

Port Tipi	2410/100/1000Mbps RJ45 PoE port,; 410Gbps SFP+ port
Anahtarlama Kapasitesi	128Gbps
İletim Performansı	95.2Mpps
MAC Adres Tablosu	12K
Maks. Güç	410W
Güç Kaynağı	AC: 100 to 240V, 50/60Hz;
Soğutma Fanı	2
Gösterge	PWR, RUN, LINK/ACT, Alarm, PoE
Boyutlar (G×D×Y)	440mm208mm44mm
Ağırlık	3KG
Çalışma Sıcaklığı	0℃~40℃
Çalışma Nemi	10% to 80%, non-condensing
PoE Modu	ModeA (1236)
Maks. PoE Gücü	370W
PoE Standardı	IEEE 802.3af, IEEE 802.3 at

Yazılım Özellikleri 11 satır

MAC Adres Tablosu	Support static, dynamic, black hole MAC entries; Support source MAC address filtering
Ethernet	Support port aggregation, port mirroring, port isolation, speed limit, strom control
VLAN	Support 4K VLAN; Support VLAN based on MAC/ IP subnet/authentication policy/interface VLAN; Support QinQ
Güvenlik	Support local and centralized authentication based on MAC address; Support local and centralized authentication based on 802.1x; Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection; Support port isolation, port security; Support broadcast storm suppression; Support SSH2.0
QoS	Support 8 priority queues per port; Support traffic classification based on 802.1p/DSCP/TOS; Support speed limit on ports and streams; Support SP, WRR, SP + WRR queue scheduling
Reliability	Support STP, RSTP, MSTP
DHCP	Support DHCP Client, DHCP Server, DHCP Snooping
Multicast	Support IGMP Snooping
Maintenance	Support real-time temperature detection and alarm; Support SNMP, CLI, Web management,; Support local and remote output of system logs, operation logs, debugging information
ACL	Support ACL rules based on VLAN, MAC address, IP address, TCP/UDP port number
IP Route	Support static routing, RIPV1/V2, OSPFv1/v2, Policy-Based Routing

Genel bakış

Uniview NSW5130-24GT4XP-POE-IN kullanım alanları ve özellikleri.

Uniview NSW5130-24GT4XP-POE-IN, poe switch modelidir. Öne çıkanlar: portlar 24*10/100/1000Mbps RJ45 PoE port,; 4*10Gbps SFP+ port.

Üretici tanımı: 24GE Ethernet Switch(PoE)

Öne Çıkan Özellikler

Flexible Gigabit access. With flexible 8/24/48 Gigabit interface access, NSW5130 Series is compatible with non-multiplexed SFP interfaces to enable high density Gigabit access and protect users’ investment.
Multiple services. NSW5130 Series supports multicast protocols such as IGMP, IGMP Snooping , FRRP (fast ring network recovery) protocol and FLRP (fast link recovery protocol).
Sound security control policy. NSW5130 Series provides multiple authentication modes based on MAC address, 802.1x, and Portal. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN, and interface.
Rich QoS policy. NSW5130 Series supports traffic identification on interfaces. It provides multiple stream classifications based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN.
Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, NSW5130 Series provides CLI command lines and a Web management interface.

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NSW5130-24GT4XP-POE-IN 10G Uplink Managed Ethernet.pdfPDF · NSW5130-24GT4XP-POE-IN

Sık sorulanlar

NSW5130-24GT4XP-POE-IN hakkında kısa yanıtlar.

NSW5130-24GT4XP-POE-IN IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 370 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

NSW5130-24GT4XP-POE-IN fiyatı ne kadar?

NSW5130-24GT4XP-POE-IN için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
