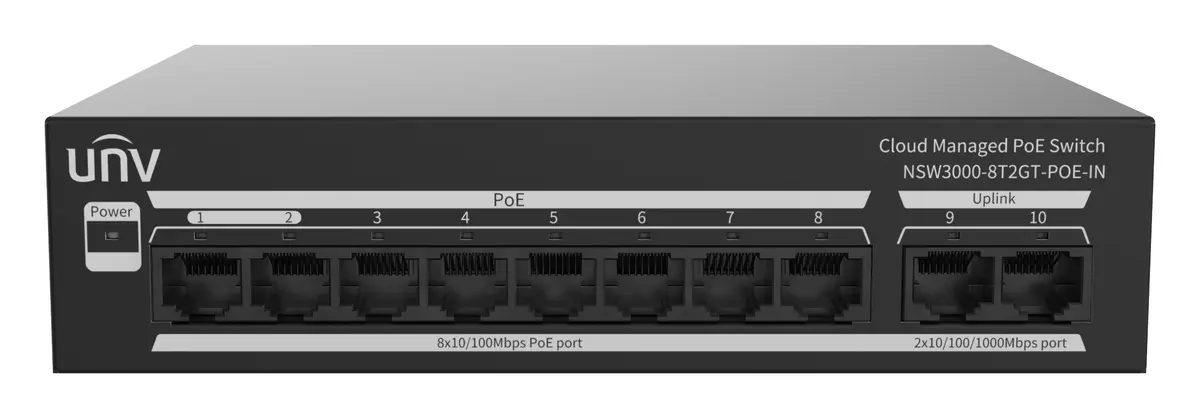

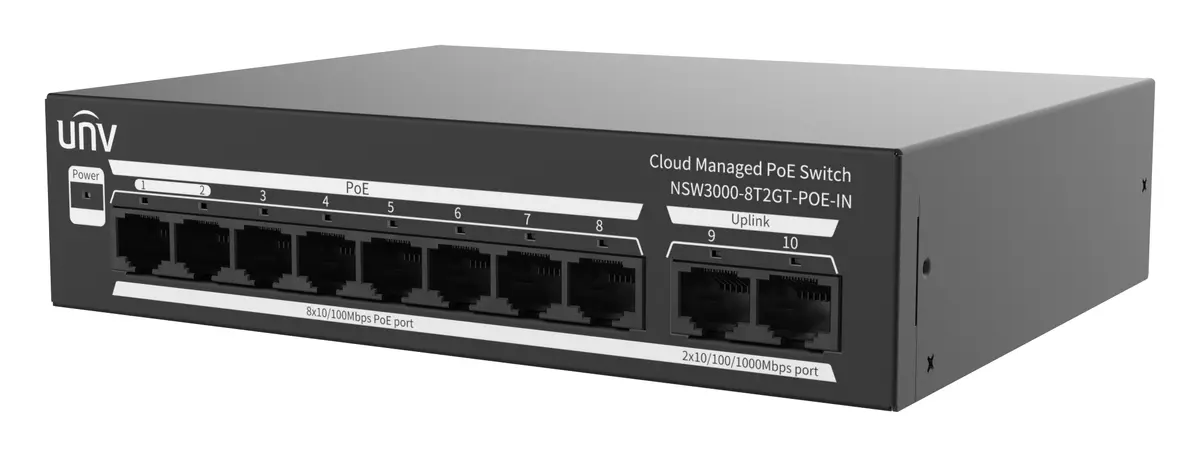

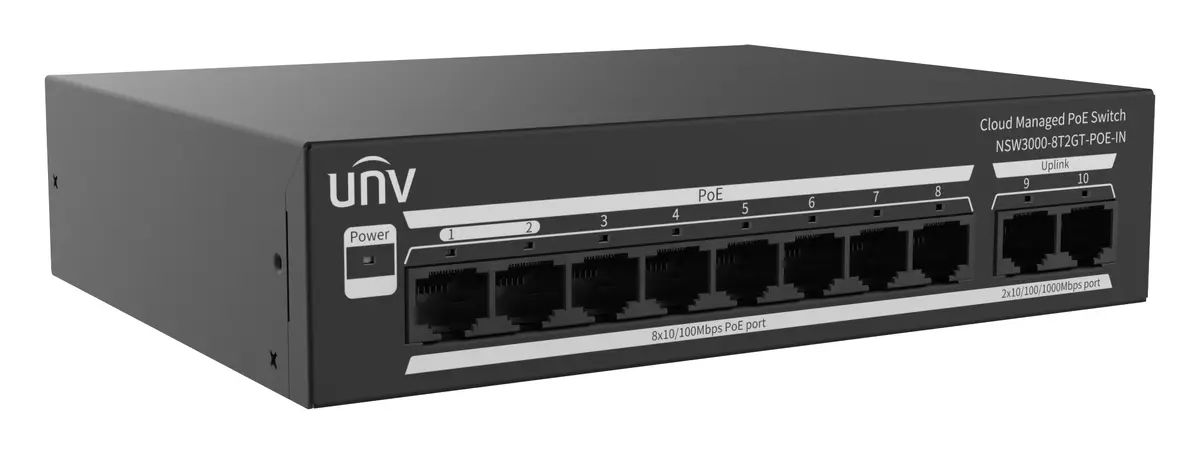

Uniview NSW3000-8T2GT-POE-IN Bulut Yönetimli PoE Switch

ModelNSW3000-8T2GT-POE-IN

Uniview NSW3000-8T2GT-POE-IN 10/100 Mbps bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 30 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Fast Ethernet
PoE: PoE

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a
Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code. Allows to view the device status and network topology in real time on the app, and re
Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
Allows to report port abnormal alarms to the software for realtime monitoring.
Supports port priority. The packets received by the priority port will be forwarded first when the switch is fully loaded and the priority port will be powered first when the PoE power supply is full.
All metal casing, secure and reliable.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Model	NSW3000-8T2GT-POE-IN
Ürün Tanımı (Üretici)	Cloud Managed Ethernet Switch(PoE)

Donanım Özellikleri 18 satır

Port Tipi	8 x 10/100Mbps POE port (RJ45) ,; 2 x Gigabit port (RJ45)
Standartlar	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Anahtarlama Kapasitesi	5.6 Gbps
İletim Performansı	4.17Mpps
Paket Tamponu	2 M bit
MAC Adres Tablosu	4K
Ağırlık	0.67KG
Boyutlar (G×D×Y)	169mm132mm40mm
PoE Standardı	IEEE 802.3af, IEEE 802.3 at
Maks. PoE Gücü	Maximum total power: 120W; Maximum PoE power for single port: 30W
PoE Modu	ModeA (1236), ModeB (4578)
Güç Kaynağı	AC: 100 to 240V, 50/60Hz
Maks. Güç	130W
Öncelikli Portlar	1 to 2
Soğutma Fanı	0
Çalışma Nemi	5% to 90% RH, noncondensing
Çalışma Sıcaklığı	0°C to 45°C (32°F to 113°F)
Gösterge	Power:; Off: Abnormal power input; Green: Normal power input; Yellow: The total PoE power is higher than 85% of the total power of the device; Link/Act:; Off: Disconnected to the port; On: Connected to the port; Blinking: Transmitting data

Yazılım Özellikleri 9 satır

Ethernet	Supports full duplex, half duplex, and auto-negotiation working modes; Supports enabling/disabling ports; Supports port auto-negotiation rate; Supports port priority flow control.; Supports port flow statistics; Supports a link aggregation group (consist of two uplink ports)
VLAN	Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094
MAC Adres Tablosu	Support (up to 4K).; Supports clearing the dynamic MAC address
PoE	Allows to view PoE status and power.; Allows to enable/disable PoE power supply.
Loop Detection	Loop Detection
QoS	Supports port rate limitation.; Supports broadcast storm control.
Güvenlik	Supports port isolation (only for the downlink ports).; Supports locking login IP address, up to 64 addresses can be locked
Maintenance	Supports N:1 port mirroring.; Supports unified software configuration, management, and search.; Supports discovering the connected video devices and generating a network topology on the software.; Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software.
System	Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.; Allows to edit and manage the IP address and device name.; Supports single-user management, user authentication, and password modification.; Allows to view other switches information on the same network, up to 32 switches.; Allows to view the connected video devices information, up to 64 devices .

Uyumluluk 1 satır

NDAA Uyumlu	Support

Genel bakış

Uniview NSW3000-8T2GT-POE-IN kullanım alanları ve özellikleri.

Uniview NSW3000-8T2GT-POE-IN, Bulut Yönetimli poe switch modelidir. Öne çıkanlar: portlar 8 x 10/100Mbps POE port (RJ45) ,; 2 x Gigabit port (RJ45).

Üretici tanımı: Cloud Managed Ethernet Switch(PoE)

Öne Çıkan Özellikler

Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code. Allows to view the device status and network topology in real time on the app, and remotely restart the PoE power supply.
Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
Allows to report port abnormal alarms to the software for realtime monitoring.
Supports port priority. The packets received by the priority port will be forwarded first when the switch is fully loaded and the priority port will be powered first when the PoE power supply is full.
All metal casing, secure and reliable.

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NSW3000-8T2GT-POE-IN Cloud Managed Ethernet PoE Switch.pdfPDF · NSW3000-8T2GT-POE-IN Kullanım Kılavuzu - UNV-Ethernet Switch User Manual.pdfPDF · NSW3000-8T2GT-POE-IN Hızlı Kurulum Kılavuzu - Quick Guide.pdfPDF · NSW3000-8T2GT-POE-IN

Sık sorulanlar

NSW3000-8T2GT-POE-IN hakkında kısa yanıtlar.

NSW3000-8T2GT-POE-IN IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 30 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

NSW3000-8T2GT-POE-IN fiyatı ne kadar?

NSW3000-8T2GT-POE-IN için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
