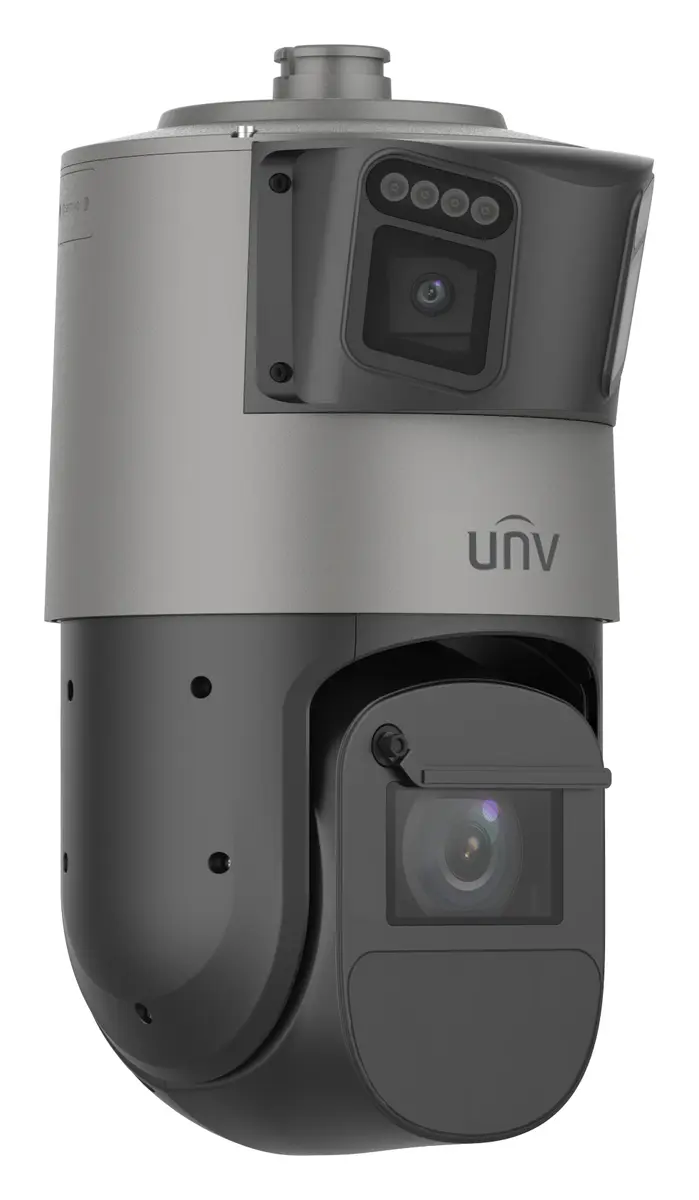

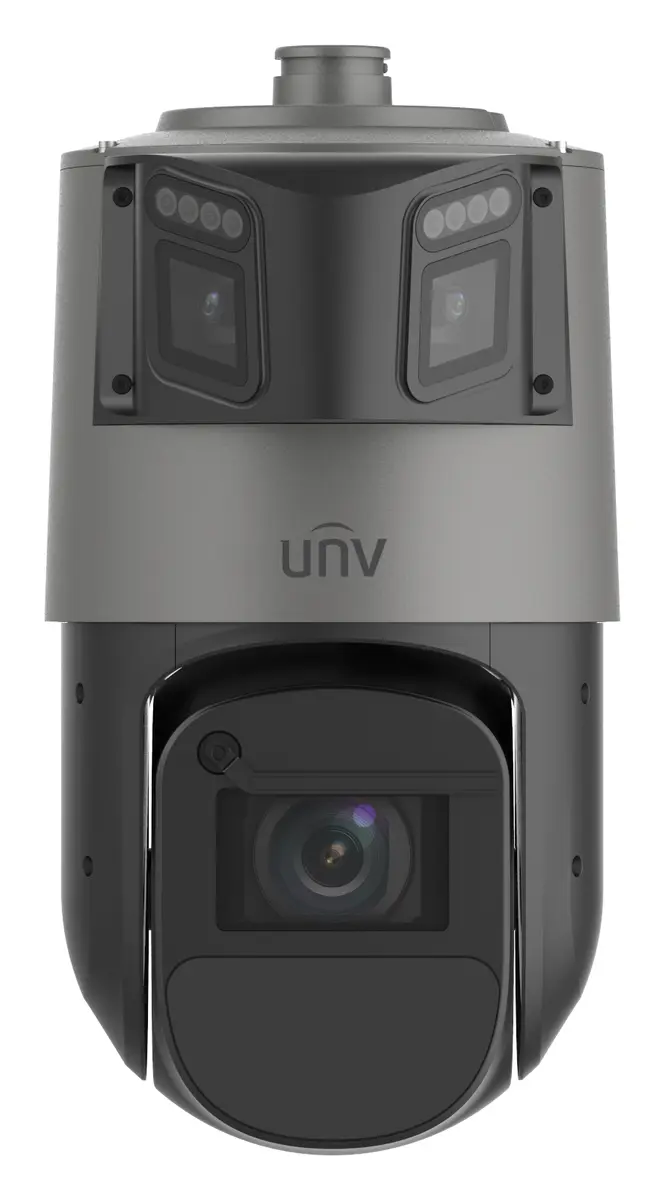

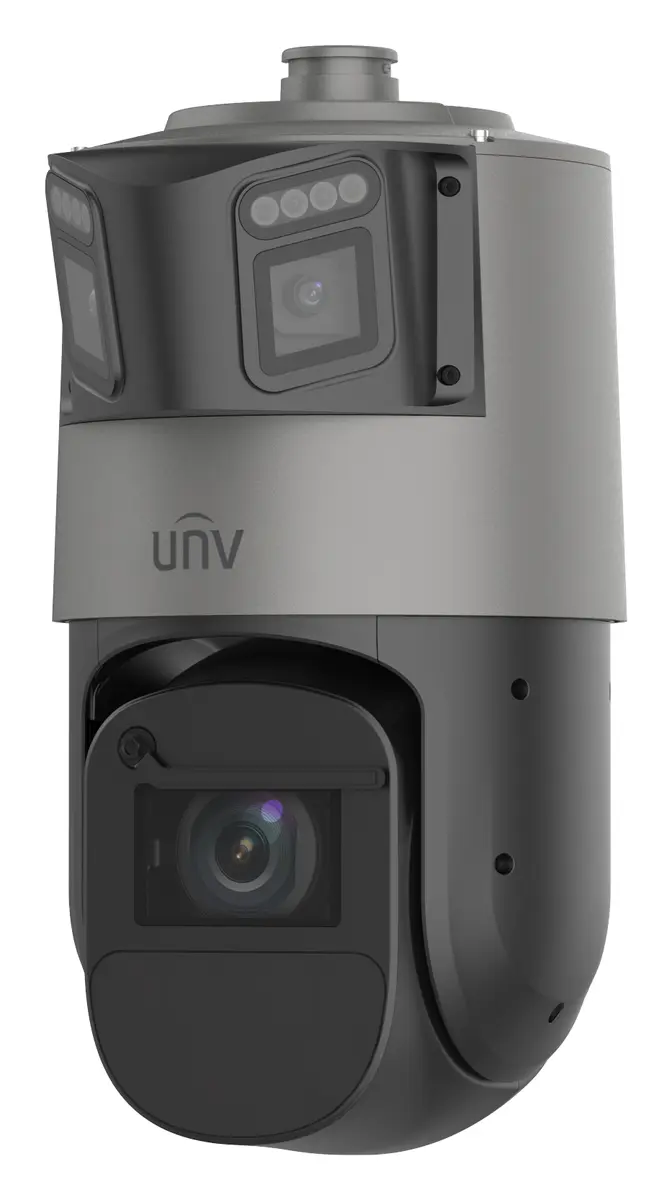

Uniview IPC98246EFW-X42-W-VH1 6MP MultiView Çift Işık PTZ Kamera

ModelIPC98246EFW-X42-W-VH1

Uniview IPC98246EFW-X42-W-VH1, 6 MP çözünürlüklü, 2.2 mm motorize lensli bir IP PTZ kameradır. Akıllı hibrit ışık sayesinde normalde IR ile çalışır, olay algıladığında beyaz ışığı açarak renkli kayda geçer. IP67 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur. Dahili mikrofonuyla sesli kayıt yapabilir.

Çözünürlük: 6 MP
Gece görüşü: Akıllı hibrit ışık
Koruma sınıfı: IP67
Lens: Motorize

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Panoramic dual-lens splicing, three-lens design, capturing both the big picture and details at the same time
Both the panorama and detail channels utilize 1/1.8" high-sensitivity CMOS sensors to capture clear images even when light level drops to almost zero at night
Panorama adopts the cutting-edge splicing technology to output a horizontal 200° and vertical 80° stitched image for wide scenes
Panorama supports a maximum of 3680 × 1656@30 fps HD video output, while details supports a maximum of 2688 × 1520@30 fps HD video output
Dual-channel with one IP, provides a panoramic view and live details at the same time
Built-in Wise-ISP algorithm enables intelligent noise reduction and stunning visual effects in low-light conditions
Panorama supports motorized vertical adjustment from 0° to 30° to deal with complex scenes.
Supports panoramic linkage: after an event is detected by the panorama channel, the camera automatically triggers the details channel to track the target and capture snapshots. The supported events include intrusion dete

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 15 satır

Model	IPC98246EFW-X42-W-VH1
Seri	Pro
Ürün Tanımı (Üretici)	4MP+6MP 42X Wise-ISP MultiView Dual-light Network PTZ Camera
Kanal	Channel 1 (Panorama)
Güç	DC 24 V (±25%), AC 24 V (±25%), PoE (IEEE 802.3bt)
Güç Tüketimi	Max. 74 W
Güç Arayüzü	Wires with cold-pressed terminal
Boyutlar	456 mm × 223 mm × 266 mm (17.95" × 8.78" × 10.47") (L × W × H)
Ağırlık	8.4 kg (18.52 lb.)
Çalışma Ortamı	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Depolama Ortamı	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Aşırı Gerilim Koruması	6KV
Sıfırlama Butonu	Support
Web Arayüz Dili	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Wiper	N/A

Kamera 6 satır

Maks. Çözünürlük	6 MP
Sensör	1/1.8" CMOS
Min. Aydınlatma	Color: 0.0005 Lux (F1.2, AGC ON), 0 lux with IR
Enstantane	Auto/Manual, 1 to 1/100000 s
WDR (Geniş Dinamik Aralık)	120 dB
Sinyal/Gürültü Oranı	>56 dB

Lens 6 satır

Dijital Zoom	N/A
Optik Zoom	N/A
Görüş Açısı (Yatay)	200°±5°
Görüş Açısı (Dikey)	78°
Görüş Açısı (Çapraz)	260°±5°
Odak Uzaklığı	2.2 mm

DORI 5 satır

DORI Mesafesi (Lens)	2.2 mm
DORI Mesafesi (Algılama)	34.1 m (111.9 ft.)
DORI Mesafesi (Gözlem)	13.7 m (45.0 ft.)
DORI Mesafesi (Tanıma)	6.8 m (22.3 ft.)
DORI Mesafesi (Teşhis)	3.4 m (11.2 ft.)

Video 10 satır

Gizlilik Maskesi	24 areas, up to 8 areas per scene
Kare Hızı (Ana Akış)	6 MP (3680 × 1656), max. 30 fps;; 6 MP (3632 × 1632), max. 30 fps;; 1200 × 536, max. 30 fps;; 960 × 432, max. 30 fps
Kare Hızı (Alt Akış)	1200 × 536, max. 30 fps; 960 × 432, max. 30 fps
Kare Hızı (Üçüncü Akış)	960 × 432, max. 30 fps
Video Sıkıştırma	Ultra 265, H.265, H.264, MJPEG
Frame Rate Recommendation	3680 × 1656@30 fps + 1200 × 536@30 fps + 960 × 432@30 fps; 3632 × 1632@30 fps + 1200 × 536@30 fps + 960 × 432@30 fps
Video Bit Hızı	128 Kbps to 16 Mbps
ROI (İlgi Alanı)	Up to 8 areas
Video Akışı	Triple streams
OSD	Up to 10 OSDs

Akıllı Özellikler 6 satır

Metadata Analyse	Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection
Linkage Function	Support. Triggered by fixed lens via smart intrusion prevention function to track target
Otomatik Takip	N/A
Multi-target Detection	N/A
Akıllı İzinsiz Giriş Önleme	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
İnsan Sayma	Support people flow counting and crowd density detection

Görüntü 7 satır

Beyaz Dengesi	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Görüntü Çevirme	Flip vertical
HLC (Parlak Işık Dengeleme)	Support
BLC (Arka Işık Dengeleme)	Support
Akıllı IR	N/A
Sis Giderme	Digital defog
Isı Dalgası Azaltma	N/A

Aydınlatıcı 3 satır

Işık Açma/Kapama Kontrolü	Auto/Manual
Sıcak Işık Mesafesi	30 m (98.4 ft.)
Illumination Distance (VF laser)	N/A

Olaylar 2 satır

Temel Algılama	Motion detection, Audio detection, Tampering alarm, Ultra motion detection
Genel İşlevler	Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Ses 5 satır

Ses Sıkıştırma	G.711U, G.711A
Ses Bit Hızı	128 Kbps
Çift Yönlü Ses	Support
Gürültü Bastırma	Support
Örnekleme Hızı	8 kHz, 16 kHz

Depolama 2 satır

Kenar (Edge) Depolama	MicroSD, up to 512 GB
Ağ Depolama	ANR, NAS (NFS)

Ağ 6 satır

Protokoller	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Uyumlu Entegrasyon	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
Güvenlik	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
İstemci Yazılımı	EZStation, UNV-Link, UNV-Link Pro
Web Tarayıcı	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Kullanıcı/Host	Up to 32 users. 3 user levels: administrator, common user and operator

PTZ 12 satır

Ön Ayar Sayısı	N/A
Ön Ayar Devriyesi	N/A
Ön Ayar Görüntü Dondurma	N/A
Ana Konum	N/A
Pan Aralığı	N/A
Tilt Aralığı	0° to 30°
Pan Hızı	N/A
Tilt Hızı	N/A
3D Konumlandırma	N/A
Number of Patrol	N/A
Snow Removal Mode	N/A
Patrol Recording	N/A

Arayüz 5 satır

Ses Giriş/Çıkış	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm Giriş/Çıkış	7/2
Seri Port	1 × RS485
Dahili Hoparlör	N/A
Ağ	1 × RJ45 1000 M Base-TX Ethernet

Sertifikalar 4 satır

EMC	CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020)
Güvenlik Sertifikası	CE LVD (EN 62368-1:2014+A11:2017)
Çevre Sertifikası	CE-RoHS (2011/65/EU; (EU) 2015/863)
Koruma Sınıfı	IP67 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013); IK10 (IEC 62262, Anti-Vandalism Except for the Front Window)

Canlı İzleme 3 satır

Maximum Bitstream	35
Maximum Bandwidth	50Mbps
3D Gizlilik Maskesi	N/A

Genel bakış

Uniview IPC98246EFW-X42-W-VH1 kullanım alanları ve özellikleri.

Uniview IPC98246EFW-X42-W-VH1, Pro serisi 6MP MultiView Çift Işık PTZ Kamera modelidir. Öne çıkanlar: maks. çözünürlük 6 MP, sensör 1/1.8" CMOS, lens 2.2 mm.

Üretici tanımı: 4MP+6MP 42X Wise-ISP MultiView Dual-light Network PTZ Camera

Öne Çıkan Özellikler

Panoramic dual-lens splicing, three-lens design, capturing both the big picture and details at the same time
Both the panorama and detail channels utilize 1/1.8" high-sensitivity CMOS sensors to capture clear images even when light level drops to almost zero at night
Panorama adopts the cutting-edge splicing technology to output a horizontal 200° and vertical 80° stitched image for wide scenes
Panorama supports a maximum of 3680 × 1656@30 fps HD video output, while details supports a maximum of 2688 × 1520@30 fps HD video output
Dual-channel with one IP, provides a panoramic view and live details at the same time
Built-in Wise-ISP algorithm enables intelligent noise reduction and stunning visual effects in low-light conditions
Panorama supports motorized vertical adjustment from 0° to 30° to deal with complex scenes.
Supports panoramic linkage: after an event is detected by the panorama channel, the camera automatically triggers the details channel to track the target and capture snapshots. The supported events include intrusion detection, cross line detection, enter area, and leave area
Supports drag-to-zoom: user can drag on the panoramic image to view the magnified details of the area of interest at the center of the details channel
Supports multiple deep-learning video content analysis, including smart intrusion prevention (SIP) and people flow counting for the panorama channel, and SIP, people flow counting, multi-target detection, and automatic tracking for the details channel
Perimeter protection: supports cross line, enter area, leave area, and intrusion detection; supports classifying and detecting motor vehicles, non-motor vehicles, pedestrians, and triggering alarms
Multi-target detection: supports classifying, detecting, and capturing motor vehicles, non-motor vehicles, and pedestrians; supports metadata extraction for motor vehicles, non-motor vehicles, faces, and human bodies
People counting: including people flow counting and crowd density monitoring, suitable for various application scenarios
Auto tracking: supports classifying and tracking motor vehicles, non-motor vehicles, and pedestrians, and returning to the initial position at the end of the set tracking time
Supports optical defog, automatically adjusts the defog level as needed

Nerelerde kullanılır?

Otopark, site ortak alanı, fabrika sahası ve meydan gibi geniş alanlarda tek kamerayla devriye, yakınlaştırma ve otomatik takip için kullanılır.

Kurulum ve uyumluluk

IPC98246EFW-X42-W-VH1 PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır.

Tüm özellikler

Panoramic dual-lens splicing, three-lens design, capturing both the big picture and details at the same time
Both the panorama and detail channels utilize 1/1.8" high-sensitivity CMOS sensors to capture clear images even when light level drops to almost zero at night
Panorama adopts the cutting-edge splicing technology to output a horizontal 200° and vertical 80° stitched image for wide scenes
Panorama supports a maximum of 3680 × 1656@30 fps HD video output, while details supports a maximum of 2688 × 1520@30 fps HD video output
Dual-channel with one IP, provides a panoramic view and live details at the same time
Built-in Wise-ISP algorithm enables intelligent noise reduction and stunning visual effects in low-light conditions
Panorama supports motorized vertical adjustment from 0° to 30° to deal with complex scenes.
Supports panoramic linkage: after an event is detected by the panorama channel, the camera automatically triggers the details channel to track the target and capture snapshots. The supported events include intrusion dete
Supports drag-to-zoom: user can drag on the panoramic image to view the magnified details of the area of interest at the center of the details channel
Supports multiple deep-learning video content analysis, including smart intrusion prevention (SIP) and people flow counting for the panorama channel, and SIP, people flow counting, multi-target detection, and automatic t
Perimeter protection: supports cross line, enter area, leave area, and intrusion detection; supports classifying and detecting motor vehicles, non-motor vehicles, pedestrians, and triggering alarms
Multi-target detection: supports classifying, detecting, and capturing motor vehicles, non-motor vehicles, and pedestrians; supports metadata extraction for motor vehicles, non-motor vehicles, faces, and human bodies
People counting: including people flow counting and crowd density monitoring, suitable for various application scenarios
Auto tracking: supports classifying and tracking motor vehicles, non-motor vehicles, and pedestrians, and returning to the initial position at the end of the set tracking time
Supports optical defog, automatically adjusts the defog level as needed

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV IPC98246EFW-X42-W-VH1 4MP+6MP 42X Wise-ISP MultiView Dual-light Network PTZ Camera.pdfPDF · IPC98246EFW-X42-W-VH1 Kullanım Kılavuzu - UNV-Network Camera User Manual.pdfPDF · IPC98246EFW-X42-W-VH1 Hızlı Kurulum Kılavuzu - Quick Guide.pdfPDF · IPC98246EFW-X42-W-VH1

Sık sorulanlar

IPC98246EFW-X42-W-VH1 hakkında kısa yanıtlar.

IPC98246EFW-X42-W-VH1 dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

IPC98246EFW-X42-W-VH1 hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Uniview NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

IPC98246EFW-X42-W-VH1 kaç megapiksel?

IPC98246EFW-X42-W-VH1 6 MP çözünürlüğe sahiptir ve 2.2 mm lens kullanır.

IPC98246EFW-X42-W-VH1 fiyatı ne kadar?

IPC98246EFW-X42-W-VH1 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
