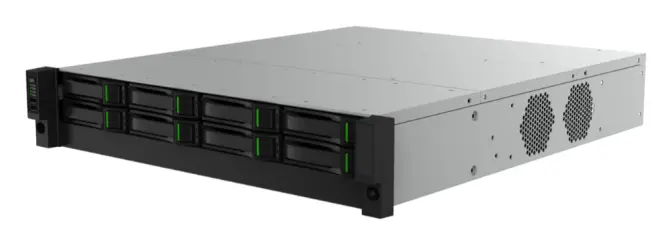

Tiandy TC-S3608 Spec:0/T/2U/V3.2 Video Yönetim Sunucusu (All-in-One)

ModelTC-S3608 Spec:0/T/2U/V3.2

Tiandy TC-S3608 Spec:0/T/2U/V3.2 video yönetim sunucusu (All-in-One): Linux •2 HDMI decoding output, English WEB management interface Built-in Software, Max 1000 video channels, Support access to 7 6 hard disks, One T enterprise-level hard disk is standard equipped.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Linux •2 HDMI decoding output
English WEB management interface Built-in Software
Max 1000 video channels
Support access to 7 6 hard disks
One T enterprise-level hard disk is standard equipped

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün (Malzeme) Kodu	1D.20050.020213

er 6 satır

Overview	K1000 The K1000 is an all-in-one machine with buiIt-in integrated management platform, streaming media middleware, and Tiandy streaming storage software. It can; manage up to 1000 channels
Disk	64G SSD; 24G
or k	64-bit multi-core processor 6T Support 2.5 "or 3.5" SATA; A standard enterprise-class hard disk is used as a data disk (occupying one disk sIot) and cannot store videos, in SATA 1 port.; Each of the other 7 disk sIots supports a maximum of 18 TB hard disks.
g System	openEuler-22.03-LTS-SP1
mber	2U/8
pe Channel Number	Support Raid 0/1/5/6/10/50/60 •Simultaneous image storage and video storage: Video storage performance supports up to 180 channeIs (2Mb, H265) •Use only video storage; Maximum video storage performance 200 channels (2Mb,

e 2 satır

alled Software em	Easy7_CMS_V9.4.0 Video preview, Video playback, Video on the wall, Video preview (WEB version), Video playback (WEB version), Access Control, Vehicle Management,
Bandwidth	Face Application, Passenger Flow Management, Attendance Management, etc. Access bandwidth: 360Mbps Forwarding bandwith:; 360Mbps

Arayüz 4 satır

Arayüz	4
terface	2 (RS-485); 1 (RS-232)
rface	2 USB2.0; 2 USB 3.0
erface	2

Norm 68 satır

upply	AC100V～240V; 50Hz
y of Power Supply	1 (550W)
onsumption	Power rating: 550W
g Temperature	5°C~40°C
g Humidity	10%~90% (No Condensation)
Classification Data Capacity Index	Data Classification Network bandwidth; Calculation Rule Uplink bandwidth; K1000 1000
Number of points	1 point/server; 1000
Number of encoding devices	1000
Number of middleware servers	600
Number of decoders	50
Access point of the master control middleware	1000
User number	The platform comes with 3 system users + supports adding more users; 5003
Organization Area	1000
Number of staff	5000
Customer flow camera	400
Car brake	10
Self-developed PAD	MQTT is installed with the master control service, but cannot be mixed with other pads; 100
Door	120
Face vehicle camera	75
Duration	300
Years	1 year; 0.25
Uplink bandwidth	360
Downlink bandwidth	360
Storage duration	91
Resident User	0.1 * total number of users; 500
Number of PAD+ card readers	1/door; 120
Number of vehicles	0.2/total number of people; 1000
Face mount	0.5/total number of faces and vehicles; 37.5
Vehicle bayonet	0.5/total number of faces and vehicles; 37.5
Daily personnel entry and exit records	2 times/person/day; 10000
Daily vehicle entry and exit records	1 time/car/day; 1000
Face PAD Recording	4 times/day/total number of people; 20000
Access controller events	Access control records; 7
Face camera recording	130 times/day/face card slot; 4875
Vehicle passing record	59 times/day/vehicle checkpoint; 2213
Customer flow camera recording	45/passenger flow cameras; 18000
alarm record	1/total number of devices; 1000
Data Capacity Index	Operation log; 120 items/day/permanent user; 0
Vehicle control alarm	Article/day; 20
Map points	--indivual; 1000
Native decoding performance (output resolution)	4
Video storage performance	2Mbps/point; 180
Video forwarding performance	2Mbps/point; 180
Target library	100
Face recognition alarm	75
Plug-In	i5-8500 16G Soft Decoding; 1080p/4096/H265; 5
720p/4096/H.265	8
4CIF/1024/25/H.265	22
8MP(3840*2160)/8192/H265	1
1080p/4096/H.264	6
720p/4096/H.264	12
4CIF/1024/25/H.264	27
Does not support hard decoding	-
Intel i7-12700 16G NVIDA Ge Force RTX 3050 OEM Soft Decoder	1080p/4096/H265; 15
4CIF/1024/H.265	49
CIF/1024/H.265	104
2K/4096/H.265	9
1080p/4096/H.264	34
4CIF/1024/H.264	128
CIF/1024/H.264	256
2K/4096/H.264	22
No Plug-In	Client configuration i5-9500 16G video preview (using CPU for decoding) Google versions below 9.0 support this performance; Main stream/fixed bitrate/1080p/2048/25/H.26 5; 4
Main stream/fixed bitrate/720p/2048/25/H.265	8
Main stream/fixed bitrate/1080p/2048/25/H.26 4	10
Main stream/fixed bitrate/720p/2048/25/H.264	16
Main stream/variable bit rate/1080p/2048/25/H.265	5
Main stream/variable bit rate/720p/2048/25/H.265	10
Main stream/variable bit rate/1080p/2048/25/H.264	12
