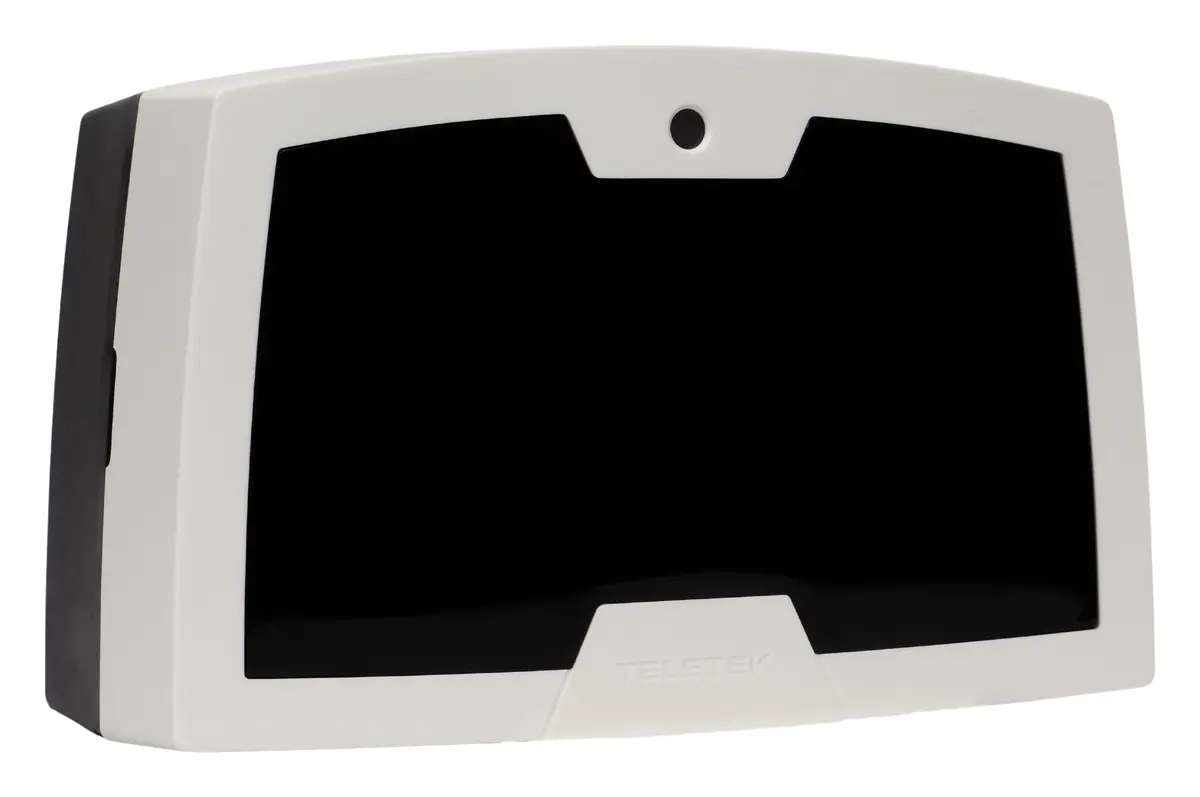

Teletek SensoIRIS BM60 / BM120 Adresli Işın Tipi Duman Dedektörü

Teletek SensoIRIS BM60 / BM120, adresli ışın tipi duman dedektörüdür. Öne çıkanlar: IP65 koruma sınıfı.

SensoIRIS BM60 and BM120 are addressable reflective beam smoke detectors designed for large, open spaces such as warehouses, production halls, atriums and sports facilities.

The detectors connect directly to compatible Teletek addressable fire alarm panels without additional interface modules. Settings and operating parameters can be accessed through the panel menu via the loop connection, simplifying configuration and system management.

An integrated laser pointer, three adjustment screws and automatic calibration support accurate alignment between the detector and reflector. Both models provide a coverage width of up to 15 metres and feature an IP65 enclosure.

Which Model Fits?

SensoIRIS BM60
Detection range from 5 to 60 metres, supplied with one reflector.

SensoIRIS BM120
Detection range from 50 to 120 metres, supplied with four reflectors.

Why Choose SensoIRIS Beam Detectors?

Direct Panel Integration
Configure and monitor the detector through the addressable fire alarm panel.

Simplified Installation
No additional interface module is required between the detector and panel.

Wide-Area Protection
Designed for long, open spaces where point detector installation may be impractical.

Beam detection should still be selected according to ceiling height, airflow, building geometry, obstructions and maintenance access. It should be presented as an option for suitable environments, not as a universal alternative to point detectors.

Looking for the conventional version? Check out the SensoMAG BM60 / BM120.

Nerelerde kullanılır?

Konut, ofis, otel ve endüstriyel alanlarda yangının ilk belirtilerini algılamak için tavana monte edilir.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
