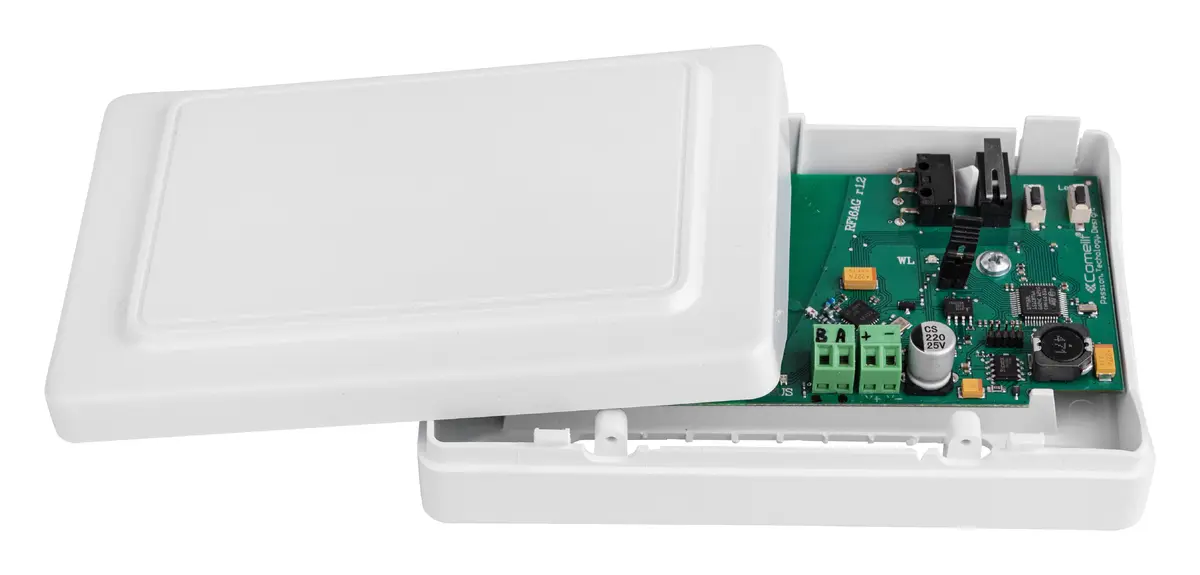

Teletek PAX WL Kablosuz Alarm Modülü

Teletek PAX WL, kablosuz alarm modülüdür.

PAX WL is a wireless expander module that connects PAX wireless devices to compatible Eclipse wired control panels, allowing installers to create hybrid intruder alarm systems without replacing the existing wired architecture. The module connects directly to the Eclipse system bus and becomes part of the panel configuration like other Eclipse modules.

Each PAX WL supports up to 32 wireless PAX devices and up to 99 PAX remote key fobs. Up to four expanders can be connected to one Eclipse control panel, with the total supported capacity depending on the panel model.
Wireless communication is bi-directional using the Beacon+ protocol at approximately 868 MHz. Six backup radio channels allow automatic channel switching if interference or jamming affects communication. Open-space radio distance is specified at up to 1,500 m.

Why Choose PAX WL?

Add Wireless Without Replacing Eclipse
Extend a compatible wired Eclipse installation with PAX wireless devices while keeping the existing control-panel architecture.

Flexible System Expansion
One module supports up to 32 wireless devices and 99 remote key fobs, with up to four PAX WL expanders supported per Eclipse panel.

Resilient Wireless Communication
Bi-directional Beacon+ communication and six backup radio channels help maintain communication when interference affects the active channel.

At a Glance

• • Wireless expander for compatible Eclipse panels
  • Supports PAX wireless devices
  • Up to 32 wireless devices per module
  • Up to 99 PAX remote key fobs per module
  • Up to 4 PAX WL modules per Eclipse panel
  • Bi-directional Beacon+ communication at approximately 868 MHz
  • Up to 1,500 m radio distance in open space
  • Two anti-sabotage tamper switches

Nerelerde kullanılır?

Alarm sisteminin menzilini, iletişim yollarını veya otomasyon yeteneklerini genişletir; aydınlatma, kapı ve elektrikli cihazların kontrolüne olanak tanır.
