PoE Switch RG-CS63

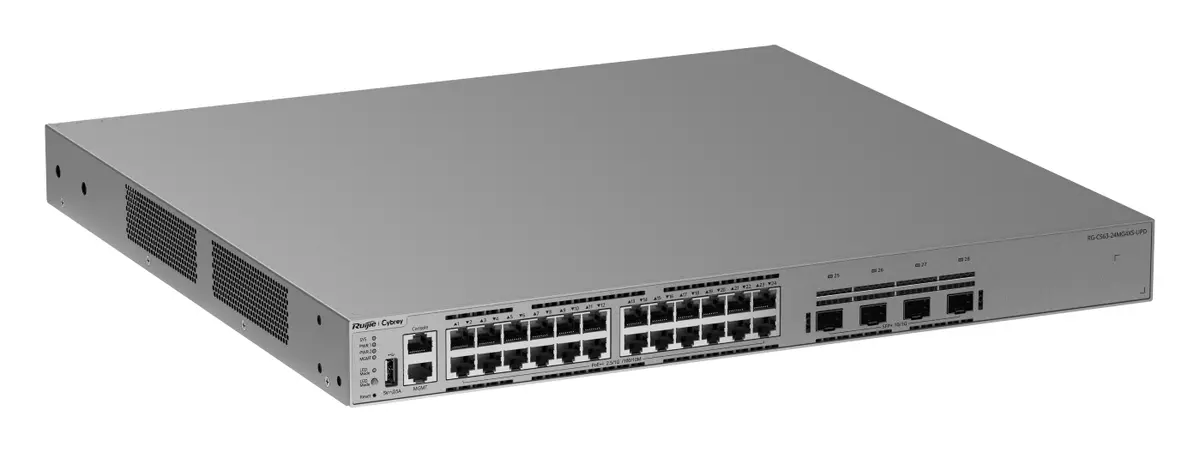

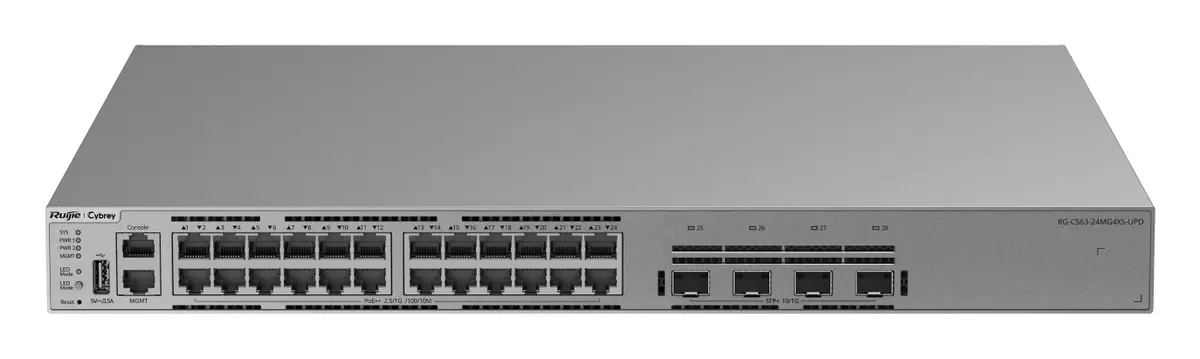

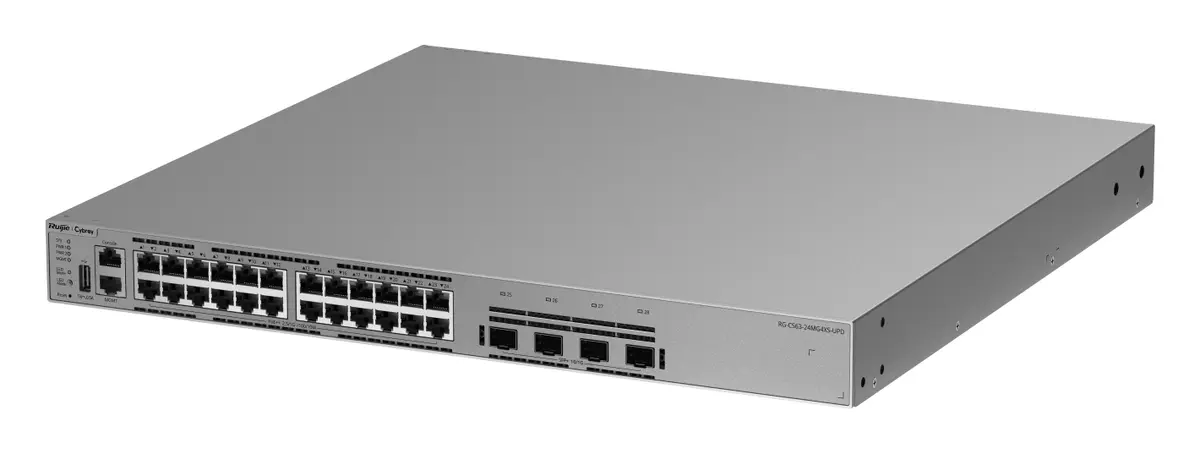

Ruijie RG-CS63-24MG4XS-UPD 24 Port 2.5G Multi-Gigabit PoE++ 4×10G SFP+ L3 Yönetilebilir Switch

ModelRG-CS63-24MG4XS-UPD

Ruijie RG-CS63-24MG4XS-UPD, 24 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 90 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 24 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Class 8 90 W high-power PoE
10 kV port surge protection
Supports operating temperatures up to 50°C
Hot-swappable dual power supplies
Dual flash, dual boot, and dual bin
Circuit isolation protection based on optical ports
Supports up to 8 devices in a VSU
Comprehensive Layer 3 service features

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Port Özellikleri 4 satır

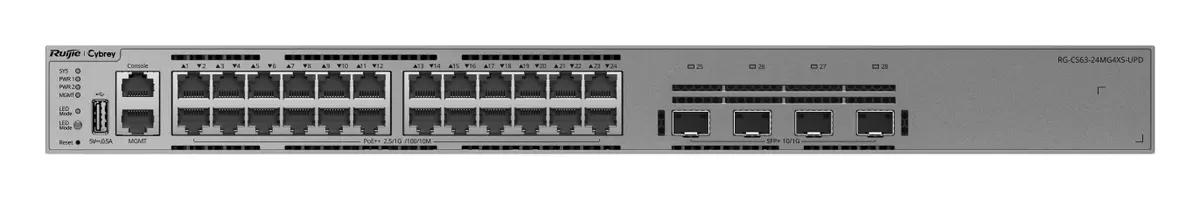

Sabit Servis Portları	24 x 10/100/1000/2.5GBASE-T ports, supporting PoE/PoE+/PoE++; 4 x 1GE/10GE SFP+ ports
Konsol Portu	1
Yönetim Portu	1
USB	1

Sistem Özellikleri 8 satır

Anahtarlama Kapasitesi	200 Gbps (Gbit/s)
İletim Hızı	148.8 Mpps
Packet buffer size	64 Mbit
İşlemci (CPU)	Quad-core ARM A55 CPU frequency up to 1.2 GHz
SDRAM	2 GB+4 bit ECC
Flash Bellek	512 MB
BootROM	16 MB
Gerçek Zamanlı Saat (RTC)	Evet

Boyutlar ve Ağırlık 5 satır

Cihaz Boyutları (G x D x Y)	442 mm x 420 mm x 43.6 mm (17.4 in. x 16.54 in. x 1.72 in.)
Kabin Yüksekliği	1 RU
Packaging dimensions (W x D x H)	570 mm x 565 mm x 200 mm (22.44 in. x 22.24 in. x 7.87 in.)
Cihaz Ağırlığı	5.1 kg (11.24 lbs)
Packaging weight	7.57 kg (16.69 lbs)

Güç Kaynağı ve Tüketim 9 satır

Güç Modülü	RG-PA600I-P-FC; RG-PA1000I-P-FC
Besleme Modu	2 x pluggable power modules (not pre-installed)
Maks. Güç Tüketimi	Full-load:; 110 V: 1900 W; 220 V: 1850 W; No-load:; 110 V: 93.5 W; 220 V: 90.9 W
Güç Girişi	RG-PA600I-P-FC (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 8 A; RG-PA1000I-P-FC (AC input 1):; Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz; Maximum input current: 12 A; RG-PA1000I-P-FC (AC input 2):; Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63
PoE	Evet
PoE-out Port Sayısı	All RJ45 ports support PoE/PoE+ and PoE++ power supply (IEEE 802.3af/at and 802.3bt).
PoE Bütçesi	The PoE budget varies depending on the power modules used:; 1 x RG-PA600I-P-FC: 470 W; 1 x RG-PA1000I-P-FC: 800 W; 2 x RG-PA600I-P-FC: 940 W; 2 x RG-PA1000I-P-FC: 1600 W; Note: Mixed use of the RG-PA600I-P-FC and RG-PA1000I-P-FC power modules will be supported after a device software upgrade.
Port Başına PoE Bütçesi	90 W
PoE power cable pairs	Four pairs (1-2, 3-6, 4-5, and 7-8 pairs)

Ortam ve Güvenilirlik 20 satır

Çalışma Sıcaklığı	0°C to 50°C (32°F to 122°F)
Depolama Sıcaklığı	–40°C to +70°C (–40°F to +158°F)
Çalışma Nemi	10% RH to 90% RH (non-condensing)
Depolama Nemi	5% RH to 95% RH (non-condensing)
Çalışma Rakımı	0 m to 5000 m (0 ft. to 16,404.20 ft.)

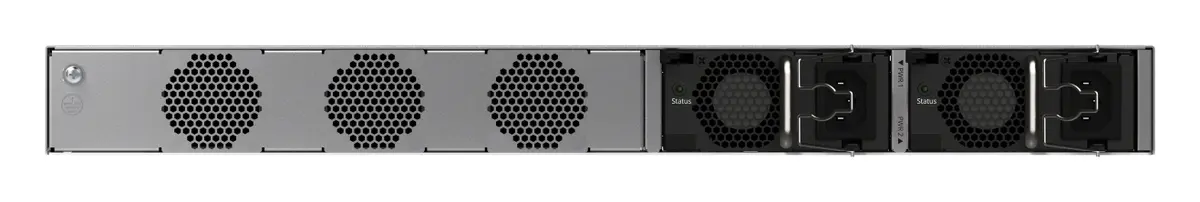

Soğutma	Air cooling, front-to-rear airflow, left-to-rear airflow
Fan	3 x fixed fans
Gürültü	27°C (80.6°F): 61 dB
Fan speed adjustment	Intelligent speed adjustment
Güç Yedekliliği	Yes; 2 x RG-PA1000I-P-FC: 1+1 power redundancy (only PoE load ≤ 800 W); 2 x RG-PA600I-P-FC: 1+1 power redundancy (only PoE load ≤ 470 W)
Hot swapping of power modules	Evet
Hot swapping of cables	Evet
USB hot swapping	Evet
Aşırı Gerilim Koruması	Service port:±10 kV for common mode; MGMT port:±10 kV for common mode; Power connector: ±6 kV for common mode and ±6 kV for differential mode
ESD prevention	Contact discharge: 6 kV; Air discharge: 8 kV
Temperature monitoring and protection	Temperature monitoring, temperature alarm, and over-temperature protection
Fan İzleme	Fault alarm
Güç Kaynağı İzleme	Monitoring of power supply model and status; Power supply failure alarming
MTBF	> 400,000 hours
Energy efficiency	Evet

Certification and Regulatory Compliance 2 satır

Güvenlik Standartları	IEC 62368-1 EN 62368-1
EMC Standartları	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN IEC 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN IEC 61000-4-11

Ürün Bilgisi 1 satır

Garanti	5 years

Katman 2 Özellikleri 12 satır

VLAN	IEEE 802.1Q; Port-based VLAN; MAC-based VLAN; Voice VLAN; IP/Subnet-based VLAN; Protocol-based VLAN; Private VLAN; Super VLAN; GVRP
Spanning tree	IEEE802.1d STP; IEEE802.1w RSTP; Standard 802.1s MSTP
LLDP	LLDP; LLDP-MED
Basic QinQ	Basic QinQ; Transparent transmission of double-tagged packets
Selective QinQ	Selective QinQ
REUP	REUP
RLDP	RLDP
ERPS(G.8032)	ERPS(G.8032)
Maximum number of global MAC addresses (The device must be able to learn the maximum number of MAC addresses in the full	Default: 64000 (subject to the UFT capacity)
Maximum number of created VLANs	4094
Jumbo frame length / Port MTU	9216
Layer 2 traffic convergence time	≤ 200 ms

Katman 3 Özellikleri 4 satır

ARP	ARP; anyIP
ND	Neighbor discovery
VRF	IPv4 and IPv6 VRF
Maks. ARP Kaydı	Recommended default: 30000 (subject to the UFT capacity)

Routing Features 11 satır

Static routing	IPv4 static routing; IPv6 static routing
OSPF	OSPFv2 basics; OSPFv3 basics
BGP4	BGP4 basics
BGP4+	BGP4+ basics
IS-ISv4	IS-ISv4 basics
IS-ISv6	IS-ISv6 basics
RIP	RIP; RIPv2
RIPng	RIPng
PBR	IPv4 PBR; IPv6 PBR
IPv4 routing table size	32000
IPv6 routing table size	8000 (resources shared with IPv4 routing)

Multicast Features 10 satır

IGMP snooping	IGMP snooping v1/v2; IGMP snooping v3
IGMP	IGMPv1/v2/v3; IGMP proxy
MLD snooping	MLD snooping; MLD snooping v2
MLD	MLDv1/v2
PIM-SMv4	PIM-SMv4; PIM-SSMv4
PIM-DMv4	PIM-DMv4
PIM-SMv6	PIM-SMv6; PIM-SSMv6
MSDP	MSDP
Maximum number of IPv4 multicast routing table entries	4000
Maximum number of IPv6 multicast routing table entries	4000

ACL ve QoS 5 satır

ACL	IP standard ACL; IP extended ACL; MAC extended ACL; IPv6 ACL; Expert ACL; Time-based ACL; ACL-based redirection; ACL80
QoS	Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences; SP; WRR; SP+WRR; DRR; SP+DRR; WFQ; SP+WFQ; Congestion avoidance: tail drop; Traffic shaping (ingress/egress)
Maximum number of inbound ACE entries	4500
Maximum number of outbound ACE entries	1000
Maximum number of QoS hardware queues	8 unicast queues + 8 multicast queues

Security Features 13 satır

802.1X	Port-based authentication; MAC-based authentication
AAA	AAA
Web-based authentication	HTTP-based authentication; HTTPS-based authentication
IP source guard	IP source guard
IPv6 source guard	IPv6 source guard
SAVI	SAVI
Global IP-MAC binding	Configuring global IP-MAC binding entries
TACACS+	TACACS+
CPP	Hardware CPP
Port İzolasyonu	Port isolation
RADIUS	RADIUS
Port Security	Port Security
NFPP	NFPP

High Availability 6 satır

VSU Sanallaştırma	Device virtualization
VRRP	IPv4 VRRPv2; IPv4 VRRPv3; IPv6 VRRP
VRRP+	IPv4 VRRP+; IPv6 VRRP+
BFD	BFD detection
DLDP	DLDP
Maks. VSU Üye Sayısı	8

Interface Features 2 satır

Aggregate interface	LACP basics
Mirroring	SPAN; RSPAN

Management Features 7 satır

SNMP	SNMPv1/v2c/v3; RMON (1, 2, 3, 9)
SSH	SSHv2; SSHv1
sFlow	sFlow
gRPC	gRPC framework
NETCONF	NETCONF
SON	SON
Cybrey Cloud	Cybrey Cloud

OAM Features 1 satır

PoE	Uninterrupted power supply upon warm start; PoE port priority

IP Servisleri 7 satır

DHCP	DHCPv4 client; DHCPv4 server; DHCPv4 relay; DHCPv4 snooping; DHCPv6 client; DHCPv6 relay; DHCPv6 snooping
ND snooping	ND snooping
DNS	DNS client; DNSv6 client
NTP	NTP client; NTP server
SNTP	SNTP client; SNTP
FTP	FTP client; FTP server
TFTP	TFTP client; TFTP server

System Features 1 satır

USB	USB 2.0

Device 1 satır

Main unit	1

Aksesuarlar 6 satır

Rack-mount bracket	2
Rack-mount guide	2
Rack-mount guide rail	2
Screw	10 x M4 x 8 mm screws
Rubber pad	4
Grounding wire	1

Manual 2 satır

User Manual	1
Warranty Card	1

Genel bakış

Ruijie RG-CS63-24MG4XS-UPD kullanım alanları ve özellikleri.

Offices, hotels, warehouses, hospitals, and schools.

RG-CS63-24MG4XS-UPD Layer 3 Access Switches with Multi‑Gig Ports and 10G SFP+ Uplinks

Access Switches with 10G Uplinks

Equipped with 24 x 10/100/1000/2.5GBASE-T ports and 4 x 10G SFP+ uplinks, the access switches deliver high‑speed access for next‑gen Wi‑Fi 8 APs and bandwidth‑hungry clients.

90 W PoE (Class 8)

Class 8 90 W PoE powers high‑power devices like industrial cameras, smart displays, and Wi-Fi 7 APs.

8-unit stacking for flexible expansion helps maintain continuous service during device failures.

Dual-boot & Dual-bin

Dual-boot for reliable device startup and reboot, and dual-bin for redundant system partitions help maintain stable service operation.

Area-based Port Power Supply

When an optical transceiver experiences a short-circuit fault, Cybrey switches support optical port isolation to help prevent broader system impact.

Layer 3 Capabilities

Cybrey switches provide full Layer 3 capabilities, supporting both Layer 2 flat deployment and Layer 3 networking. They deliver fast convergence and fault domain isolation, improve SLA performance, and reduce TCO.

10 kV Surge Protection & 50°C Operation

Compared with typical switches that support 6–8 kV surge protection and operation up to 45°C, Cybrey switches deliver 10 kV surge protection and stable performance at temperatures up to 50°C, making them suitable for harsh environments.

In the Box

Rack-mount guide rail

M4 x 8 mm screws

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

Cybrey Cloud, Make Your Business Easy

MAC Address Management

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-CS63-24MG4XS-UPD Compliance DocumentPDF · RG-CS63-24MG4XS-UPD

Sık sorulanlar

RG-CS63-24MG4XS-UPD hakkında kısa yanıtlar.

RG-CS63-24MG4XS-UPD IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 90 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

RG-CS63-24MG4XS-UPD kaç portlu?

RG-CS63-24MG4XS-UPD 24 porta sahiptir.

RG-CS63-24MG4XS-UPD fiyatı ne kadar?

RG-CS63-24MG4XS-UPD için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
