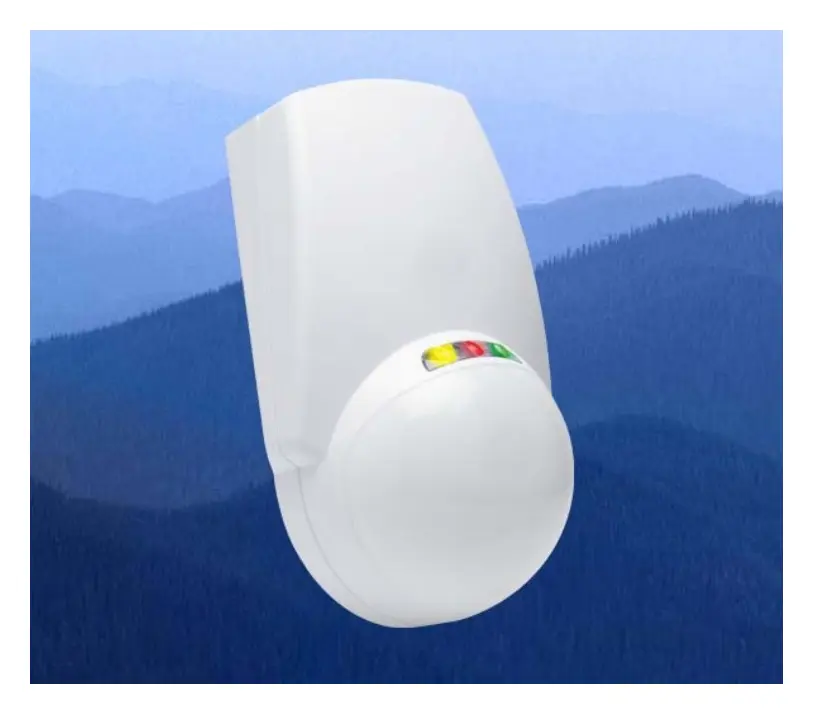

Rosslare PYR-2023 Dual PIR/Microwave Motion Detector with Anti-Masking PIR Hareket Dedektörü

Rosslare’s PYR-2023 was designed with a focus on high quality and reliability as the first priority. The microwave sensor unit improves accuracy and distance detection.

Its highly sensitive sensor is based on a state-of-the-art optics with an advanced dual-element pyro-sensor and 12 meter broad coverage. The optic pattern includes look- down (creep) zones protection using a mirror and curtain zones with a unique snap-in curtain mask.

The PYR-2023's features include: an internal digital microcontroller with sophisticated algorithms for superior motion analysis and false alarm immunity, selectable pulse counting, and an A-to-D signal analyzer with temperature compensation.

The PYR-2023 has cover and wall tamper detection, and jumpers for selecting sensitivity and LED operation.

Main Features

• 12 m (39 ft.) broad coverage
• Digital motion analysis and real-time A-to-D processing with internal ambient temperature compensation
• Microwave sensor unit for improved accuracy and distance in detection
• Unique “fast” curtain mask plastic for narrow detection
• High-sensitivity dual-element pyro-sensor made by world-leading manufacturers
• Attractive curved design, with a professional look and feel
• Optional swivel mounting bracket for mounting in flexible locations (BR-21) with Anti-Masking microwave motion detector is ideal for It combines PIR and breakthrough detection of movement outside the coverage spherical lens optics with mirror capability, and anti-masking. Complex algorithms provide superior catch unit is encased in an elegantly designed
• Selectable pulse counting for normal or harsh environments
• Advanced spherical lens with SSFL mirror look- down, enabling detection as close as 50 cm
• Anti mask feature for high security applications OR, AND detection with automatic select
• Draft and insect immunity with a sealed chamber for the optical components
• LED for walk test that can be disabled after installation
• Meets or exceeds the USA Standard: UL 639, Intrusion Detection Units
• Meets or exceeds CENELEC 50131-2-2 PIR Standard, Security Grade 2, and Environmental Grade 1 PYR-2023 Dual PIR/Microwave Motion Detector with Anti-Masking

Nerelerde kullanılır?

Konut, ofis ve mağazalarda hırsız alarm sisteminin algılama katmanını oluşturur; doğru konumlandırıldığında kör nokta bırakmadan koruma sağlar.

Tüm özellikler

• 12 m (39 ft.) broad coverage
• Digital motion analysis and real-time A-to-D processing with internal ambient temperature compensation
• Microwave sensor unit for improved accuracy and distance in detection
• Unique “fast” curtain mask plastic for narrow detection
• High-sensitivity dual-element pyro-sensor made by world-leading manufacturers
• Attractive curved design, with a professional look and feel
• Optional swivel mounting bracket for mounting in flexible locations (BR-21) with Anti-Masking microwave motion detector is ideal for It combines PIR and breakthrough detection of movement outside the coverage spherical l
• Selectable pulse counting for normal or harsh environments
• Advanced spherical lens with SSFL mirror look- down, enabling detection as close as 50 cm
• Anti mask feature for high security applications OR, AND detection with automatic select
• Draft and insect immunity with a sealed chamber for the optical components
• LED for walk test that can be disabled after installation
• Meets or exceeds the USA Standard: UL 639, Intrusion Detection Units
• Meets or exceeds CENELEC 50131-2-2 PIR Standard, Security Grade 2, and Environmental Grade 1 PYR-2023 Dual PIR/Microwave Motion Detector with Anti-Masking
