Rosslare PX-13 Rugged Piezoelectric Switches Çıkış Butonu

Rosslare's PX-13 is a general purpose high-performance 22-mm panel-mounted normally open (N.O) piezoelectric switch suited for long-life and rugged-use applications. Made from AL6061 aluminum alloy material with Type ii anodization, the unit is available in 7 colors. The PX-13 requires no external power source to operate; it is anti-vandal, water-resistant, and weather-resistant, and can be operated with fingers, gloves, and through elastomeric overlays.

Rosslare’s PX-13 is heavy duty, non-sparking, nonmagnetic, corrosion-resistant, and anti-vandal, and is designed for both indoor and outdoor use.

The switch features solid state Piezoelectric Switch Technology generating a dry contact N.O. pulse simply by the touch of a finger, with no moving parts.

The PX-13 features virtually an unlimited lifespan of over 20 million uses, which is the ideal benefit of piezoelectric technology, and is tested to work in harsh conditions of -40°C to 70°C.

PX-13 meets IP68 ingress protection – resilient to submerging in water and resistant to dirt and dust – making it suitable for both indoor and outdoor conditions.

Main Features

• Easy to install and use
• Supports a wide range of switch voltages from 0 to 30 VDC high-performance 22-mm panel-mounted suited for long-life and rugged-use with Type ii anodization, the unit no external power source to and weather-resistant, and can be elastomeric overlays.
• Piezoelectric technology allows sensing actuation within a solid metal enclosure, making the devices rugged and waterproof; meets IP68
• Fully-potted design prevents penetration of dirt, dust and water
• Require no operating power, capable of actuating a dry contact input

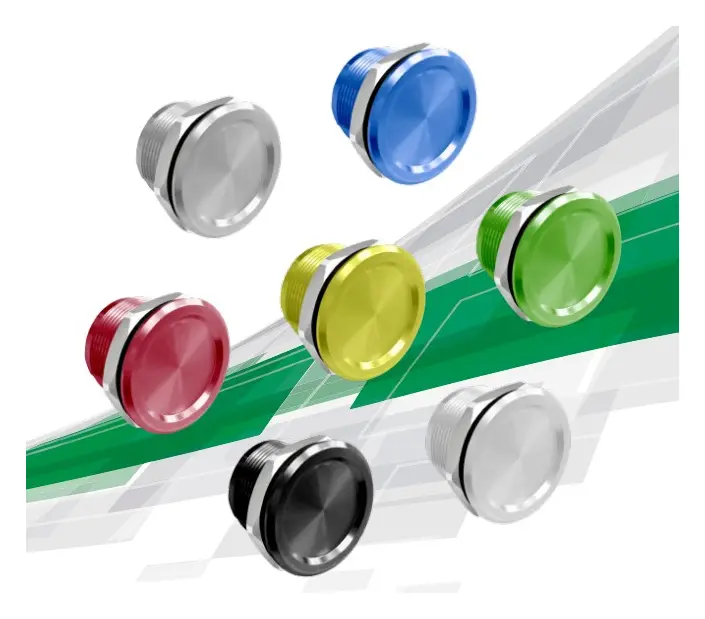

• Available in a range of seven attractive anodized aluminum colors – black, natural (mat), gold, green, red, blue, and silver
• SMT designed electronics for higher quality, superior performance, and reduced cost
• Compatible with Rosslare’s access controllers as a REX or a system input (alarm or event)
• No polarity considerations for the switch
• Meets RoHS requirements

Tüm özellikler

• Easy to install and use
• Supports a wide range of switch voltages from 0 to 30 VDC high-performance 22-mm panel-mounted suited for long-life and rugged-use with Type ii anodization, the unit no external power source to and weather-resistant, and
• Piezoelectric technology allows sensing actuation within a solid metal enclosure, making the devices rugged and waterproof; meets IP68
• Fully-potted design prevents penetration of dirt, dust and water
• Require no operating power, capable of actuating a dry contact input
• Available in a range of seven attractive anodized aluminum colors – black, natural (mat), gold, green, red, blue, and silver
• SMT designed electronics for higher quality, superior performance, and reduced cost
• Compatible with Rosslare’s access controllers as a REX or a system input (alarm or event)
• No polarity considerations for the switch
• Meets RoHS requirements
