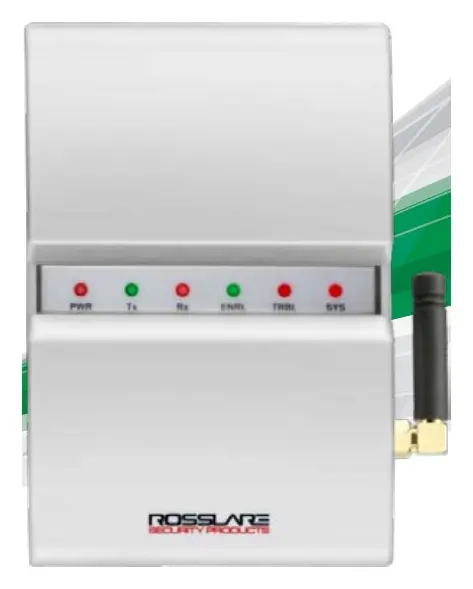

Rosslare MD-W11 Wireless Access Control Door Interface Geçiş Kontrol Modülü
Geçiş Kontrol Paneli

Rosslare MD-W11 Wireless Access Control Door Interface Geçiş Kontrol Modülü

ModelMD-W11

Rosslare MD-W11 geçiş kontrol modülü: Maximum range of 70 meters (230 ft) indoors and up to 300 meters (985 ft) outdoors with an external fixed antenna, depending on RF related environmental conditions, Overall response time of 500 ms when used with Rosslare’s AC-225 controller and readers. Respon.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Maximum range of 70 meters (230 ft) indoors and up to 300 meters (985 ft) outdoors with an external fixed antenna, depending on RF related environmental conditions
  • Overall response time of 500 ms when used with Rosslare’s AC-225 controller and readers. Response time depends on RF link quality, the
  • Transfers proximity card information as well as LED control, reader tamper, lock relay commands, and REX and Door Monitor events between the coupled units
  • The Near unit is powered using the controller's power supply. The Far unit is powered by a local wall transformer. A built-in charger provides a power backup option
  • Protected housing with space for Rosslare’s BT- 04, 12 VDC 800 mAh, Sealed Lead-Acid battery. Suitable for Indoor use
  • Available in HR-869 MHz and GR-433 MHz bands

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 3 satır
Çalışma Gerilimi AralığıFar unit: 12–24 VAC, 15–24 VDC Near unit: 13.8 VDC from controller's power supply/wall adapter
Input Current, MaxStandby: 70 mA Maximum: 160 mA
Battery Charger12 V Sealed Lead-Acid, up to 7 Ah (far unit only)
Çalışma Özellikleri 9 satır
Maximum RangeRange depends on RF related environmental conditions Up to 500 ms with Rosslare’s access controllers and readers
Response TimeResponse time depends on RF link quality, number of doors used, and controller and reader response time Far unit: One 5 A Form-C relay
Output RelaysNear unit: Two 1 A Form-C relays
Output TypesDry contact and open collector Bi-directional RF, narrow band. Fast anti-collision rolling code
Communicationsprotocol with data protection. Available in HR-869 MHz and GR- 433 MHz bands, with four selectable channels Card and PIN, lock commands, REX, door monitor, LED control and
Data Transferreader tamper Full supervision over the remote unit
Supervisory & AlertsAlert outputs at the Near unit for supervision failure, system tamper, reader tamper, low battery, and power failure Wiegand 26-, 32-,34-, and 40-Bit, 26-Bit with Facility code, 32-Bit
Supported Card transmission formatsReverse Single key Wiegand 6-Bit (Rosslare format with parity), Single key
Supported PIN code formatsWiegand 8-Bit, 4 keys binary Wiegand 26-Bit, 1 to 5 keys, Wiegand 26-Bit, 6 keys BCD and parity bits
Çevresel Özellikler 3 satır
Çalışma Sıcaklığı-10°C to 50°C (14°F to 122°F)
Çalışma Nemi0 to 95% (non-condensing)
Kullanım OrtamıIndoor use
Fiziksel Özellikler 2 satır
Boyutlar (Y x G x D)13 x 8.7 x 3.2 cm (5.1 x 3.42 x 1.26 in.)
Ağırlık155 g (5.5 oz)
Genel 2 satır
Sistem BileşenleriRosslare’s Access Control Panels Rosslare’s 26-Bit readers
Garanti2-year Limited Product Warranty

Genel bakış

Rosslare MD-W11 kullanım alanları ve özellikleri.

The MD-W11 Wireless Access Control Door interface consists of two units per door, one located near the controller (the Near unit) and the other near the door (the Far unit). The Near unit is connected to a Rosslare door controller The Far unit is connected to proximity card readers or keypads.

A local charger and backup battery option for the remote unit keeps the door and reader functioning even during power loss.

Full supervision of the remote unit and event signals including supervision failure, tamper, low battery, and power loss of the Far unit are reported to the Near unit and to the controller.

Bi-directional RF communication with data protection uses fast proprietary, anti-collision and rolling code protocol; narrow band RF provides high reliability of the wireless link on regular ISM bands.

Main Features

  • Maximum range of 70 meters (230 ft) indoors and up to 300 meters (985 ft) outdoors with an external fixed antenna, depending on RF related environmental conditions
  • Overall response time of 500 ms when used with Rosslare’s AC-225 controller and readers. Response time depends on RF link quality, the
  • Transfers proximity card information as well as LED control, reader tamper, lock relay commands, and REX and Door Monitor events between the coupled units
  • The Near unit is powered using the controller's power supply. The Far unit is powered by a local wall transformer. A built-in charger provides a power backup option
  • Protected housing with space for Rosslare’s BT- 04, 12 VDC 800 mAh, Sealed Lead-Acid battery. Suitable for Indoor use
  • Available in HR-869 MHz and GR-433 MHz bands

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · MD-W11

Sık sorulanlar

MD-W11 hakkında kısa yanıtlar.

MD-W11 fiyatı ne kadar?
MD-W11 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
