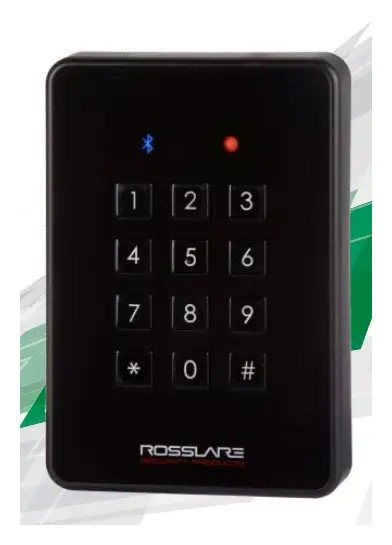

Rosslare AY-H6355BT CSN SMART Smart Card Reader with Keypad and NFC-ID and BLE-ID Tuş Takımı (PIN Okuyucu)

ModelAY-H6355BT

Rosslare AY-H6355BT tuş takımı (pin okuyucu). Öne çıkanlar — çalışma gerilimi aralığı: 8 to 16 VDC from a regulated power supply; kullanım ortamı: outdoor use.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

NFC-ID is supported with Rosslare’s APP-A415 NFC-ID Credential App for Android in Host Card Emulation (HCE) mode*
BLE-ID is supported with Rosslare BLE-ID Credential apps for iOS and Android OS*
Eight keypad transmission formats are available
Mounting options for US gang-box and A)
Sleek and modern design, tact keys, superior mechanics, 10-wire 5-m cable.
Addressable OSDP connectivity, up to 32 addresses using DIP switches
Compatible with CS-HCT Hardware Configuration Tool for Windows application
Two tri-colored LED indicators, 1 audible buzzer

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 7 satır

Çalışma Gerilimi Aralığı	8 to 16 VDC from a regulated power supply
Akım (12 VDC)	Standby: 120 mA, Maximum: 220 mA Contactless 13.56 MHz and NFC – Up to 7 cm (2.8 in.)
Read Range*	Bluetooth BLE 4.1 Connection – Up to 10 m ( 32 ft) open air
Tamper Output**	Open collector, active low, max. sink current 16 mA
Control Inputs**	Dry Contact, N.O.
Tuş Takımı	3x4 matrix backlit keypad – 8 modes of transfer to host panel
Reader Data Output Formats	CSN Wiegand 26-Bit*** and keypad with eight output formats and RS485 – OSDP

Çevresel Özellikler 3 satır

Kullanım Ortamı	outdoor use
Çalışma Sıcaklığı	-35°C to 66°C (-31°F to 150°F)
Çalışma Nemi	0% to 95% (non-condensing)

Fiziksel Özellikler 2 satır

Boyutlar (Y x G x D)	110.7 × 75 × 18.2 mm (4.4 x 3 x 0.7 in.)
Ağırlık	190 g (6.7 oz.)

Genel 2 satır

Sistem Bileşenleri	The AYC-H6355BT readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.
Garanti	5 yıl sınırlı garanti

Genel bakış

Rosslare AY-H6355BT kullanım alanları ve özellikleri.

The innovative AY-H6355BT reader from Rosslare’s CSN SMART™ series features support for four types of credentials – Rosslare BLE-ID™, Rosslare NFC-ID™, backlit PIN code, and 13.56 MHz RFID contactless UID. Featuring IP-65 (all weather potted) construction, it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility.

The AY-H6355BT advertises a BLE beacon with 2 services.

The BLE-ID to Wiegand service accepts Rosslare BLE-ID credential apps, and the BLE-Admin service accepts configuration connection from Rosslare BLE-Admin apps.

The built-in 13.56 MHz reader can read the CSN of the most popular 13.56 MHz smart cards in the security industry, as well as Rosslare NFC-ID using Rosslare’s APP- A415 Rosslare NFC-ID credential app for Android. The reader supports configuration using RFID configuration cards, and its 12-key waterproof backlit keypad can be used to enter PIN codes for a total of 4-types of credentials support. For higher security, dual factor authentication is possible by combining any BLE-ID and PIN Code, Card+ PIN.

The LOCAL ONLY apps for Android and iOS smartphones are published on Google Play or App Store and recommended for general purpose access control applications. The AY-H6355 produces selectable bit-length Wiegand format from 26-Bit to 64-Bit on a standard Wiegand wired connection and supports the Open Standard Device Protocol (OSDP) connection. Four individual control lines provide green LED control, red LED control, buzzer control, and optical tamper signals.

Main Features

NFC-ID is supported with Rosslare’s APP-A415 NFC-ID Credential App for Android in Host Card Emulation (HCE) mode*
BLE-ID is supported with Rosslare BLE-ID Credential apps for iOS and Android OS*
Eight keypad transmission formats are available
Mounting options for US gang-box and A)
Sleek and modern design, tact keys, superior mechanics, 10-wire 5-m cable.
Addressable OSDP connectivity, up to 32 addresses using DIP switches
Compatible with CS-HCT Hardware Configuration Tool for Windows application
Two tri-colored LED indicators, 1 audible buzzer
Optical wall tamper detection
Blue backlit keypad with power saving options (On, Off, Dimming)
IP68 rated and made of tough polycarbonate UV- resistant plastic

Nerelerde kullanılır?

Alarm sistemini kurmak, devreden çıkarmak ve acil durumda panik alarmı vermek için kapı girişlerine veya kullanıcının yanına konumlandırılır.

Tüm özellikler

NFC-ID is supported with Rosslare’s APP-A415 NFC-ID Credential App for Android in Host Card Emulation (HCE) mode*
BLE-ID is supported with Rosslare BLE-ID Credential apps for iOS and Android OS*
Eight keypad transmission formats are available
Mounting options for US gang-box and A)
Sleek and modern design, tact keys, superior mechanics, 10-wire 5-m cable.
Addressable OSDP connectivity, up to 32 addresses using DIP switches
Compatible with CS-HCT Hardware Configuration Tool for Windows application
Two tri-colored LED indicators, 1 audible buzzer
Optical wall tamper detection
Blue backlit keypad with power saving options (On, Off, Dimming)
IP68 rated and made of tough polycarbonate UV- resistant plastic

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AY-H6355BT

Sık sorulanlar

AY-H6355BT hakkında kısa yanıtlar.

AY-H6355BT fiyatı ne kadar?

AY-H6355BT için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
