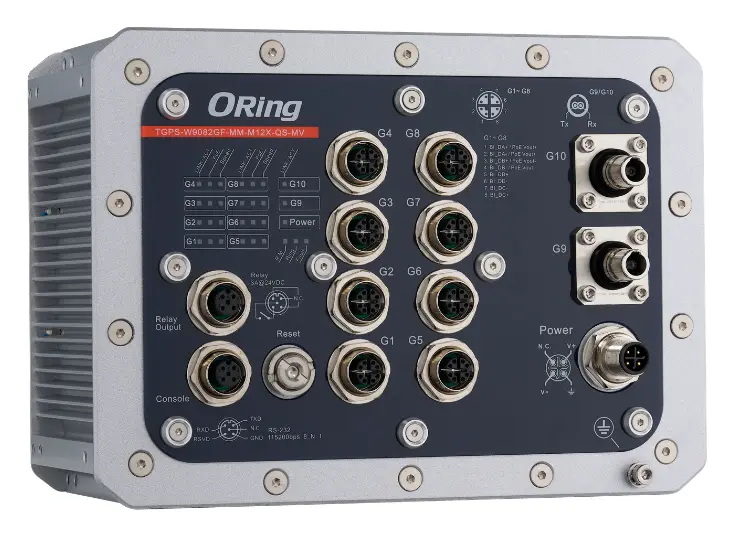

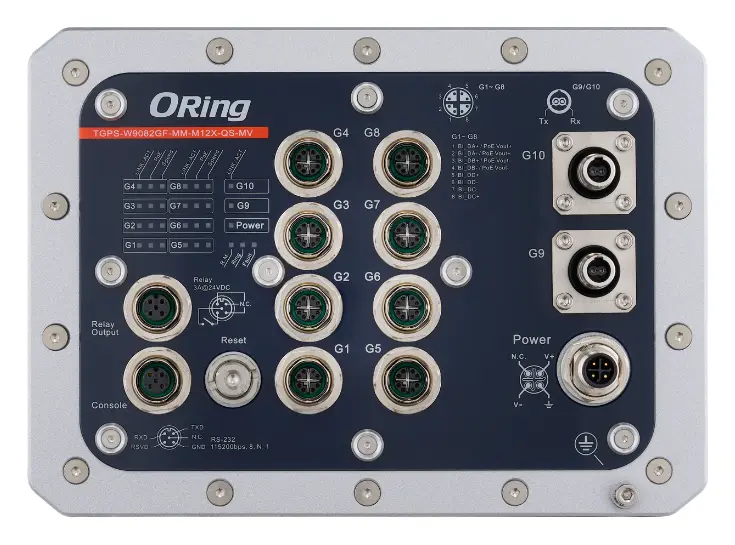

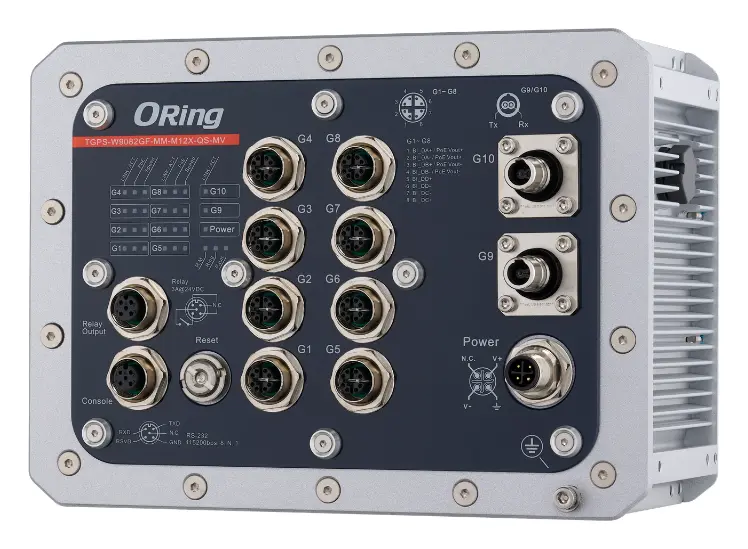

ORing TGPS-W9082GF-MM-M12X-QS-MV-IP54 EN50155 Yönetilebilir PoE Switch ve 8GE PoE ve 2G Q-ODC Multi-mode, IEEE 802.3af/at, IP54 EN50155 Demiryolu PoE Switch

ORing TGPS-W9082GF-MM-M12X-QS-MV-IP54 – EN50155 Managed PoE Switch with 8GE PoE and 2G Q-ODC Multi-mode, IEEE 802.3af/at, IP54, 110VDC. Bu ürün ORing Industrial Networking'in EN50155 Demiryolu PoE Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Güç Tüketimi (Tipik): 17 Watts (PoE output not include)
• Yedekli Güç Girişi: 72/110 (50.4-137.5) VDC on 4-pin M12 S-coding, male connector
• Toplam PoE Çıkış Gücü: 95 watts Max.
• Kasa: IP-54, Iron
• MAC Adres Tablosu: 8K
• Jumbo Frame: Up to 9.6K Bytes
• Çalışma Sıcaklığı: -40 to 75℃ (-40 to 167℉)
• Garanti: 5 years
• MTBF: 258060 hrs.

Temel Özellikler (Features)

• Leading EN50155-compliant Ethernet switch for rolling stock application
• Supports 2 Gigabit fiber ports with embedded Q-ODC interface
• Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
• O-Chain allows multiple redundant network rings
• Supports standard IEC 62439-2 MRP *NOTE (Media Redundancy Protocol) function
• Supports IEEE 802.3at compliant PoE and total power budget is 95 Watts with maximum 30Watts per port
• Supports PoE scheduled configuration and PoE auto-ping check function
• Supports IEEE 1588v2 clock synchronization
• Supports IPV6 new internet protocol version
• Supports Modbus TCP protocol
• Supports IEEE 802.3az Energy-Efficient Ethernet technology
• Provides HTTPS/SSH protocol to enhance network security
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Supports Device Binding security function

Genel Bakış (Description)

ORing TGPS-W9082GF-MM-M12X-QS-MV-IP54 is a managed PoE Gigabit Ethernet switch from ORing's Transporter™ series, fully compliant with the EN50155 standard for railway and transportation applications including rolling stock and in-vehicle networks. It features eight 10/100/1000Base-T(X) Power Sourcing Equipment (PSE) ports with PoE output up to 30W per port, two 1000Base-SX Q-ODC fiber uplink ports, and M12 industrial-grade connectors to withstand vibration and shock in harsh environments. Built to IP54 waterproof standards, it operates across a temperature range of −40°C to +75°C. The switch supports O-Ring (recovery time under 30ms over 250 units), O-Chain, MRP, and MSTP (RSTP/STP compatible) redundancy protocols to protect mission-critical applications from network interruptions. Management options include ORing's Open-Vision network management software, web-based interface, Telnet, and CLI console configuration.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• Leading EN50155-compliant Ethernet switch for rolling stock application
• Supports 2 Gigabit fiber ports with embedded Q-ODC interface
• Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
• O-Chain allows multiple redundant network rings
• Supports standard IEC 62439-2 MRP *NOTE (Media Redundancy Protocol) function
• Supports IEEE 802.3at compliant PoE and total power budget is 95 Watts with maximum 30Watts per port
• Supports PoE scheduled configuration and PoE auto-ping check function
• Supports IEEE 1588v2 clock synchronization
• Supports IPV6 new internet protocol version
• Supports Modbus TCP protocol
• Supports IEEE 802.3az Energy-Efficient Ethernet technology
• Provides HTTPS/SSH protocol to enhance network security
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DOS/DDOS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+ and 802.1x User Authentication for security
• Supports 9.6K Bytes Jumbo Frame
• Multiple notifications for warning of an unexpected event
• Web-based, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
• Supports LLDP Protocol
• Wall mounting enabled
• IP-54 housing design
