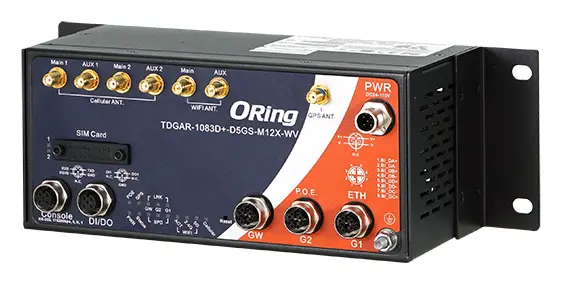

ORing TDGAR-1083D+-D5GS-M12X-WV EN50155 802.11 ac/n 5G Cellular GPS Router ve 3x10/100/1000Base-T(X), M12 konnektör Endüstriyel 5G Router

ORing TDGAR-1083D+-D5GS-M12X-WV – Industrial EN50155 802.11 ac/n 5G Cellular GPS Router with 3x10/100/1000Base-T(X), M12 Connector. Bu ürün ORing Industrial Networking'in Endüstriyel 5G Router ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Güç Tüketimi (Tipik): 25 watts Max.
• Frekans Bandı: America / FCC:; 2.412~2.462 GHz; 5.180~5.240 GHz & 5.745~5.825 GHz; Europe CE / ETSI:; 2.412~2.472 GHz; 5.180~5.240 GHz
• İletim Hızı: IEEE 802.11b: 1/2/5.5/11 Mbps; IEEE 802.11a/g: 6/9/12/18/24/36/48/54 Mbps; IEEE 802.11n: UP to 300 Mbps; IEEE 802.11ac: up to 867Mbps
• Kasa: IP-30
• Çalışma Sıcaklığı: -25 to 70°C (-13 to 158°F)
• Garanti: 5 years

Temel Özellikler (Features)

• Leading EN50155 -compliant wireless access point for rolling stock application
• Provide HNAT enhance LAN to WAN routing performance
• Provide SNAT/PAT/1:1 NAT
• Dual high Speed Air Connectivity: each WLAN interface support IEEE 802.11 ac/g/n up to 867Mbps link speed
• Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
• Support wireless AP/Client mode
• Provide 3x10/100/1000Base-T(X) Ethernet with M12 x-coding
• Supports 5G and LTE Modem dial up
• Support GPS connection
• Secured Management by HTTPs
• Various kind of WAN Connection Type supported: Dynamic/Static IP, PPPoE, Modem Dial Up
• IP table configurable to prevent access from unauthorized IP address
• Support VPN for secured network connection (Open VPN, PPTP VPN)
• 1KV isolation for PoE P.D. port
• Support NAT Setting (Virtual Server, Port Trigger)

Genel Bakış (Description)

TDGAR-1083D+-D5GS-M12X-WV is an EN50155-certified industrial cellular VPN router designed for rolling stock, vehicle, and railway wireless applications. It provides WiFi 5 connectivity with 3 Gigabit Ethernet ports via M12 connectors, ensuring robust and vibration-resistant connections in harsh environments. The router supports three routing modes — Dynamic/Static IP, PPPoE authentication, and cellular modem dial-up — along with GPS function and IEEE 802.3at PoE PD support. Centralized configuration is available via Web interface and CLI.

Tüm özellikler

• Leading EN50155 -compliant wireless access point for rolling stock application
• Provide HNAT enhance LAN to WAN routing performance
• Provide SNAT/PAT/1:1 NAT
• Dual high Speed Air Connectivity: each WLAN interface support IEEE 802.11 ac/g/n up to 867Mbps link speed
• Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
• Support wireless AP/Client mode
• Provide 3x10/100/1000Base-T(X) Ethernet with M12 x-coding
• Supports 5G and LTE Modem dial up
• Support GPS connection
• Secured Management by HTTPs
• Various kind of WAN Connection Type supported: Dynamic/Static IP, PPPoE, Modem Dial Up
• IP table configurable to prevent access from unauthorized IP address
• Support VPN for secured network connection (Open VPN, PPTP VPN)
• 1KV isolation for PoE P.D. port
• Support NAT Setting (Virtual Server, Port Trigger)
• Support DHCP forwarding through PPTP function
• Wireless connecting status monitoring
• Wifi multiple SSID supported
• Event Warning by Syslog, Email, SNMP Trap
• Wall mounting enabled
