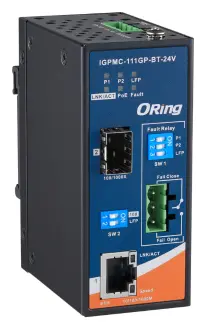

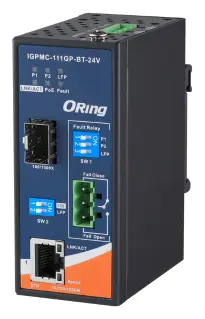

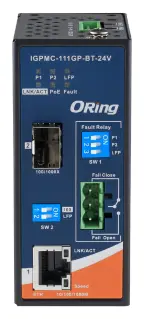

ORing IGPMC-111GP-BT-24V IEEE 802.3bt PoE Medya Dönüştürücü ve 1GE PoE ve 1G SFP socket, 24VDC Endüstriyel PoE Medya Dönüştürücü

ORing IGPMC-111GP-BT-24V – IEEE 802.3bt PoE Media Converter with 1GE PoE and 1G SFP socket, 24VDC. Bu ürün ORing Industrial Networking'in Endüstriyel PoE Medya Dönüştürücü ailesinde yer alır.

Temel Özellikler (Features)

• 1x 10/100/1000Base-T(X) IEEE 802.3bt PoE port, up to 90Watts
• 1x 100/1000Base-X SFP fiber port
• Supports Jumbo Frame up to 10K Bytes
• Supports LFP (Link Fault Pass-through) function
• Relay output to carry capacity of 1A at 24 VDC for warning system
• Provides DIP-Switch to setting function
• Rigid IP-30 housing design
• DIN-Rail and wall mounting enabled

Genel Bakış (Description)

ORing IGPMC-111GP-BT-24V is an industrial IEEE 802.3bt Ethernet-to-fiber PoE media converter featuring one 10/100/1000Base-T(X) port and one 100/1000Base-X SFP port, extending communication distance over optical fiber. It delivers PoE output up to 90W over standard twisted-pair cable to remote powered devices. The converter supports Link Fault Pass-through (LFP), which can be enabled via DIP switch to automatically shut down a link when the opposite side fails, allowing application software to respond accordingly. It accepts dual 12~57VDC power inputs and operates across a temperature range of −40°C to +75°C.
