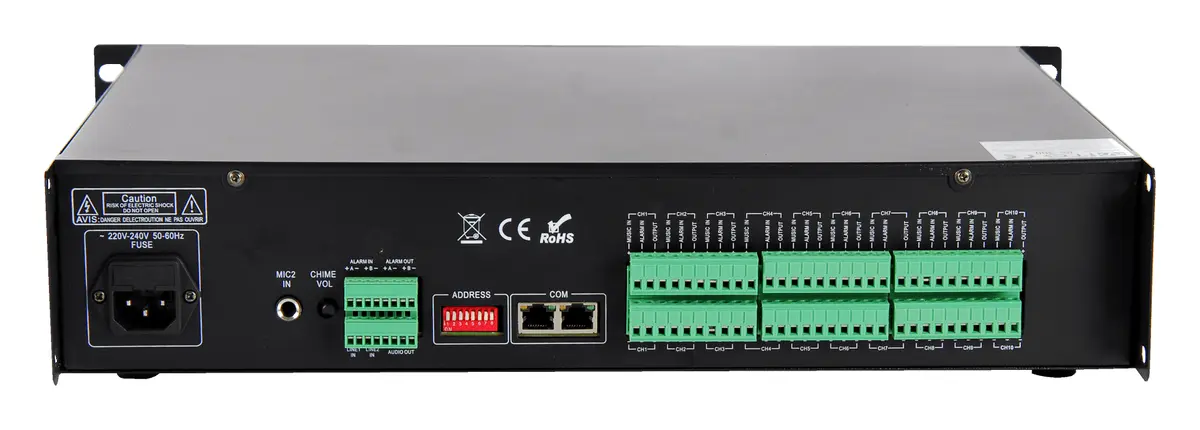

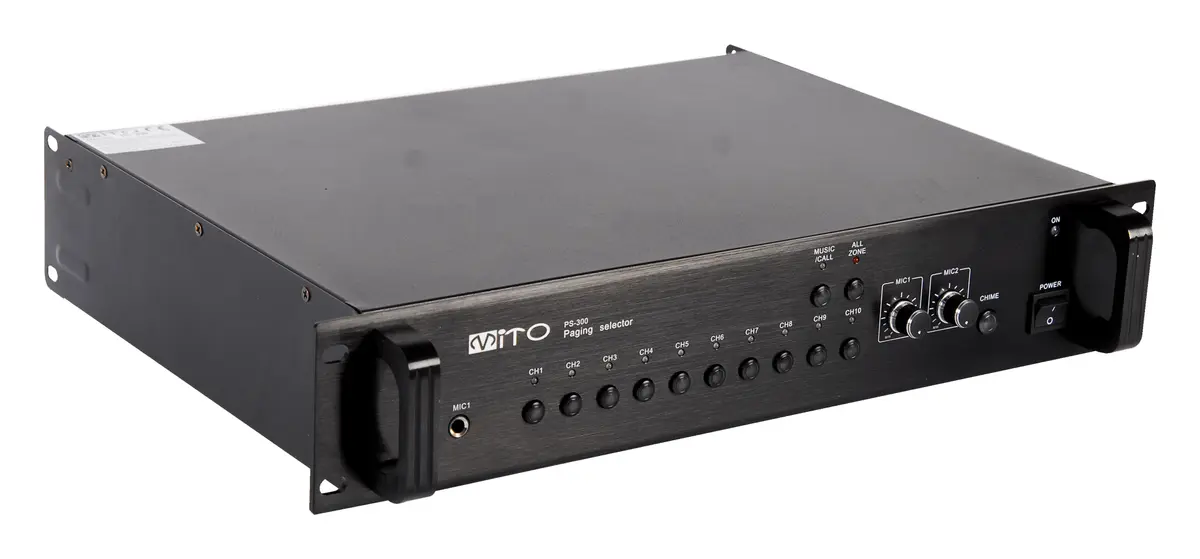

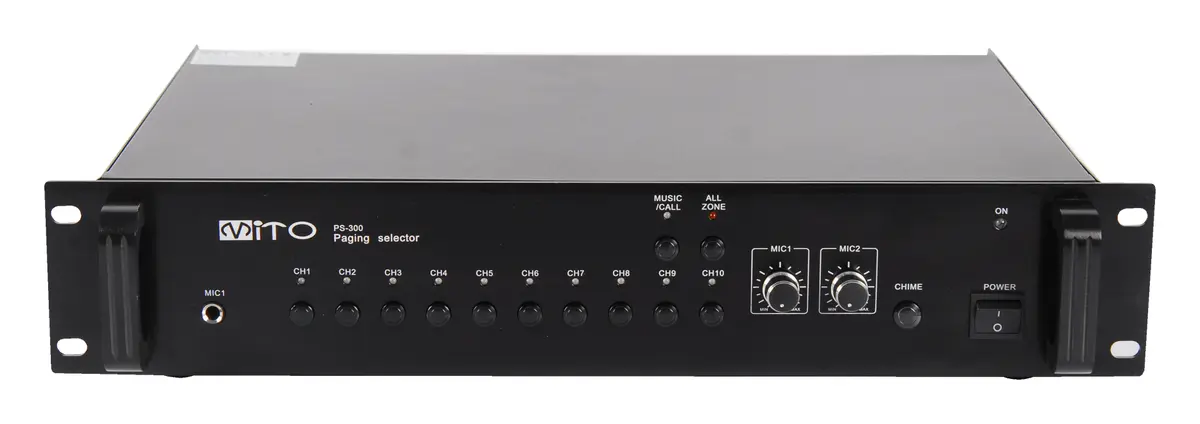

Mito PS 300 10 Bölgeli Bölge Seçici / Anons Kontrol Ünitesi

2 channels 10 zones amplifier inputs(A channel for BGM amplifier and B channel for EMC/paging amplifier), in this way, the other zone’s music system will not be interrupted when some zone is selected for paging.

2 flexible amplifier connections: either 20 amplifiers wiring(10 BGM amps and 10 EMC/paging amps, there must be one of BGM amp and EMC/paging amp as one channel) and each of the 10 amps severs as one zone or 2 amplifiers wiring (1 BGM amp and 1 EMC/paging amp) and one amplifier divides into 10 zones.

3 levels of input priority from high to low: EMC input, Mic1, remote paging console (equivalent priority with built-in chime).

• Built-in 10 zone selector and paging selector, which can be expanded to 300 zones.
• Work together with remote paging console for paging and control over 10 zones.
• Individual zone, group zones, 10 zones and all zones paging through remote paging console.
• With memory function when power off, it can realize the restoration after electricity is turn on.
• Each zone power capacity is 500W, and the total ten zones capacity is 5000W.
• 10 zone speaker output terminals.
• All zone alarm in (A/B 2 channels) and all zone alarm output (A/B 2 channels).
• Two-color zones status indicators accurately indicate music, paging or alarm status.
• Mic 1-2 inputs, line 1-2 inputs, audio output.
• Built-in chime, chime volume and trigger are provided.
• Zone 1-10 selector, music/paging switch and all zone selector with are equipped with indicators.
• Volume control over Mic 1-2 are provided.
• 2 RJ45 communication ports for paging console or cascade another paging controller.
• Dip switch as ID address to be distinguished by controller or paging console.
• Communication Speed. 4800 bps

Tüm özellikler

• Built-in 10 zone selector and paging selector, which can be expanded to 300 zones.
• Work together with remote paging console for paging and control over 10 zones.
• Individual zone, group zones, 10 zones and all zones paging through remote paging console.
• With memory function when power off, it can realize the restoration after electricity is turn on.
• Each zone power capacity is 500W, and the total ten zones capacity is 5000W.
• 10 zone speaker output terminals.
• All zone alarm in (A/B 2 channels) and all zone alarm output (A/B 2 channels).
• Two-color zones status indicators accurately indicate music, paging or alarm status.
• Mic 1-2 inputs, line 1-2 inputs, audio output.
• Built-in chime, chime volume and trigger are provided.
• Zone 1-10 selector, music/paging switch and all zone selector with are equipped with indicators.
• Volume control over Mic 1-2 are provided.
• 2 RJ45 communication ports for paging console or cascade another paging controller.
• Dip switch as ID address to be distinguished by controller or paging console.
• Communication Speed. 4800 bps
