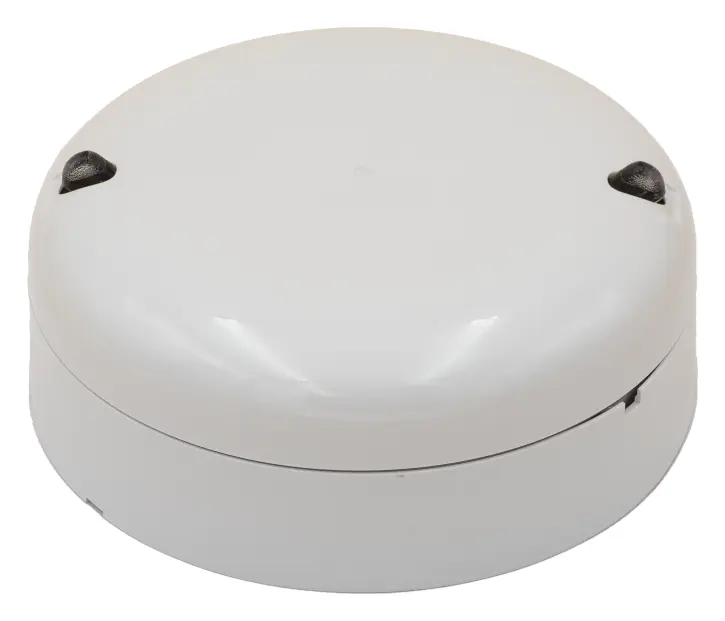

Honeywell System Sensor M200G-RF Kablosuz Ağ Geçidi

Honeywell System Sensor M200G-RF, System Sensor Agile Gateway ailesine ait kablosuz ağ geçidi.

• Döner anahtarlarla adresleme
• Kablosuz (radyo) haberleşme
• Yedekli (redundant) yapı
• Loop beslemeli / loop bağlantılı

The Agile™ Wireless Gateway forms part of the Agile range of products that cover a wide range of applications where wiring is undesired, connecting the Agile range of products into System Sensor protocol loops.

The Agile™ Wireless Fire Detection System is a newly designed platform of wireless fire devices suitable for all applications where wired fire devices cannot be installed for economic or aesthetic reasons. The new wireless platform is powered by robust MESH network technology providing REDUNDANT communication paths to each wireless device. This makes the network highly reliable, protecting against broken communication links. All operations for the design, configuration and diagnostics of the systems are greatly simplified thanks to the AgileIQ™ software suite specifically designed to support AGILE through out the whole lifecycle of the product.

Features

• Mesh multiple communication paths for increased reliability
• 18RF channels at 868MHz – provides greater tolerance to interference
• 2 integrated antennas on each wireless fire device – easier positioning of devices
• Up to 400m free air communication range – providing good coverage levels
• Plug directly on a standard B501AP base – no need for additional wiring
• Addresses set using rotary switches – reduced commissioning time
• Tamper-resist locking mechanism to prevent unauthorised removal of device from its base
• Wired fire devices look and feel – easier installation and visual integration
• Loop powered Gateway – reduced installation cost and time
• Up to 8 Gateways per loop
• Up to 32 Wireless devices per Gateway
• Agile IQ 3-in-1 software for easy design, configuration and diagnostics

Nerelerde kullanılır?

Konut, ofis, otel ve endüstriyel alanlarda yangının ilk belirtilerini algılamak için tavana monte edilir.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Döner anahtarlarla adresleme
• Kablosuz (radyo) haberleşme
• Yedekli (redundant) yapı
• Loop beslemeli / loop bağlantılı
• Mesh multiple communication paths for increased reliability
• 18RF channels at 868MHz – provides greater tolerance to interference
• 2 integrated antennas on each wireless fire device – easier positioning of devices
• Up to 400m free air communication range – providing good coverage levels
• Plug directly on a standard B501AP base – no need for additional wiring
• Addresses set using rotary switches – reduced commissioning time
• Tamper-resist locking mechanism to prevent unauthorised removal of device from its base
• Wired fire devices look and feel – easier installation and visual integration
• Loop powered Gateway – reduced installation cost and time
• Up to 8 Gateways per loop
• Up to 32 Wireless devices per Gateway
• Agile IQ 3-in-1 software for easy design, configuration and diagnostics
