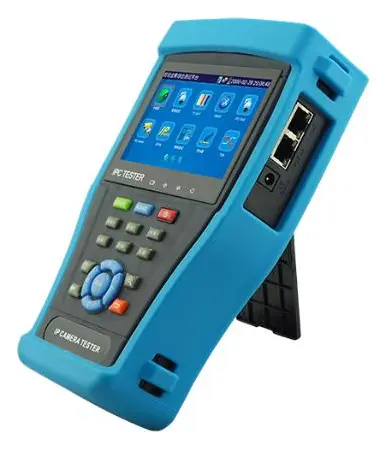

Hikvision IPC-4300H CCTV Test Cihazı

ModelIPC-4300H

Hikvision IPC-4300H CCTV test cihazı: Camera Tester, For Analog&IP Camera, Support 4K, Support TVI, CVI, AHD, and CVBS.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Camera Tester
For Analog&IP Camera
Support 4K
Support TVI, CVI, AHD, and CVBS

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Parametreler 21 satır

Ekran	4.3 inch IPS LCD test monitor with touch screen , resolution 800（RGB）x 480
Ağ Portu	10/100M auto adapt, RJ45
Wi-Fi	Built in WIFI, speeds150M, display wireless camera image
IP camera type	ONVIF, Hikvision. Customized welcome
Zoom Image	Support Analog camera and IP camera image zoom /move
Snapshot,Video record and playback	Image Screen snapshot, record , save , view and record and play back
12V/2Apower output	Output DC12V/2A power for camera
PoE power output	48V PoE power output, Max power 24W
Audio test	1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
PTZ control	Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
color bar generator	Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green , blue, white and black color )
UTP Cable tester	Test UTP cable connection status and display on the screen. Read the number on the screen
Data monitor	Captures and analyzes the command data from controlling device, also can send hexadecimal
Network test	IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address
Operation setting	Capacitive touch screen, OSD menu, Chinese/English
Auto off	5-30 (mins)
IP discovery	auto-scan the whole network segment camera IP
Rapid ONVIF	search camera quickly, auto log in and display image from the camera, activate Hikvision camera
Hik test tool	activate Hikvision camera, Camera image test, support modify IP, user name and password etc parameters .
HD TVI camera test	Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable
CVBS Video Signal test	1 channel Video IN BNC input,1 channel Video OUT BNC output, support PAL/NTSC

Güç 3 satır

External power supply	DC 12V（2A）
Pil	Built-in 7.4V Lithium polymer battery , 5000mAh
Rechargeable	After charging 7~8 hours, normal working time 16 hours

Genel 3 satır

Çalışma Sıcaklığı	-10℃---+50℃
Çalışma Nemi	30%-90%
Dimension/Weight	212mm×135.5mm×56.5mm / 0.75Kg

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · IPC-4300H

Sık sorulanlar

IPC-4300H hakkında kısa yanıtlar.

IPC-4300H fiyatı ne kadar?

IPC-4300H için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
