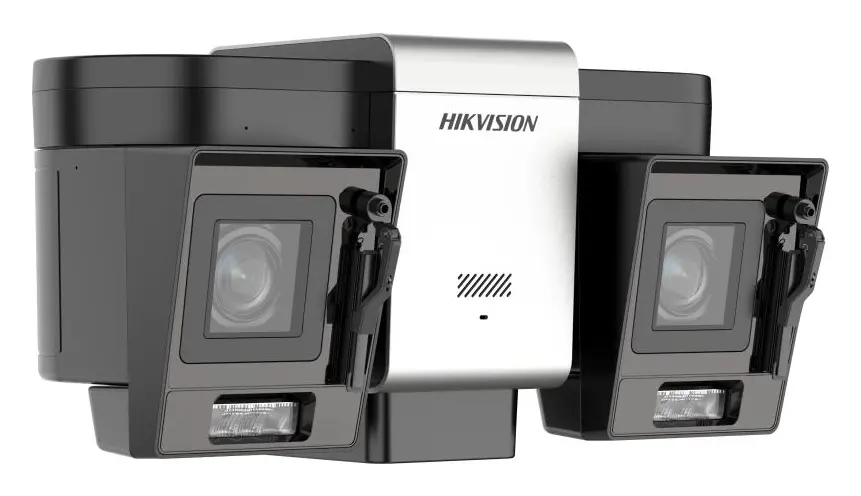

Hikvision IDS-2CD8V886G0/X2-XZHS(Y) 8 MP DeepinView IP Panoramik Kamera — görsel 3

1 / 3

Panoramik & Fisheye Kamera DeepinView

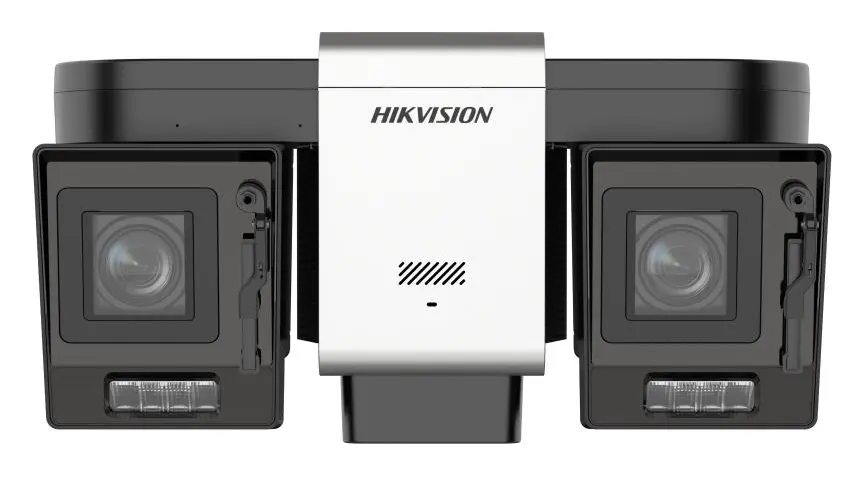

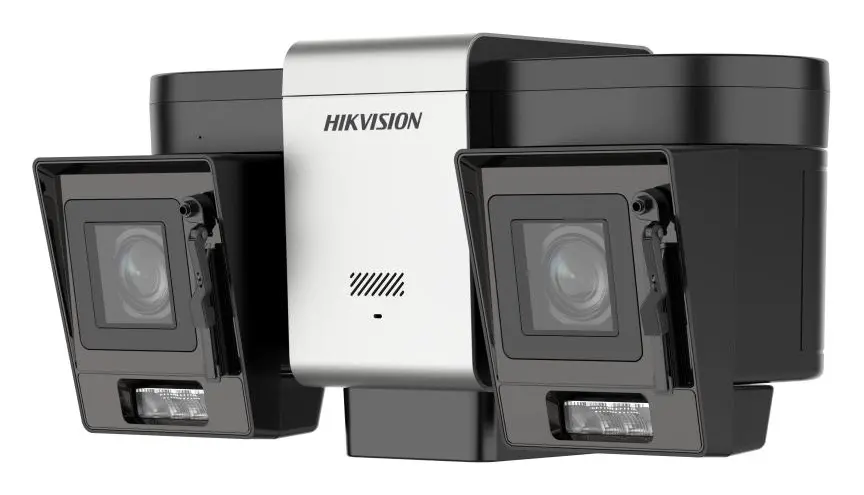

Hikvision IDS-2CD8V886G0/X2-XZHS(Y) 8 MP DeepinView IP Panoramik Kamera

ModelIDS-2CD8V886G0/X2-XZHS(Y)

Hikvision IDS-2CD8V886G0/X2-XZHS(Y), 8 MP çözünürlüklü, 10–50 mm motorize lensli bir panoramik kameradır. Kızılötesi aydınlatmayla karanlıkta 100 metreye kadar görüş sağlar. DeepinView teknolojisiyle insan ve araç hareketlerini ayırt ederek yanlış alarmları azaltır. IP67 su ve toz koruması ile dış ortam kurulumlarına uygundur. Dahili mikrofonuyla sesli kayıt yapabilir.

Sinyal tipi: IP
Çözünürlük: 8 MP (4K)
Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP67
Lens: Motorize
Teknoloji: DeepinView, DarkFighter

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Excellent low-light performance via DarkFighter2.0 technology
Intelligent functions based on deep learning in various scenarios
High quality imaging with 8 MP resolution in channel 1/2
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Adopt 2-channel design with motorized PT, pan -10° to 190°, tilt -5° to 25°
Built-in power meter for historical power statistics
Support wiper for window cleaning and built-in heater to ensure clear image

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 6 satır

Görüntü Sensörü	Channel 1: 1/1.8" Progressive Scan CMOS; Channel 2: 1/1.8" Progressive Scan CMOS
Maks. Çözünürlük	Channel 1: 3840 × 2160; Channel 2: 3840 × 2160
Min. Aydınlatma	Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light; B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR; Channel 2: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light; B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Enstantane Süresi	1 s to 1/100,000 s
Gece/Gündüz	Channel 1: IR cut filter, Blue glass module to reduce ghost phenomenon; Channel 2: IR cut filter, Blue glass module to reduce ghost phenomenon
Açı Ayarı	Channel 1: Pan: -10° to 190°, tilt: -5° to 25°; Channel 2: Pan: -10° to 190°, tilt: -5° to 25°

Lens 7 satır

Lens Tipi	Channel 1: Varifocal lens, 10 to 50 mm; Channel 2: Varifocal lens, 10 to 50 mm
Odak Uzaklığı ve Görüş Açısı	Channel 1: 10 to 50 mm, horizontal FOV 40.8° to 9.1°, vertical FOV 22.7° to 5.2°, diagonal FOV 47.1° to 10.4°; Channel 2: 10 to 50 mm, horizontal FOV 40.8° to 9.1°, vertical FOV 22.7° to 5.2°, diagonal FOV 47.1° to 10.4°
Odak	Auto, Semi-auto, Manual
Min. Odaklanma Mesafesi	1.5 m
İris Tipi	DC iris
Diyafram	Channel 1: F1.6; Channel 2: F1.6
Alan Derinliği	Channel 1: 3.1 m to ∞; Channel 2: 3.1 m to ∞

PTZ 4 satır

Hareket Aralığı (Pan)	Channel 1/Channel 2: Pan: -10° to 190°
Hareket Aralığı (Tilt)	Channel 1/Channel 2: Tilt: -5° to 25°
Pan Hızı	Pan speed: configurable from 0.1° to 5°/s, preset speed: 2.5°/s
Tilt Hızı	Tilt speed: configurable from 0.1° to 5°/s, preset speed 2.5°/s

Piksel Yoğunluğu (DORI) 1 satır

DORI	Wide: D: 218 m, O: 86.5 m, R: 43.6 m, I: 21.8 m; Tele: D: 922 m, O: 365.9 m, R: 184.4 m, I: 92.2 m

Aydınlatma 5 satır

Aydınlatma Tipi	IR, White Light, Hybrid (IR and White Light)
Aydınlatma Mesafesi	Up to 100 m
Aydınlatıcı Sayısı	10
Akıllı Aydınlatma	Evet
IR Dalga Boyu	850 nm

Video 11 satır

Ana Akış	Channel 1 & Channel 2: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Alt Akış	Channel 1 & Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Üçüncü Akış	Channel 1 & Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Sıkıştırma	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
Video Bit Hızı	32 Kbps to 16 Mbps
H.264 Tipi	Baseline Profile, High Profile, Main Profile
H.265 Tipi	Main Profile
Bit Hızı Kontrolü	CBR, VBR
Ölçeklenebilir Video Kodlama (SVC)	H.264 and H.265 encoding
İlgi Bölgesi (ROI)	4 fixed regions for each stream
Hedef Kırpma	Evet

Ses 5 satır

Ses Tipi	Mono sound
Ses Sıkıştırma	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Ses Bit Hızı	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 48 Kbps (PCM)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Ses Örnekleme Hızı	8 kHz/16 kHz/32 kHz/48 kHz
Ortam Gürültüsü Filtreleme	Evet

Ağ 8 satır

Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
Eşzamanlı Canlı İzleme	Up to 20 channels
API	ONVIF (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
Kullanıcı/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Güvenlik	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Ağ Depolama	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), CVR, NVR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
İstemci	iVMS-4200, Hik-Connect
Web Tarayıcı	Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 13+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Görüntü 7 satır

Görüntü Parametresi Geçişi	Evet
Görüntü Ayarları	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, AGC, adjustable by client software or web browser
Gece/Gündüz Geçişi	Day, Night, Auto, Schedule, Alarm Trigger
Geniş Dinamik Aralık (WDR)	140 dB
Görüntü İyileştirme	BLC, HLC,3D DNR, Distortion Correction
Mahremiyet Maskesi	8 programmable polygon privacy masks
Görüntü Bindirme	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Uydu Konumlandırma 1 satır

Uydu Konumlandırma Algılama	GPS

Arayüz 9 satır

Ethernet Arayüzü	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Dahili Depolama	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Dahili Mikrofon	Yes, 2 built-in microphones
Dahili Hoparlör	Yes, 1 built-in speaker, Max. power consumption: 3 W, max. sound pressure level: 10 cm: 95 dB.
Ses	2 inputs (line in), 1 output (line out), 3.5 mm connector, 2 channels
Alarm	3 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Tuşu	Evet
Güç Çıkışı	12 VDC, max. 100 mA

Olay 3 satır

Temel Olaylar	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart), alarm input and output, video quality diagnosis, vibration detection
Akıllı Olaylar	Unattended baggage detection, object removal detection, scene change detection, audio exception detection, defocus detection
Bağlantı (Linkage)	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing

Derin Öğrenme Fonksiyonları 10 satır

Çevre Koruma	Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Çoklu Hedef Tipi Algılama	Detects up to 30 targets simultaneously, Supports simultaneous detection and capture of human body, face and vehicle; Gets 7 face features; Gets 13 human body features; Gets 2 vehicle features
Yüz Yakalama	Detects up to 120 faces simultaneously; Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; Uploads face with background and closed-up face pictures
Yüz Karşılaştırma	Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total; Supports face library encryption; Only channel 1 supports
Kuyruk Yönetimi	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 2 detection modes: regional people queuing-up, waiting time detection; Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue; Supports raw data export for further analysis; Supports real-time data uploading and scheduled data uploading; Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less th
Isı Haritası	A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.; Two report types are available, space heat map and time heat map line chart.
Metadata	Intrusion detection, line crossing detection, region entrance detection, region exiting detection, face capture, multi-target-type detection, road traffic
Yol Trafiği ve Araç Algılama	Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.; Support vehicle and non-vehicle counting; Blocklist and allowlist: up to 10,000 records; LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions; Accuracy (Under recommended installation and lighting conditions): License plate recogniti
Bölgesel Kişi Sayma	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection; Supports parameter settings: alarm times per exception, alarm interval, first alarm delay; Supports searching real-time number of people; People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading; Number of people exception de
Görev Başında/Dışında Algılama	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 2 detection modes: absence detection, on/off duty detection; Supports parameter settings: person on duty, absence duration

Genel 14 satır

Güç	36 VDC ± 20%, 1.18 A, max. 42.35 W, two-core terminal block
Malzeme	Plastics and metal
Boyutlar	382.3 mm × 193.6 mm × 201.5 mm (15.1" × 7.6" × 7.9")
Paket Boyutları	490 mm × 280 mm × 343 mm (19.3" × 11" × 13.5")
Ağırlık	Approx. 4795 g (10.6 lb.)
Paketli Ağırlık	Approx. 6760 g (14.9 lb.)
Depolama Koşulları	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Başlangıç ve Çalışma Koşulları	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Dil	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Genel Fonksiyonlar	Heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, anti-banding
Isıtıcı	Evet
Silecek	Evet
Buğu Giderme	Evet
Flaşör Işık	White Light

Onaylar 6 satır

EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
Güvenlik	CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005; LOA: IEC/EN 60950-1
Çevre	CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Koruma	IP67: IEC 60529-2013
Korozyon Koruması	-Y: NEMA 4X (NEMA 250-2018)
Diğer	PVC FREE

Genel bakış

Hikvision IDS-2CD8V886G0/X2-XZHS(Y) kullanım alanları ve özellikleri.

Hikvision IDS-2CD8V886G0/X2-XZHS(Y), 8 MP çözünürlük, 10–50 mm varifocal lens, 100 m gece görüş mesafesi ve IP67 koruma sunan bir IP Panoramik Kamera modelidir. DeepinView serisi gelişmiş derin öğrenme analizleri sunar.

8MP DeepinView Dual-Lens Omni Camera

Excellent low-light performance via DarkFighter2.0 technology
Intelligent functions based on deep learning in various scenarios
High quality imaging with 8 MP resolution in channel 1/2
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Adopt 2-channel design with motorized PT, pan -10° to 190°, tilt -5° to 25°
Built-in power meter for historical power statistics
Support wiper for window cleaning and built-in heater to ensure clear image
Water and dust resistant (IP67) and corrosion resistant (NEMA 4X)

Nerelerde kullanılır?

Mağaza katı, lobi, depo ve kavşak gibi geniş alanları tek cihazla kör nokta bırakmadan izlemek için tasarlanmıştır.

Kurulum ve uyumluluk

IDS-2CD8V886G0/X2-XZHS(Y) PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Tüm özellikler

Excellent low-light performance via DarkFighter2.0 technology
Intelligent functions based on deep learning in various scenarios
High quality imaging with 8 MP resolution in channel 1/2
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Adopt 2-channel design with motorized PT, pan -10° to 190°, tilt -5° to 25°
Built-in power meter for historical power statistics
Support wiper for window cleaning and built-in heater to ensure clear image
Water and dust resistant (IP67) and corrosion resistant (NEMA 4X)

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Hızlı Başlangıç KılavuzuPDF · IDS-2CD8V886G0/X2-XZHS(Y) Kullanım KılavuzuPDF · IDS-2CD8V886G0/X2-XZHS(Y) Firmware (V5.10.0_260423) - indirme sayfasıPDF · IDS-2CD8V886G0/X2-XZHS(Y)

Sık sorulanlar

IDS-2CD8V886G0/X2-XZHS(Y) hakkında kısa yanıtlar.

IDS-2CD8V886G0/X2-XZHS(Y) gece görüş mesafesi kaç metre?

IDS-2CD8V886G0/X2-XZHS(Y), IR aydınlatmayla yaklaşık 100 metreye kadar gece görüşü sağlar. Gerçek mesafe ortam ışığına ve yansıtıcı yüzeylere göre değişebilir.

IDS-2CD8V886G0/X2-XZHS(Y) dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır.

IDS-2CD8V886G0/X2-XZHS(Y) hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

IDS-2CD8V886G0/X2-XZHS(Y) kaç megapiksel?

IDS-2CD8V886G0/X2-XZHS(Y) 8 MP çözünürlüğe sahiptir ve 10–50 mm lens kullanır.

IDS-2CD8V886G0/X2-XZHS(Y) fiyatı ne kadar?

IDS-2CD8V886G0/X2-XZHS(Y) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
