IP Bullet Kamera DeepinView

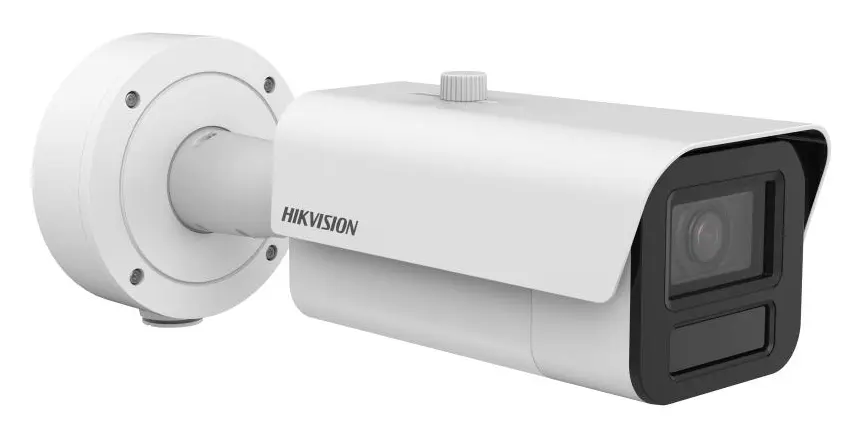

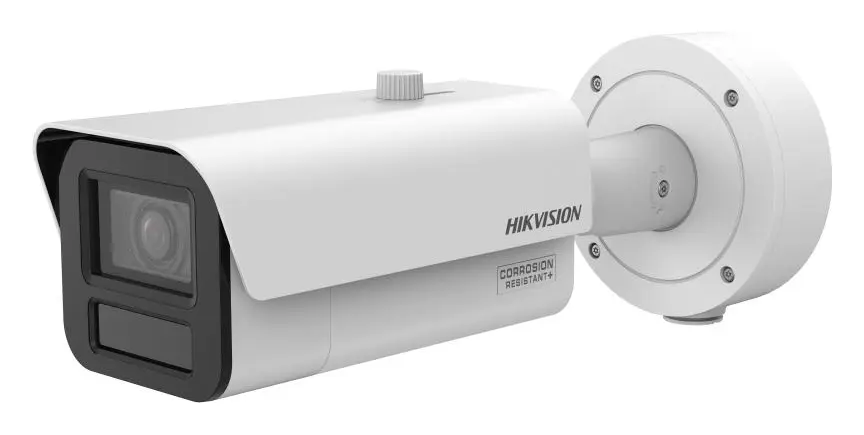

Hikvision IDS-2CD7A86G2/LM-IZHS(B) 8 MP DeepinView Varifocal IP Bullet Kamera

ModelIDS-2CD7A86G2/LM-IZHS(B)

Hikvision IDS-2CD7A86G2/LM-IZHS(B), 8 MP çözünürlüklü, 2.8–12 mm değişken odaklı lensli bir IP bullet kameradır. Kızılötesi aydınlatmayla karanlıkta 60 metreye kadar görüş sağlar. DeepinView teknolojisiyle insan ve araç hareketlerini ayırt ederek yanlış alarmları azaltır. IP67 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur. Dahili mikrofonuyla sesli kayıt yapabilir.

Sinyal tipi: IP
Çözünürlük: 8 MP (4K)
Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP67
Lens: Varifocal
Teknoloji: DeepinView, DarkFighter

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High quality imaging with 8 MP resolution
Excellent low-light performance via DarkFighter2.0 technology
Clear imaging against strong back light due to 140 dB AWDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
Built-in heater to ensure clear image under rainy or snowy weather
Supports Guanlan large model algorithms, license plate recognition, vehicle attribute analysis, perimeter protection, AIOP with built-in PPE detection model
Capable of loading trained large model algorithm packages from the AI training platform

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 5 satır

Görüntü Sensörü	1/1.8" Progressive Scan CMOS
Maks. Çözünürlük	3840 × 2160
Min. Aydınlatma	Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
Enstantane Süresi	1 s to 1/100,000 s
Gece/Gündüz	IR cut filter; Blue glass module (less ghost phenomenon)

Lens 4 satır

Odak Uzaklığı ve Görüş Açısı	2.8 to 12 mm, horizontal FOV 112.0° to 47.5°, vertical FOV 58.0° to 26.6°, diagonal FOV 137.5° to 54.6°; 8 to 32 mm, horizontal FOV 41.8° to 15.0°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°
Odak	Auto, Semi-auto, Manual
İris Tipi	P-iris
Diyafram	2.8 to 12 mm: F1.4 to F2.1; 8 to 32 mm: F1.7 to F1.7

Piksel Yoğunluğu (DORI) 1 satır

OODPCVS	Wide: 2.8 to 12 mm: Overview: 110.0 m, Outline: 55.0 m, Discern: 27.5 m, Perceive: 17.6 m, Characterize: 8.8 m, Validate: 4.4 m, Scrutinize: 1.5 m; 8 to 32 mm: Overview: 272.5 m, Outline: 136.3 m, Discern: 68.1 m, Perceive: 43.6 m, Characterize: 21.8 m, Validate: 10.9 m, Scrutinize: 3.6 m; Tele: 2.8 to 12 mm: Overview: 232.5 m, Outline: 116.3 m, Discern: 58.1 m, Perceive: 37.2 m, Characterize: 18.6 m, Validate: 9.3 m, Scrutinize: 3.1 m; 8 to 32 mm: Overview: 725.0 m, Outline: 362.5 m, Discern: 1

OODPCVS

Wide: 2.8 to 12 mm: Overview: 110.0 m, Outline: 55.0 m, Discern: 27.5 m, Perceive: 17.6 m, Characterize: 8.8 m, Validate: 4.4 m, Scrutinize: 1.5 m; 8 to 32 mm: Overview: 272.5 m, Outline: 136.3 m, Discern: 68.1 m, Perceive: 43.6 m, Characterize: 21.8 m, Validate: 10.9 m, Scrutinize: 3.6 m; Tele: 2.8 to 12 mm: Overview: 232.5 m, Outline: 116.3 m, Discern: 58.1 m, Perceive: 37.2 m, Characterize: 18.6 m, Validate: 9.3 m, Scrutinize: 3.1 m; 8 to 32 mm: Overview: 725.0 m, Outline: 362.5 m, Discern: 1

Aydınlatma 4 satır

Aydınlatma Tipi	IR
Aydınlatma Mesafesi	2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m
Akıllı Aydınlatma	Evet
IR Dalga Boyu	850 nm

AI Açık Platform 1 satır

Model Özellikleri	1. Up to 3 models. Model type: detection model, classification model, mixed model (detection model and classification model).; 2. Supports video analysis (detection, classification, mixed, OCR, segmentation, comparison) and scheduled capture analysis (classification).; (1) Detection: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule, area overlap ratio counting, area overlap ra

Model Özellikleri

1. Up to 3 models. Model type: detection model, classification model, mixed model (detection model and classification model).; 2. Supports video analysis (detection, classification, mixed, OCR, segmentation, comparison) and scheduled capture analysis (classification).; (1) Detection: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule, area overlap ratio counting, area overlap ra

Video 13 satır

Ana Akış	50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Alt Akış	50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Üçüncü Akış	50 Hz:25 fps(1920 × 1080,1280 × 720,704 × 576,640 × 480); 60 Hz:30 fps(1920 × 1080,1280 × 720,704 × 480,640 × 480)
Video Sıkıştırma	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
Video Bit Hızı	32 Kbps to 16 Mbps
H.264 Tipi	Baseline Profile, Main Profile, High Profile
H.265 Tipi	Main Profile
Bit Hızı Kontrolü	CBR, VBR
Ölçeklenebilir Video Kodlama (SVC)	H.264 and H.265 encoding
İlgi Bölgesi (ROI)	4 fixed regions for each stream
Hedef Kırpma	Evet
e-PTZ	Support Patrol and Auto Tracking settings
AI Kodlama	Evet

Ses 5 satır

Ses Tipi	Mono sound
Ses Sıkıştırma	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Ses Bit Hızı	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Ses Örnekleme Hızı	8 kHz/16 kHz/32 kHz/48 kHz
Ortam Gürültüsü Filtreleme	Evet

Ağ 8 satır

Protokoller	IPv6, RTP, ICMP, PPPoE, DNS, WebSocket, TCP/IP, SSL/TLS, HTTPS, RTSP, IGMP, SNMP, NTP, SMTP, WebSockets, SFTP, UPnP, DHCP,802.1X, IPv4, FTP, UDP, QoS, RTCP, HTTP, DDNS
Eşzamanlı Canlı İzleme	Up to 20 channels
API	ISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, Profile G, Profile T, Profile M)
Kullanıcı/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Güvenlik	Password protection, control timeout settings, IP address filter, RTP/RTSP over HTTPS, HTTPS encryption, 802.1X authentication(EAP-LEAP, EAP-TLS, EAP-MD5, EAP-PEAP), complicated password, TLS 1.3, security audit log, basic and digest authentication for HTTP/HTTPS, AES128/256, TLS 1.2, host authentication (MAC address), watermark, WSSE and digest authentication for Open Network Video Interface
Ağ Depolama	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
İstemci	iVMS-4200, Hik-Connect, Hik-Central
Web Tarayıcı	Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Görüntü 10 satır

Görüntü Parametresi Geçişi	Evet
Görüntü Ayarları	Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
Gece/Gündüz Geçişi	Day, Night, Auto, Schedule
Geniş Dinamik Aralık (WDR)	140 dB
Görüntü İyileştirme	BLC, HLC,3D DNR, Distortion Correction, Defog
Mahremiyet Maskesi	8 programmable polygon privacy masks
S/N Oranı	≥ 52 dB
Görüntü Bindirme	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Görüntü Sabitleme	EIS
AI Gürültü Azaltma	Evet

Arayüz 10 satır

Video Çıkışı	1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Arayüzü	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Dahili Depolama	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm	2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Dahili Mikrofon	2 built-in microphones
Ses	1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Dahili Hoparlör	1 built-in speaker, Max. power consumption: 1.5 W
RS-485	Hayır
Reset Tuşu	Evet
Güç Çıkışı	Hayır

Olay 3 satır

Temel Olaylar	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, video quality diagnosis, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error)
Akıllı Olaylar	scene change detection, audio exception detection, defocus detection, unattended baggage detection, loitering detection, object removal detection, people gathering detection, fast moving detection, parking detection
Bağlantı (Linkage)	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning

Derin Öğrenme Fonksiyonları 7 satır

Çoklu Hedef Tipi Algılama	Supports dynamic mosaic mask; Supports ShotN technology; Supports simultaneous detection and capture of human body, face, and vehicle; Gets 7 face features; Gets 13 human body features; Gets 2 vehicle features; Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle; Supports license plate recognition; Supports FBE (Face Beautify Enhance) powered by Guanlan large model algorithm, improving face capture effect.
Yüz Yakalama	Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second; Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; Uploads face with background and closed-up face pictures; Supports best shot and quick shot for capture mode; Supports dynamic mosaic mask; Gets 7 face features; Supports FBE (Face Beautify Enhance) powered by Guanlan large model algorithm, improving face capture effect.;
Yüz Karşılaştırma	Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total, Supports face library encryption
Aktivite Analizi	1. Support People fell down detection and violent motion detection. The two functions can be enabled at the same time and each function supports up to 4 rules.; 2. Support alarm video upload.
Çevre Koruma	Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Support combined event alarm triggering
Metadata	Intrusion detection, line crossing detection, region entrance detection, region exiting detection
Yol Trafiği ve Araç Algılama	Accuracy (under recommended installation and lighting conditions); Capture rate＞98%; Vehicle moving direction recognition accuracy＞96%; Mistaken capture rate＜2% (entrance/exit), ＜5% (checkpoint); Blocklist and allowlist: up to 10000 records; Captures vehicle that has no license plate; Supports license plate recognition of motorcycles (only in checkpoint scenario); Powered by Guanlan large model algorithm, the camera supports detecting vehicle attribute, including vehicle type, color, brand,

Genel 14 satır

Güç	three-core terminal block; 12 VDC ± 20%, 1,97 A, max. 23.6 W; 24 VAC ± 20%, 1.46 A, max. 22.84 W; PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.55 A to 0.42 A, max. 23.6 W
Malzeme	Aluminum alloy body
Boyutlar	Ø144.1 mm × 374.7 mm (Ø5.7" × 14.8")
Paket Boyutları	425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
Ağırlık	Approx. 2280 g (5.03 lb.)
Paketli Ağırlık	Approx. 3364 g (7.42 lb.)
Depolama Koşulları	-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
Başlangıç ve Çalışma Koşulları	-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
Dil	32 languages: English, Traditional Chinese, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Russian, Japanese, Turkish, Korean, Thai, Estonian, Vietnamese, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Lithuanian, Portuguese (Brazil), Ukrainian
Genel Fonksiyonlar	Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
Isıtıcı	Evet
Buğu Giderme	Evet
Cihaz Yönetimi	Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
Entegre Konnektör Paneli	Evet

Onaylar 6 satır

EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015
Güvenlik	CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; LOA: IEC/EN 60950-1
Çevre	CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Koruma	IP67: IEC 60529-2013, IK10: IEC 62262:2002
Korozyon Koruması	Hayır
Diğer	PVC FREE

Genel bakış

Hikvision IDS-2CD7A86G2/LM-IZHS(B) kullanım alanları ve özellikleri.

Hikvision IDS-2CD7A86G2/LM-IZHS(B), 8 MP çözünürlük, 2.8–12 mm varifocal lens, 60 m gece görüş mesafesi ve IP67/IK10 koruma sunan bir IP Bullet Kamera modelidir. DeepinView serisi gelişmiş derin öğrenme analizleri sunar.

8MP DeepinViewX Moto Varifocal Bullet Camera

High quality imaging with 8 MP resolution
Excellent low-light performance via DarkFighter2.0 technology
Clear imaging against strong back light due to 140 dB AWDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
Built-in heater to ensure clear image under rainy or snowy weather
Supports Guanlan large model algorithms, license plate recognition, vehicle attribute analysis, perimeter protection, AIOP with built-in PPE detection model
Capable of loading trained large model algorithm packages from the AI training platform

Nerelerde kullanılır?

Bina çevresi, otopark girişleri, depo cepheleri ve bahçe gibi uzun ve dar alanların izlenmesinde tercih edilir; görünür gövdesi caydırıcılık sağlar.

Kurulum ve uyumluluk

IDS-2CD7A86G2/LM-IZHS(B) PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · IDS-2CD7A86G2/LM-IZHS(B) Kullanım KılavuzuPDF · IDS-2CD7A86G2/LM-IZHS(B) Firmware (V5.9.0_260808) - indirme sayfasıPDF · IDS-2CD7A86G2/LM-IZHS(B)

Sık sorulanlar

IDS-2CD7A86G2/LM-IZHS(B) hakkında kısa yanıtlar.

IDS-2CD7A86G2/LM-IZHS(B) gece görüş mesafesi kaç metre?

IDS-2CD7A86G2/LM-IZHS(B), IR aydınlatmayla yaklaşık 60 metreye kadar gece görüşü sağlar. Gerçek mesafe ortam ışığına ve yansıtıcı yüzeylere göre değişebilir.

IDS-2CD7A86G2/LM-IZHS(B) dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

IDS-2CD7A86G2/LM-IZHS(B) hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

IDS-2CD7A86G2/LM-IZHS(B) kaç megapiksel?

IDS-2CD7A86G2/LM-IZHS(B) 8 MP çözünürlüğe sahiptir ve 2.8–12 mm lens kullanır.

IDS-2CD7A86G2/LM-IZHS(B) fiyatı ne kadar?

IDS-2CD7A86G2/LM-IZHS(B) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
